Home >> BMW >> 2002 >> Z3 Coupe 3.0i (E36/7) L6-3.0L (M54) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 203, 204, 205

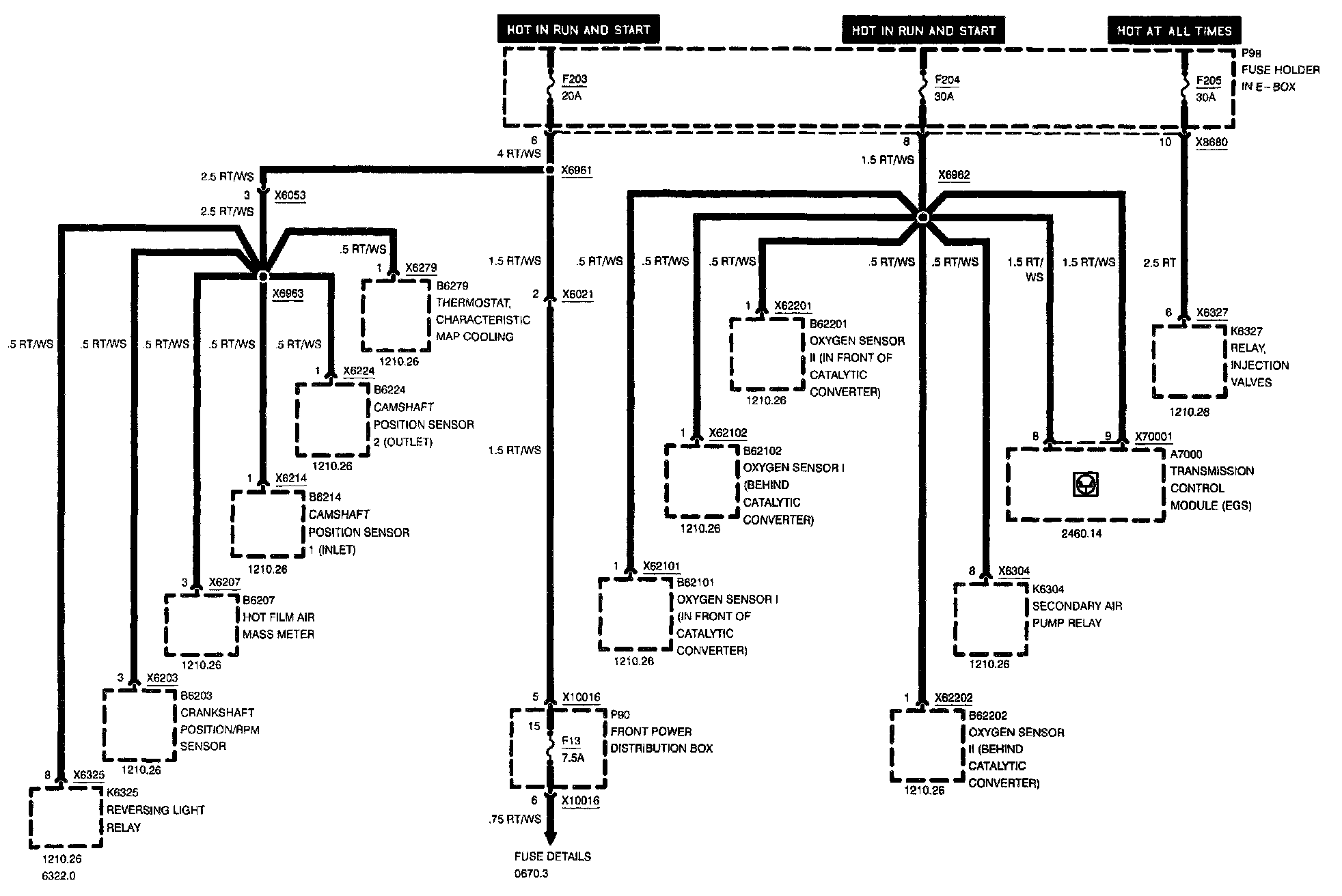

Fuses 203, 204, 205

Fuse Details: Fuses 203, 204, 205:
