Marker Lamp Bulb: Service and Repair

Replacing Light Bulb For Front Left or Right Side-Marker Lights (Z3 US, M Roadster All)

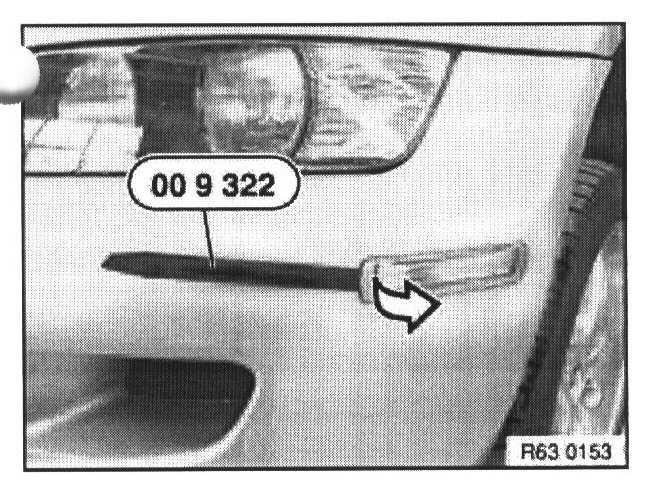

Lever out side-marker lights at front with special tool 00 9 322 (plastic wedge).

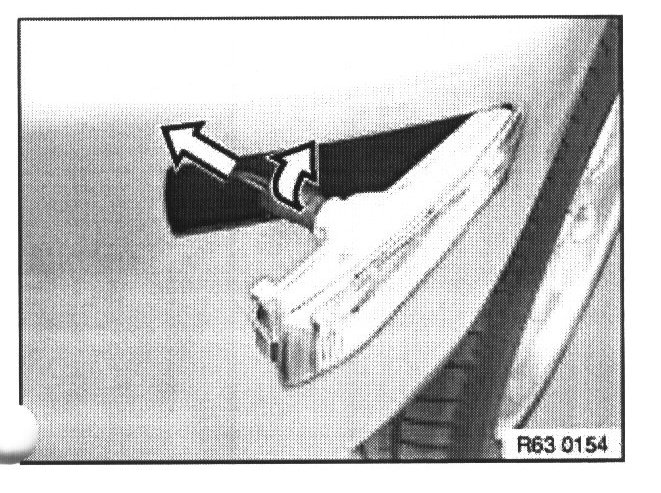

Turn lamp socket by approx. 90 ° and pull out.
Turn light bulb and lift out


Caution! Do not take hold of glass part of bulb with bare fingers. Only take hold of bulb on base or with a clean cloth or packaging of light bulb. Note type of bulb.
