Headlamp Washer Spray Nozzle: Service and Repair

Removing And Installing/Replacing Spray Nozzles For Left Or Right Headlight Cleaning System

Remove foglamp insert.

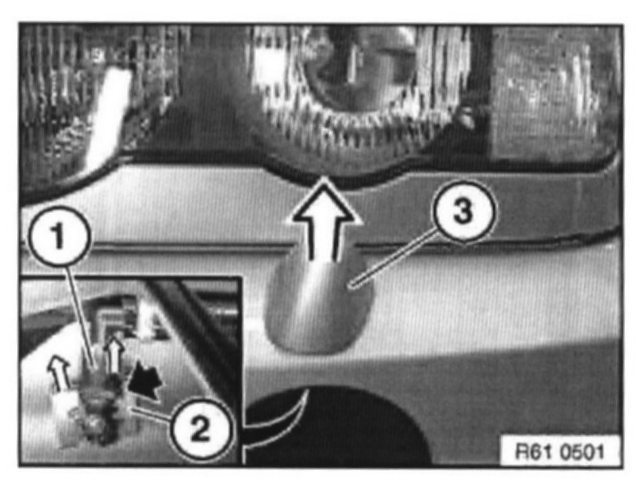

Unlock hose connection (1) and disconnect.
Unlock retainer (2) in direction of arrow and remove.
Pull out spray nozzle of headlight cleaning system (3) in direction of arrow.







Installation Note:

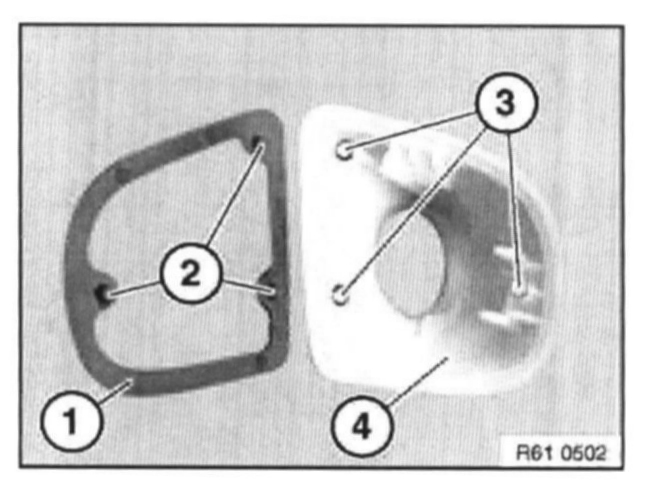

If necessary, replace backing (1).
Guides (2) of backing (1) must be located in openings (3) in trim (4).







NOTE: For purposes of clarity, illustration shows backing removed.


Replacement;

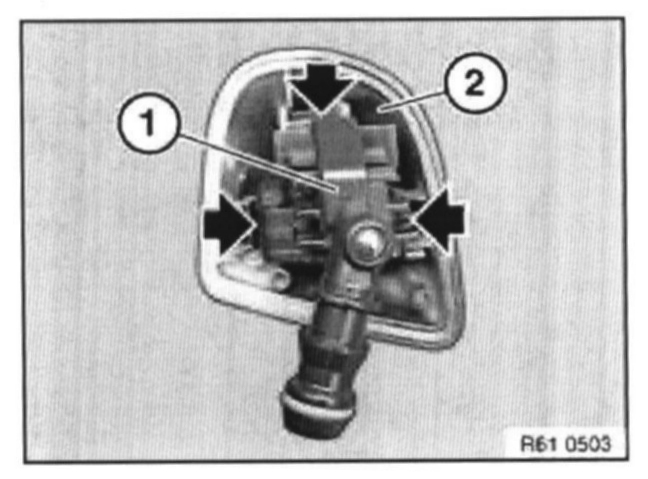

Unclip spray nozzle (1) from trim (2).
