Left Tail Light (As of 09/99 Up to 09/01)
Left Tail Light (As of 09/99 Up to 09/01)

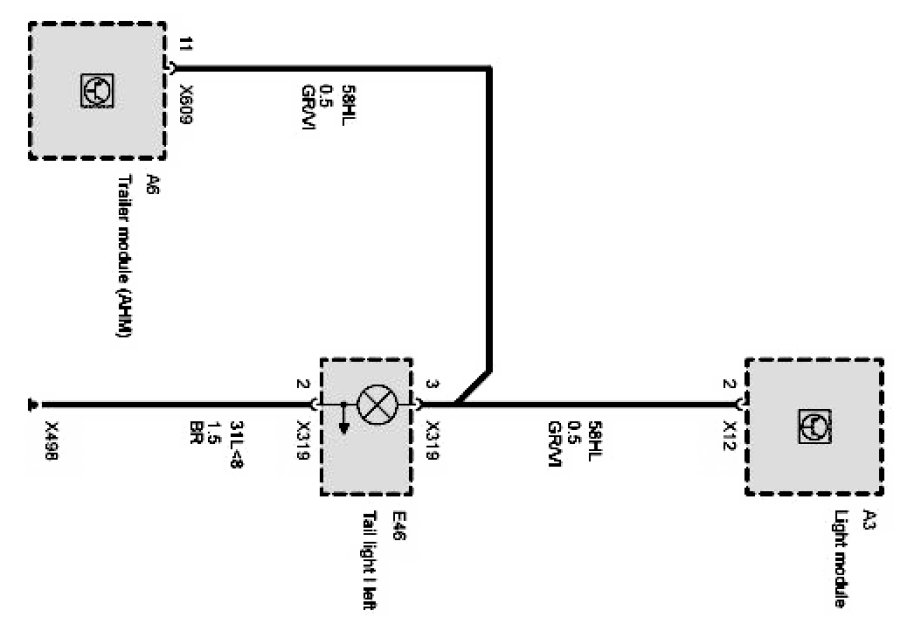

E53 Left tail light Part 1 Of 1:
