Radio (Top Hi-FI System (Harman&Kardon) With TEL Telephone Interface With BM on-Board Monitor As of 09/00 Up to 09/01)

E53 Radio Part 1 Of 6:

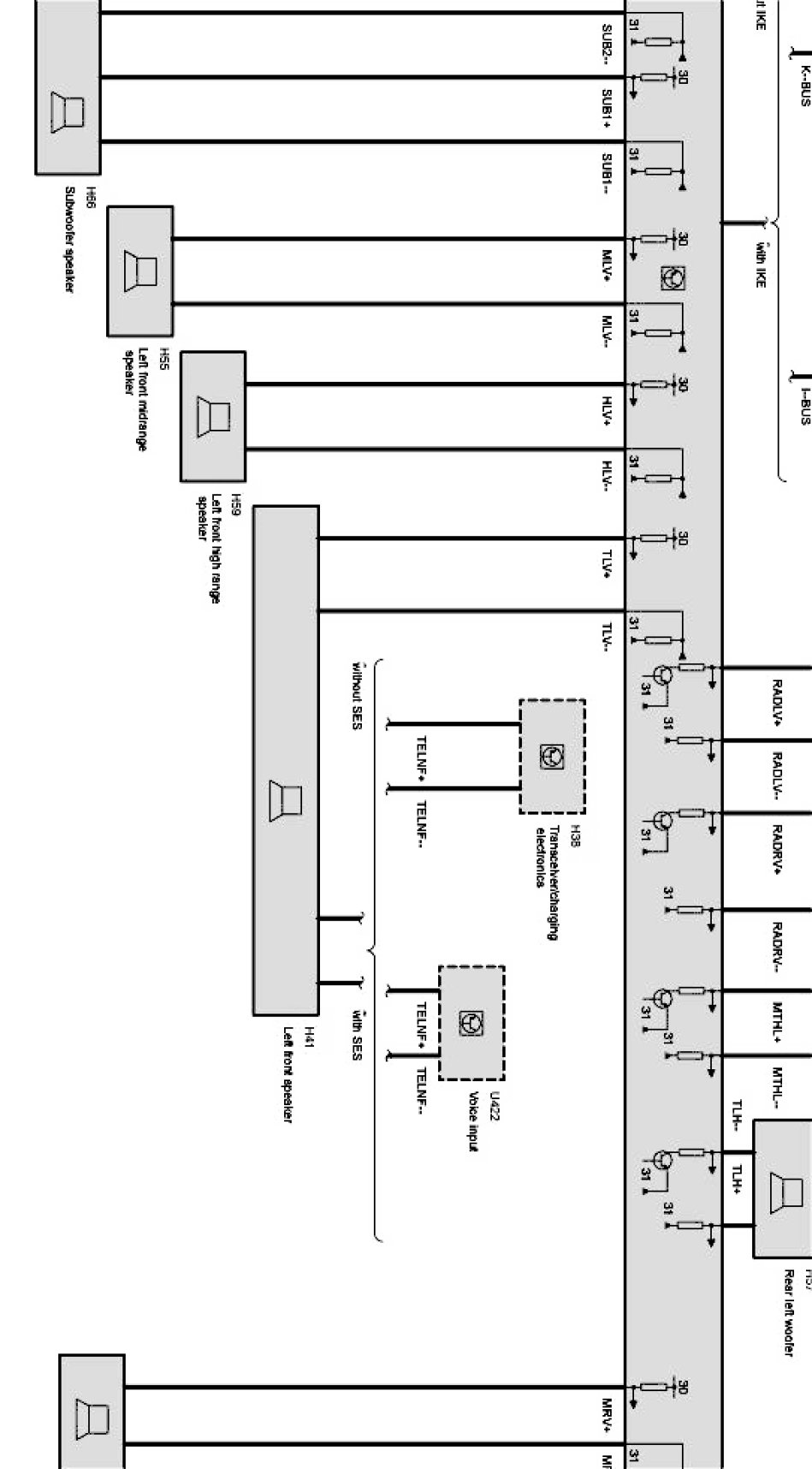

E53 Radio Part 2 Of 6:

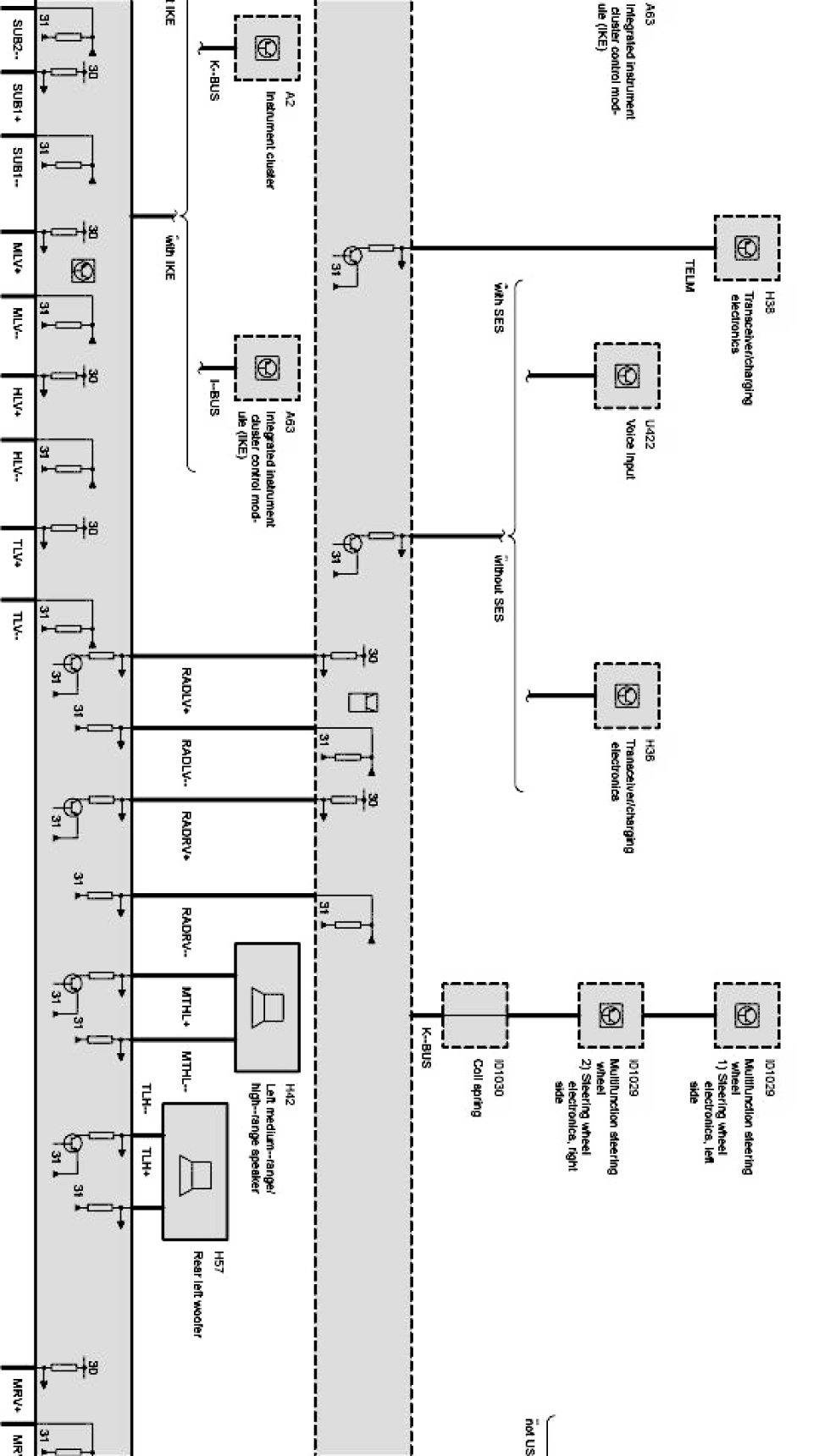

E53 Radio Part 3 Of 6:

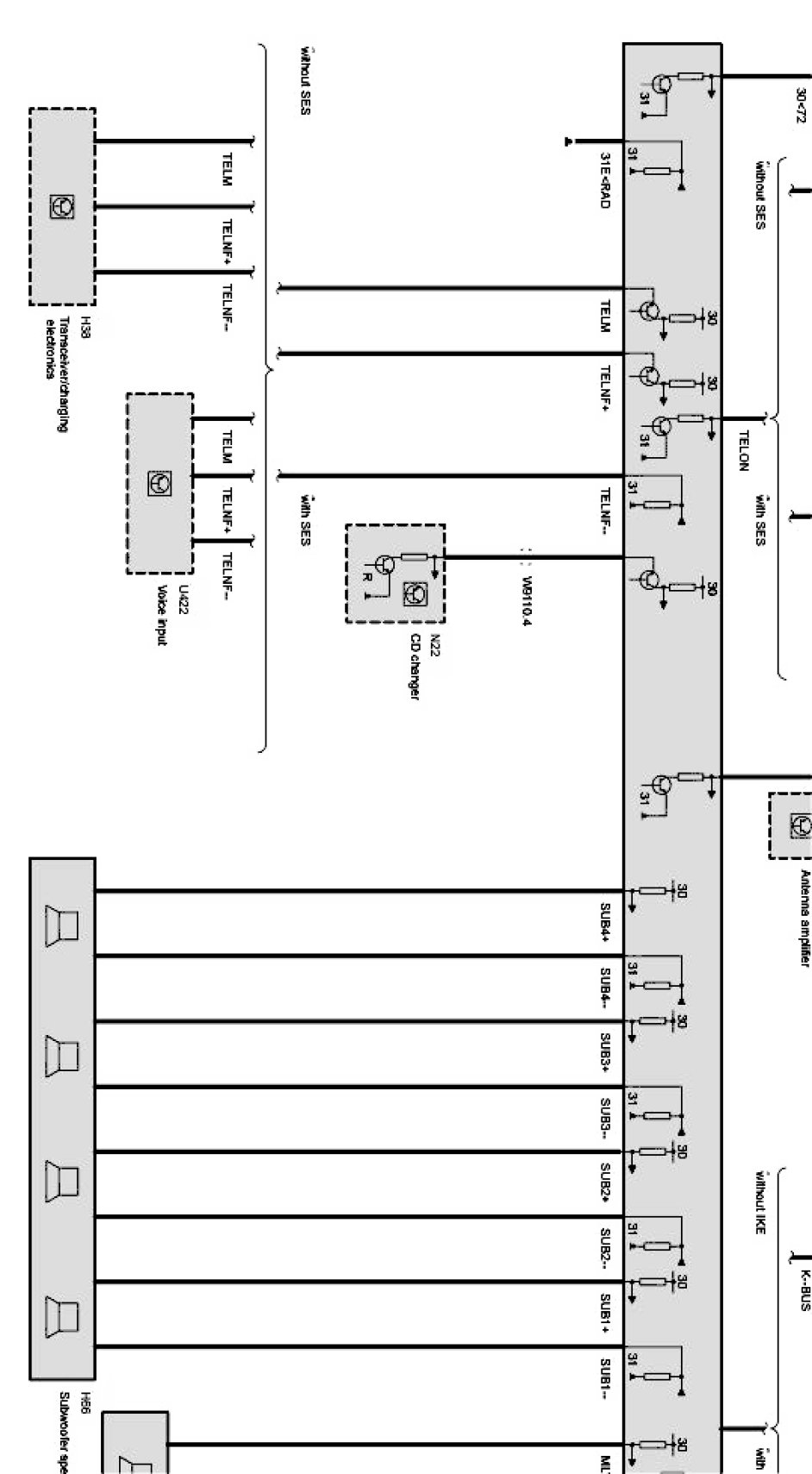

E53 Radio Part 4 Of 6:

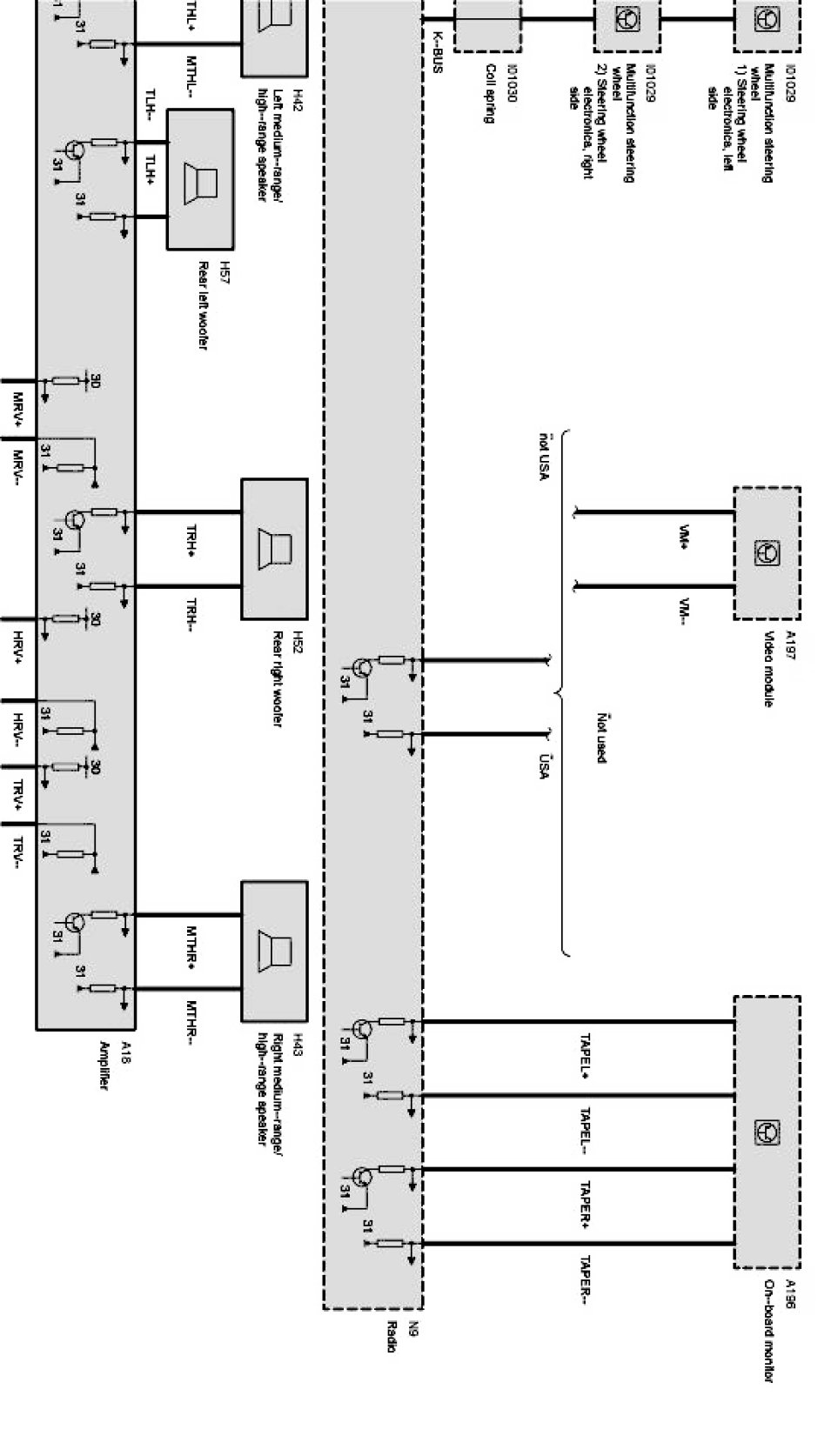

E53 Radio Part 5 Of 6:

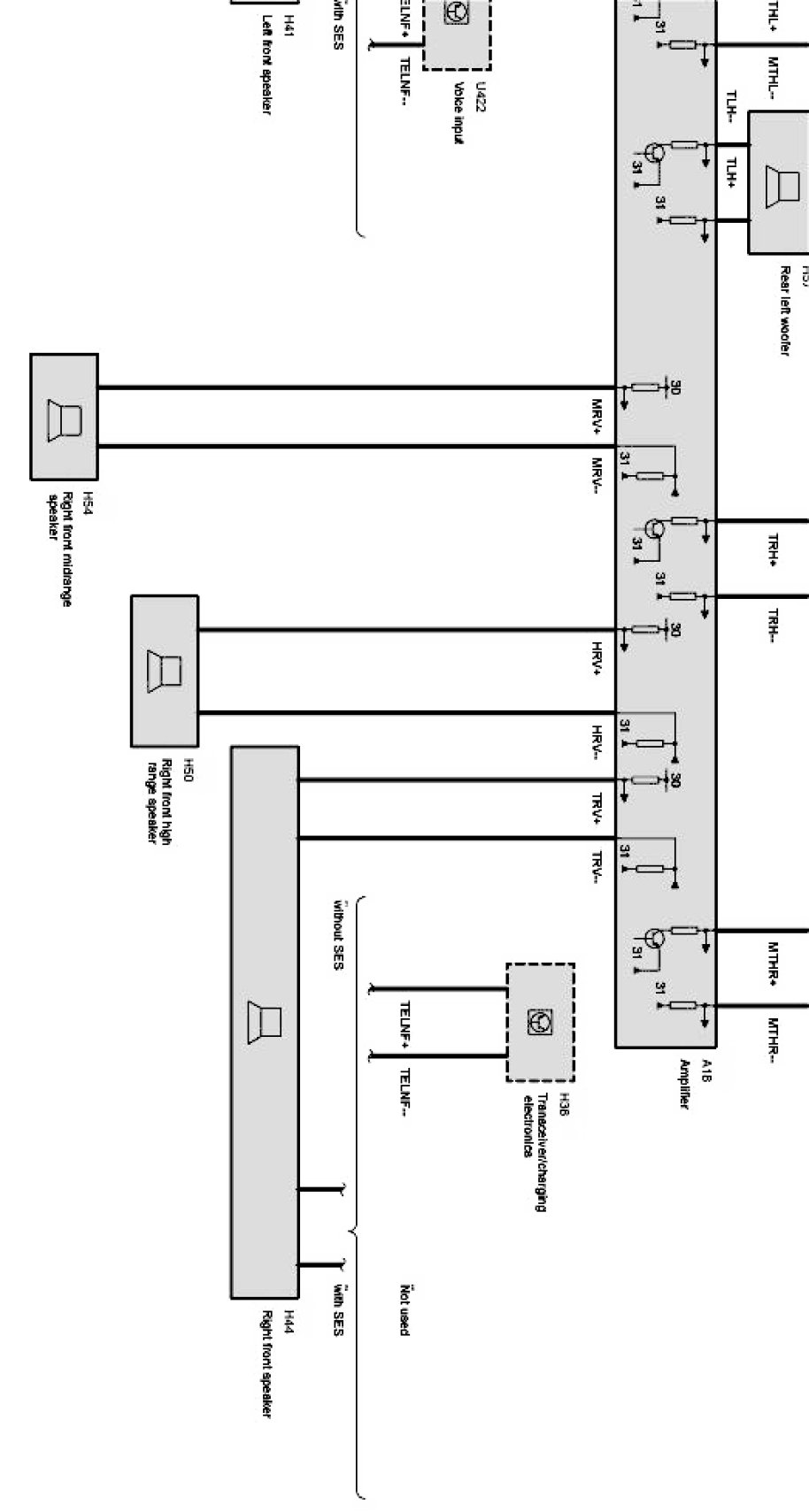

E53 Radio Part 6 Of 6:
