Radio (Stereo System (6 Speakers) Without BM on-Board Monitor As of 09/00 Up to 09/01)

E53 Radio Part 1 Of 7:



E53 Radio Part 2 Of 7:

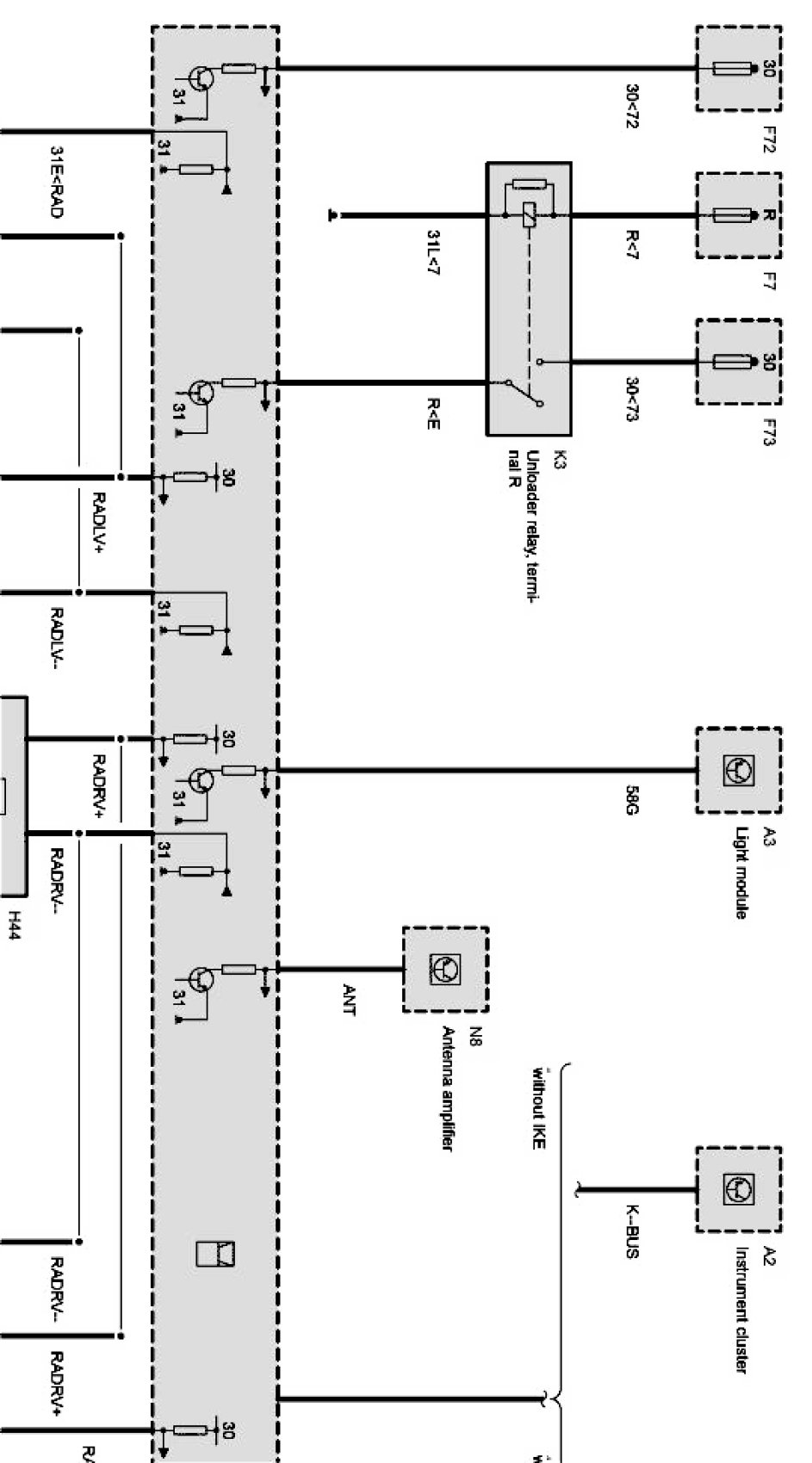

E53 Radio Part 3 Of 7:

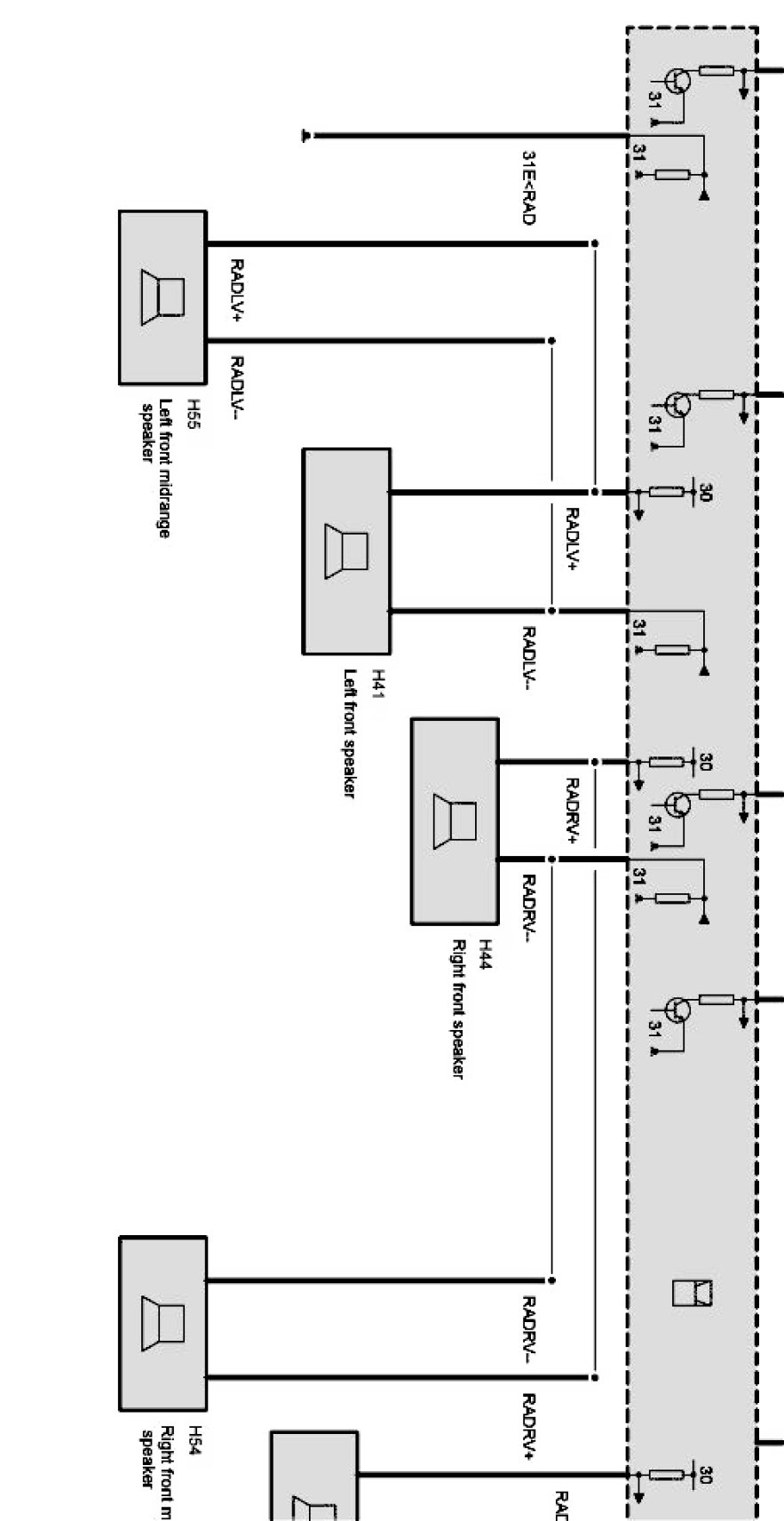

E53 Radio Part 4 Of 7:

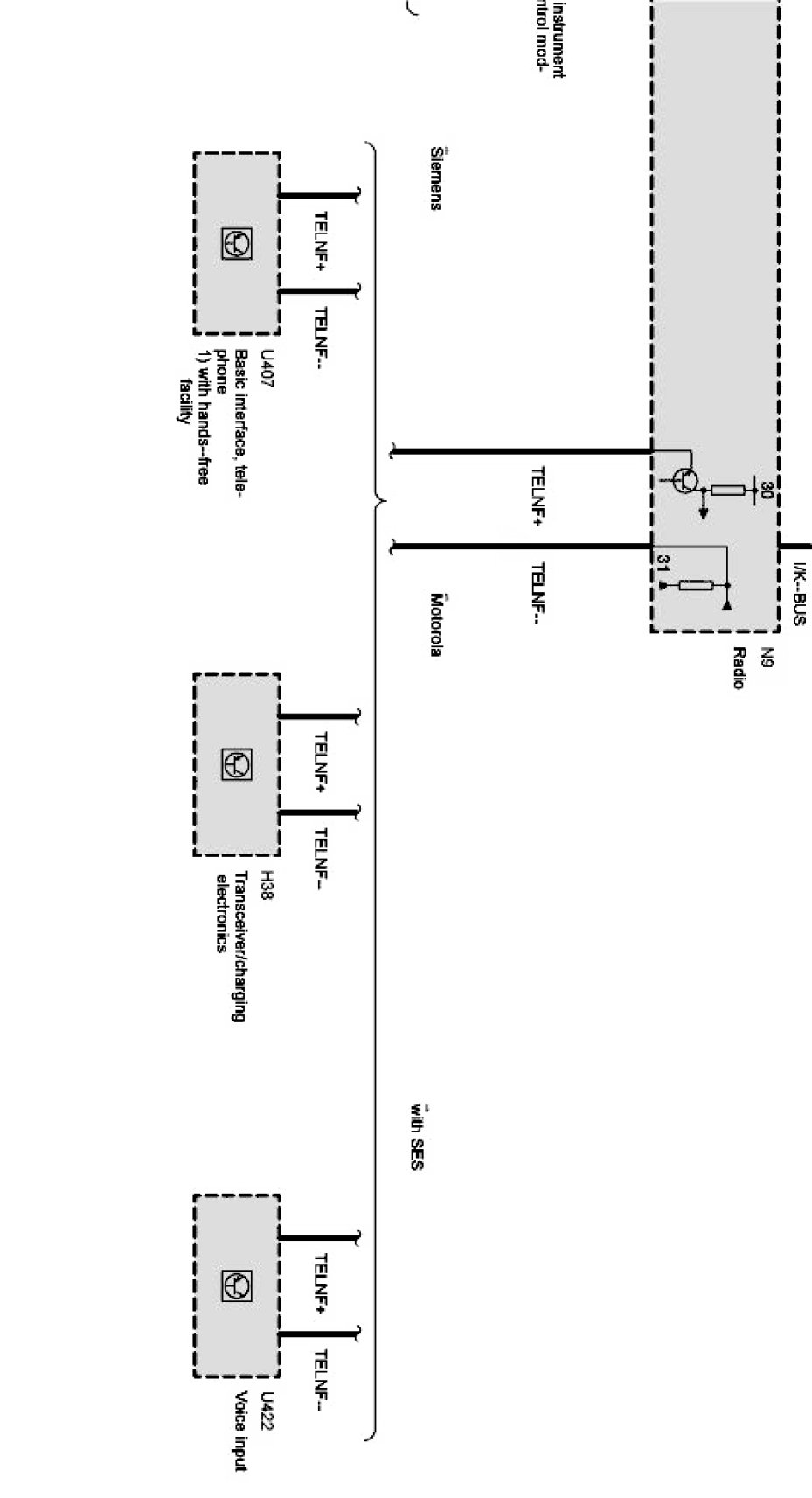

E53 Radio Part 5 Of 7:

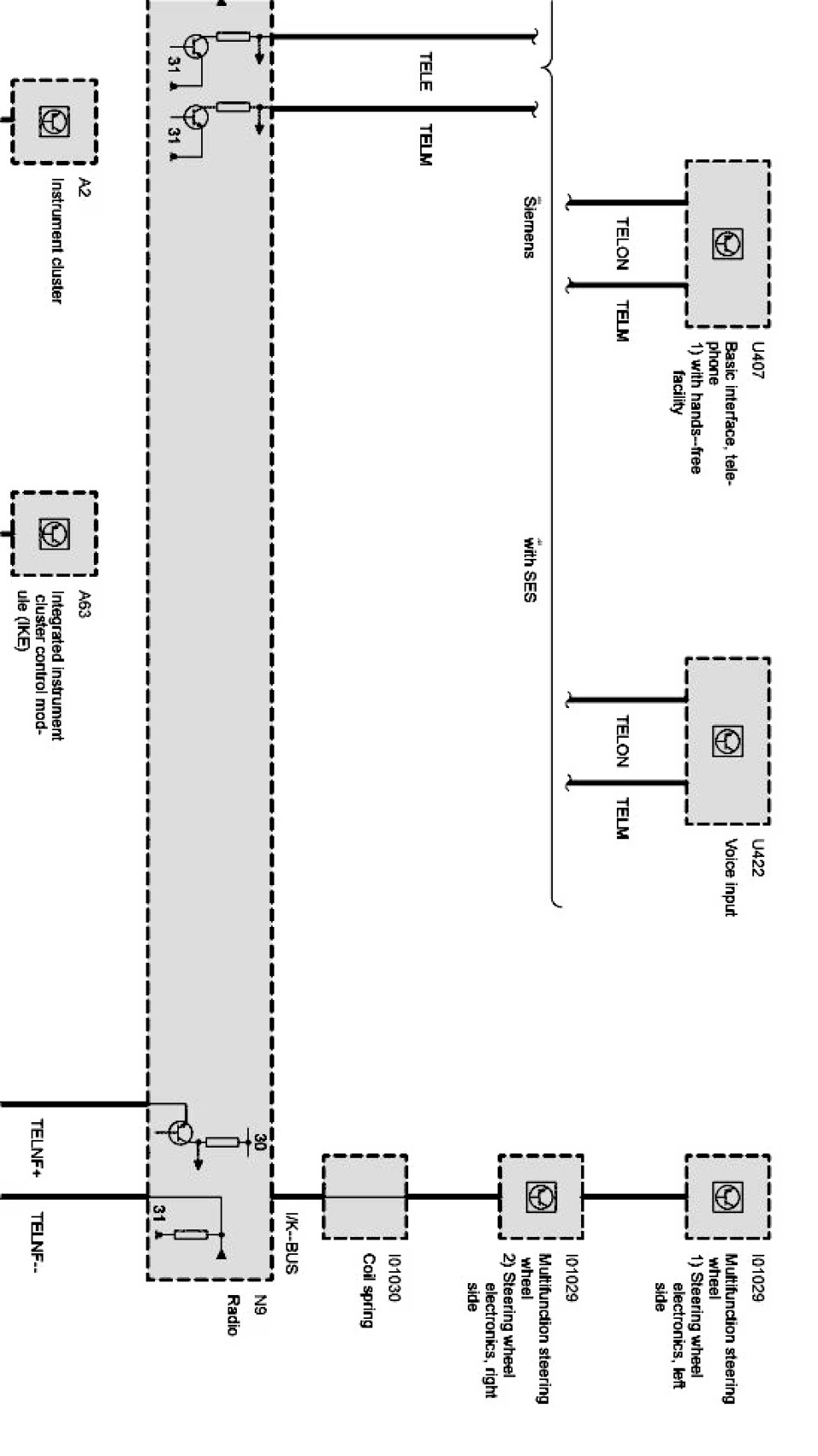

E53 Radio Part 6 Of 7:

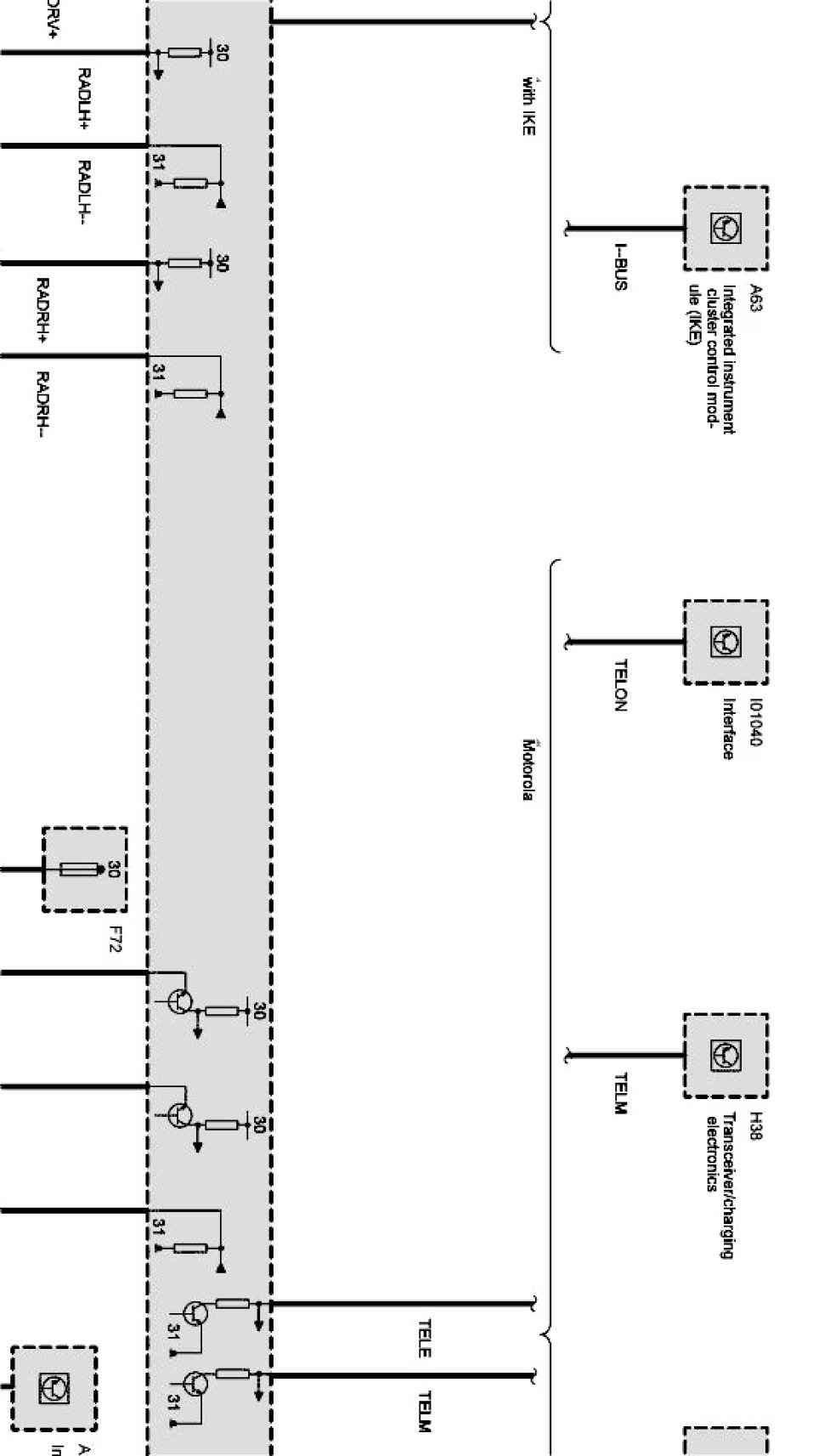

E53 Radio Part 7 Of 7:
