Antenna Diversity (Without BMW Reverse RDS (C42))
>>
Antenna Amplifier, Diversity
>>
Antenna Diversity (BM on-Board Monitor As of 09/00 Up to 09/01)
Antenna Diversity (BM on-Board Monitor As of 09/00 Up to 09/01)

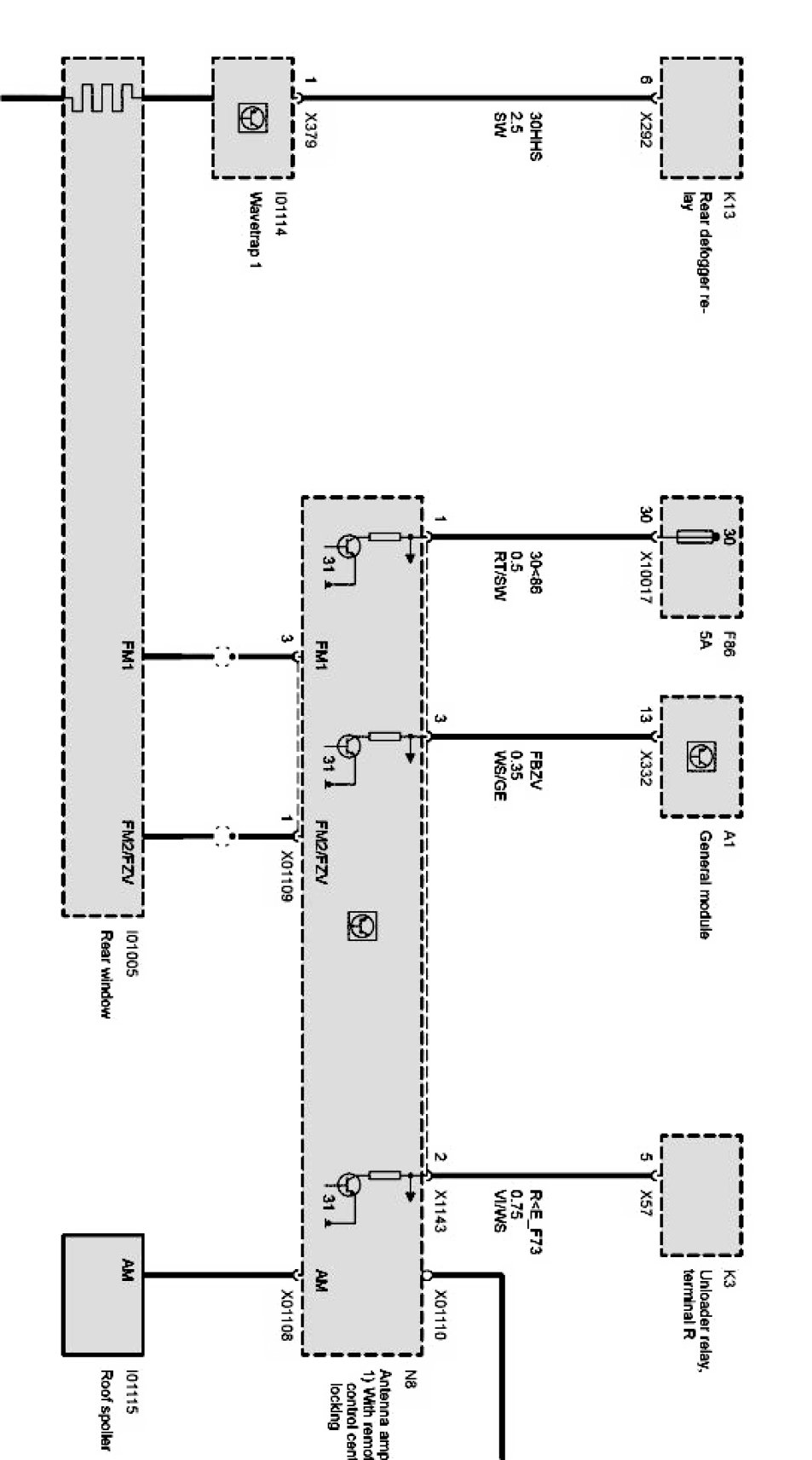

E53 Antenna diversity Part 1 Of 3:

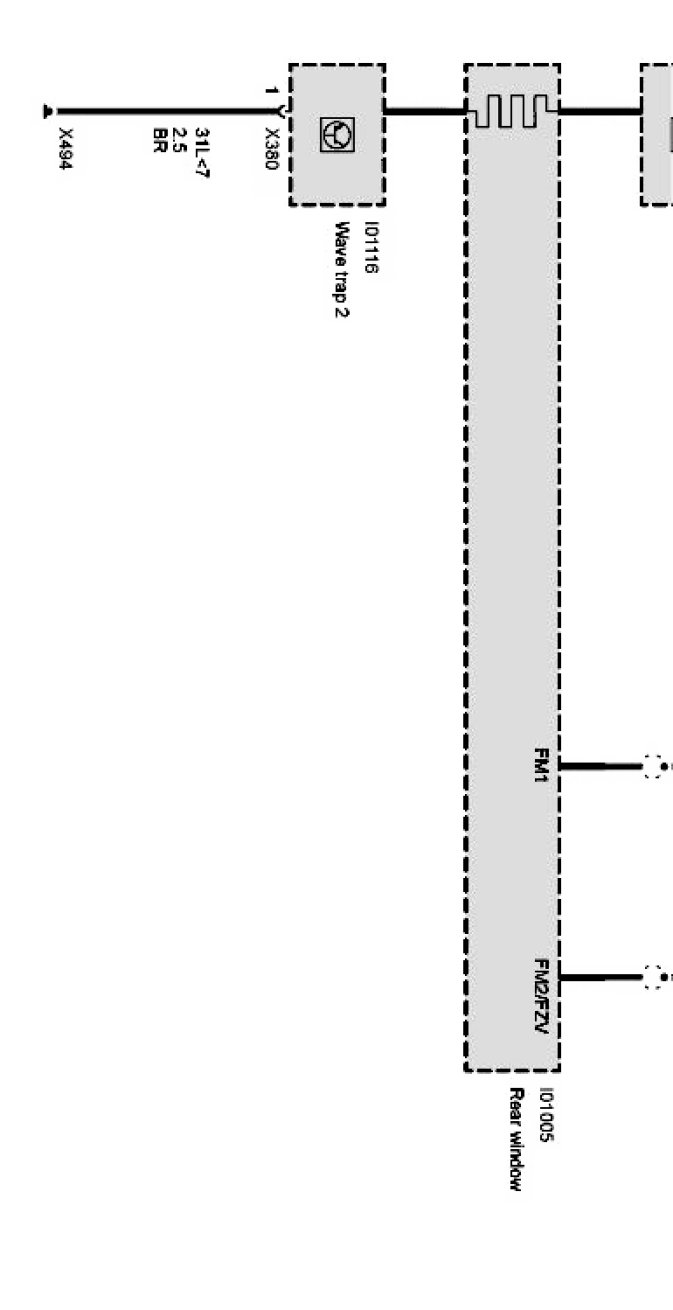

E53 Antenna diversity Part 2 Of 3:

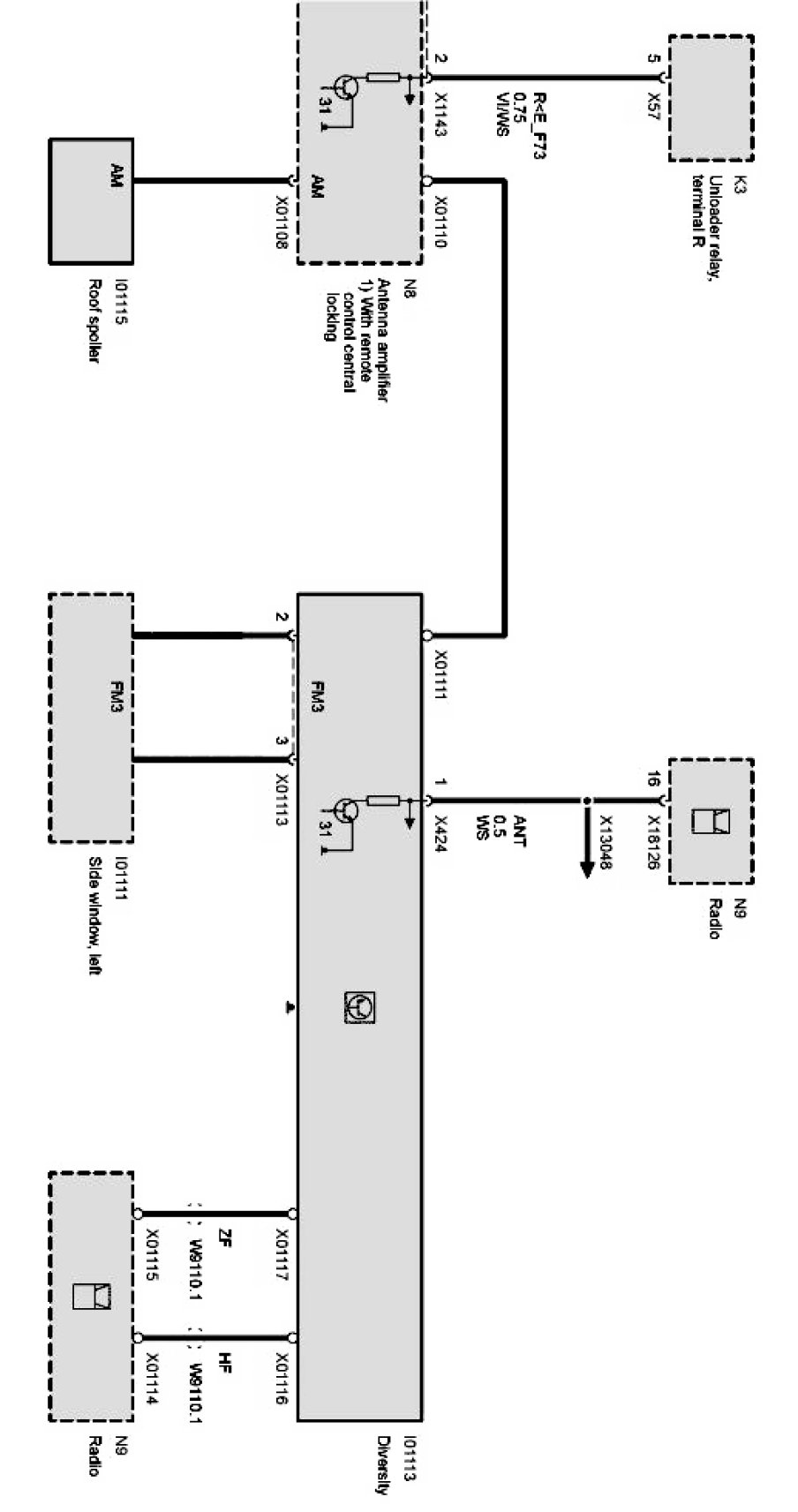

E53 Antenna diversity Part 3 Of 3:
