Drive/Propeller Shaft: Tools and Equipment

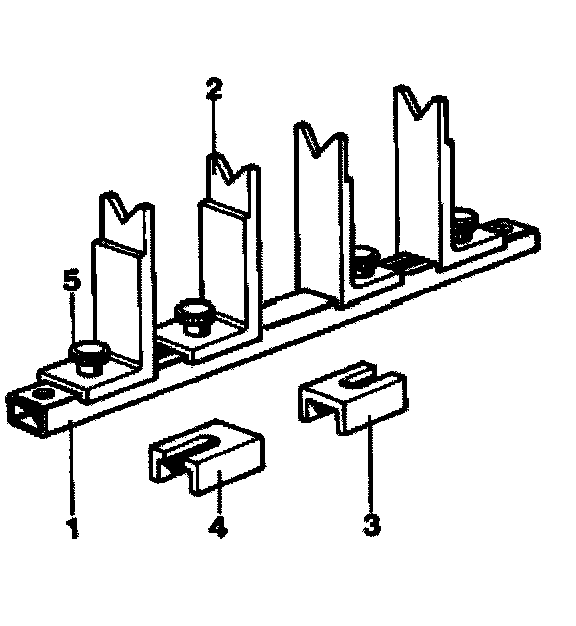

26 1 000 Gauge





Note: For aligning center mount of propeller shaft

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Order number: 26 1 000 Gauge
Consisting of:
1 = 26 1 001 Rail
2 = 26 1 002 Bearing bracket
3 = 26 1 003 Chocks

Note: For propeller shaft 50 mm 0 front, 70 mm 0 rear

4 = 26 1 004 Chock for propeller shaft (50 mm 0 front, 60 mm 0 rear)
5 = 26 1 005 Knurled screws


26 1 030 Fixture





Note: For checking and adjusting diffraction angle of propeller shaft

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Order number: 26 1 030 Fixture
Consisting of:
1 = 26 1 031 Spirit level

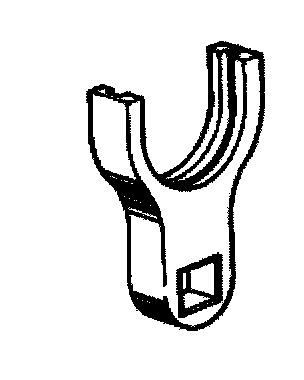

261 040 Spanner





Note: For threaded bushing on slide of propeller shaft - Not for four-wheel drive vehicles

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39
Storage location: A33
Order number: 26 1 040 Spanner

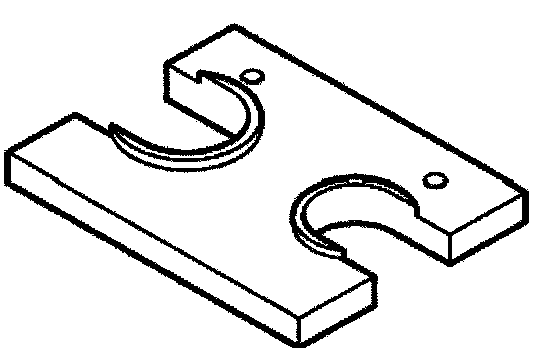

26 1 110 Removal disk





Minimum set: Mechanical tools

Note: For detaching constant-velocity joint from propeller shaft

Series: E31, E32, E34, E36, E36/7, E38, E39
Storage location: C26
Order number: 26 1 110 Removal disk

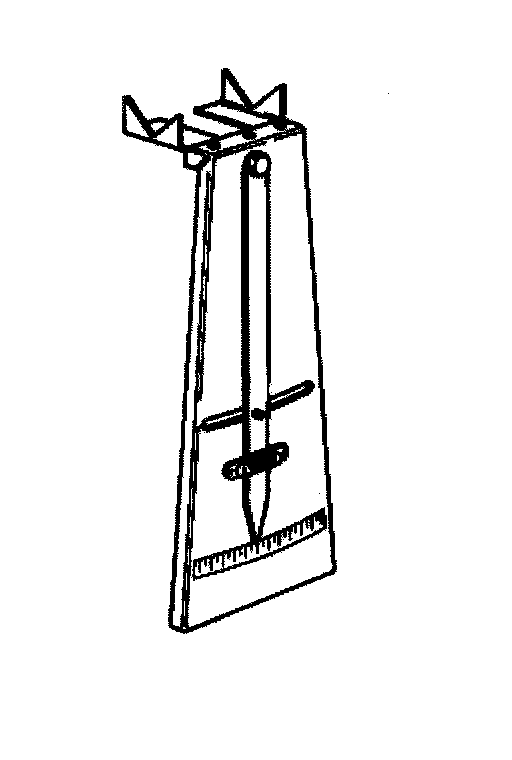

26 1 300 Inclination angle measuring device

Note: For determining bending angle of propeller shaft

Series: All models
Order number: 26 1 300 Inclination angle measuring device
