Replacing Constant-Velocity Joint For Propeller Shaft

Replacing Constant-Velocity Joint For Propeller Shaft





Removing Joint:
Remove complete propeller shaft,
Refer to 26 11 000

Remove hose clamp.

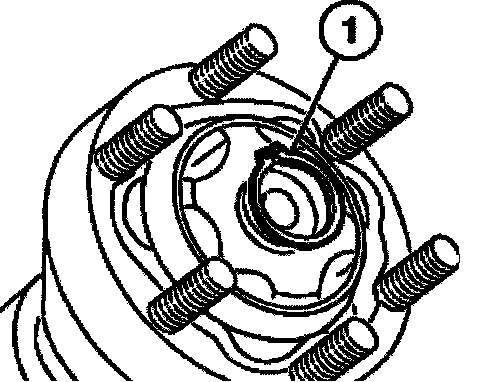

Lift out circlip (1).

Installation note:
Replace circlip.

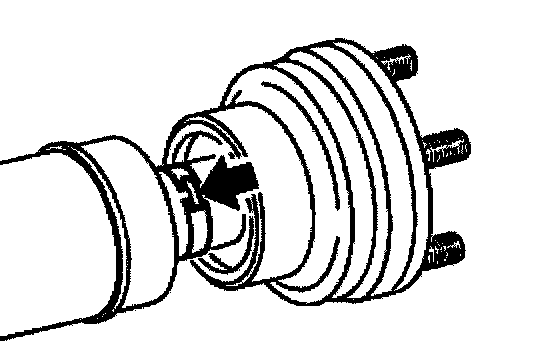

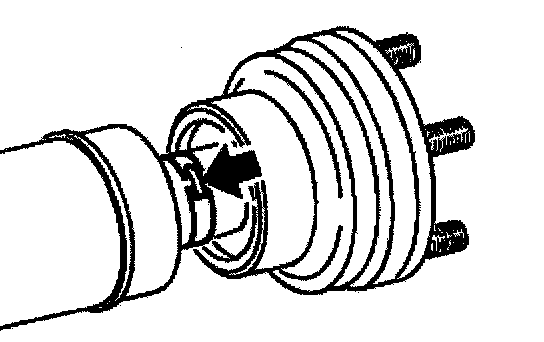

Push back boot.

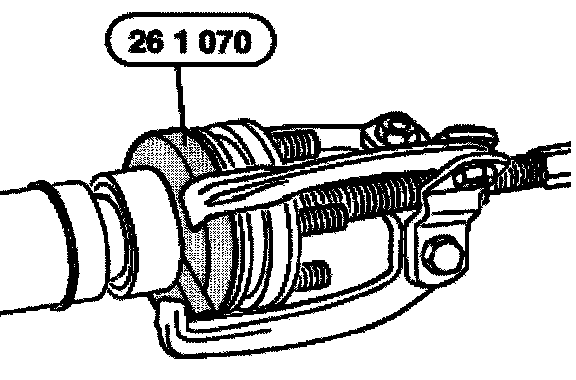

Apply Special Tool 261 070.

Pull off constant-velocity joint using a standard puller.

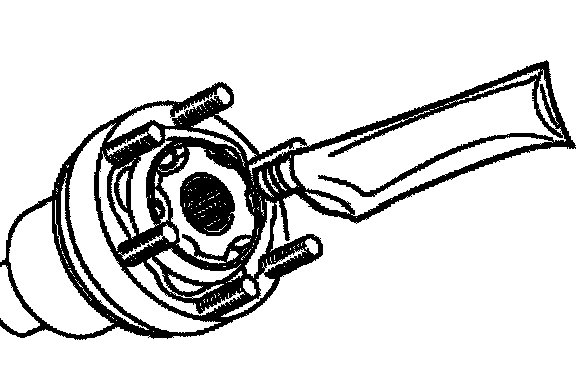

Installing joint: Fill new constant-velocity joint with 80 grams of grease.
Refer to BMW Parts Service.

Note: Do not cant inner race and cage as balls would fall out.

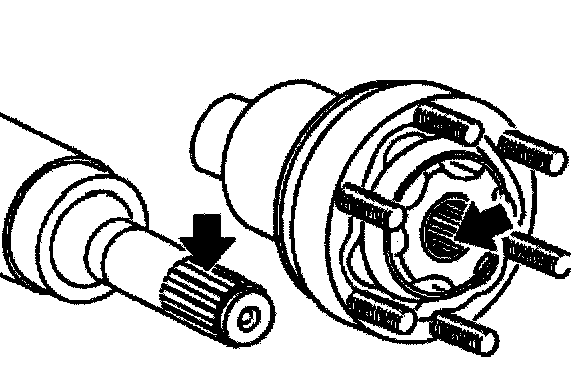

Clean splines to free them of grease and coat with bolt cement.
Refer to BMW Parts Service.

Caution: Keep bolt cement out of ball grooves.

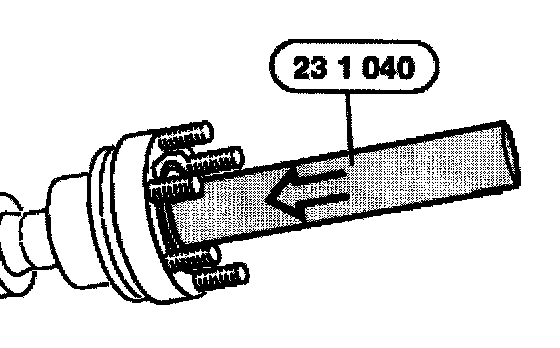

Drive constant-velocity joint onto propeller shaft using Special Tool 23 1 040.

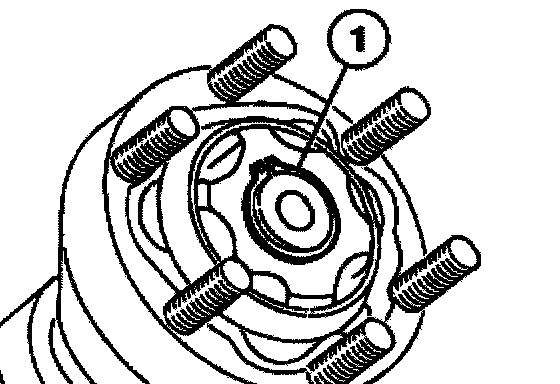

Install circlip (1).

Note: Ensure correct seating and a tight fit.





Pull boot onto propeller shaft.

Install hose clamp on boot and tighten.

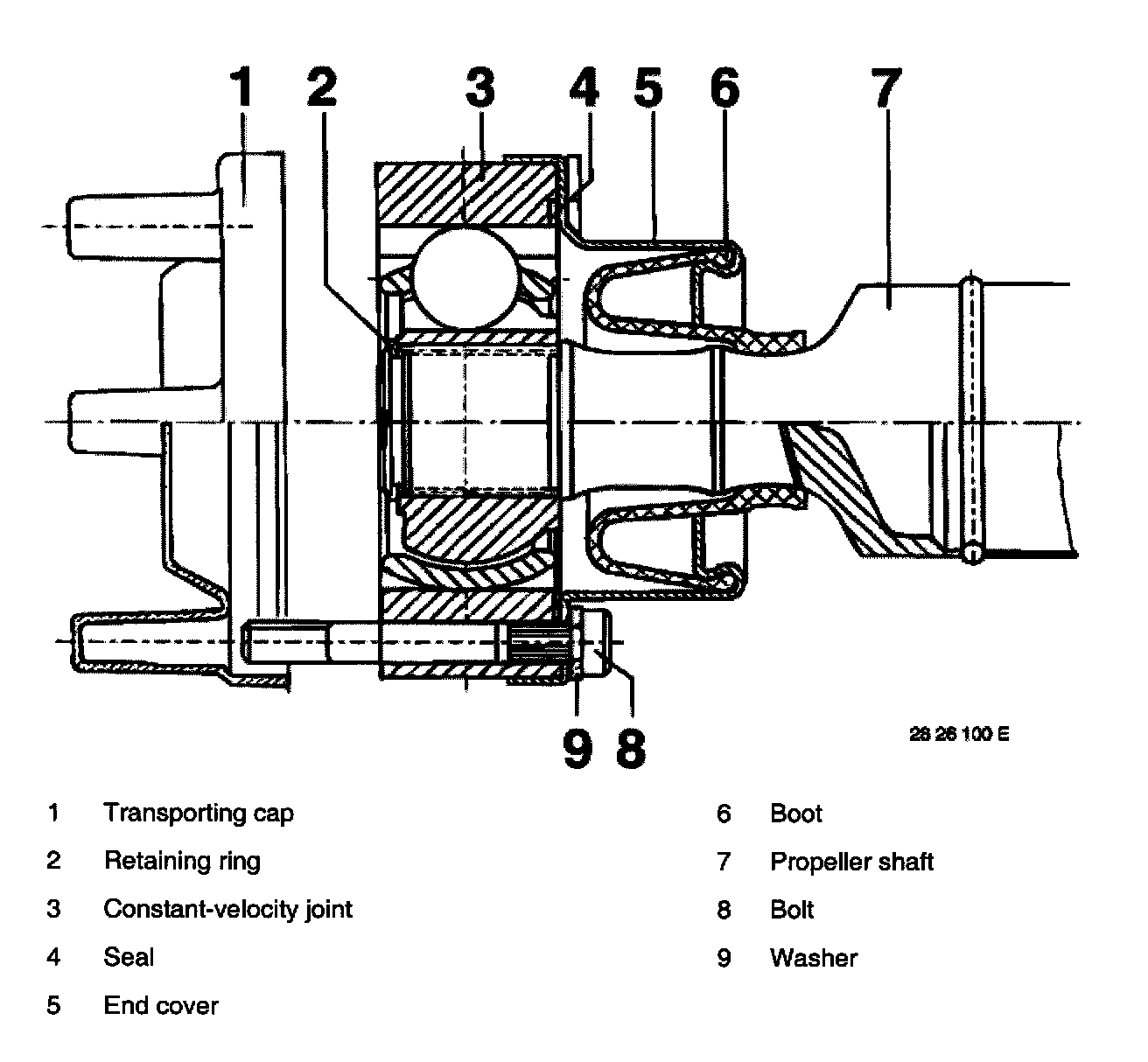

Assembly of Constant-Velocity Joint
