Clutch Release Bearing: Service and Repair

Replacing Guide Tube For Clutch Release Gear (S5D 310Z/ S5D 320Z)

Remove transmission.

Remove clutch release bearing and release lever from guide tube.

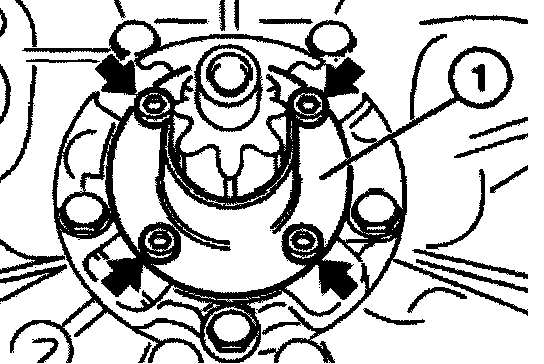

Release screws.
Tightening torque, 23 11 2AZ.

Remove guide tube (1).

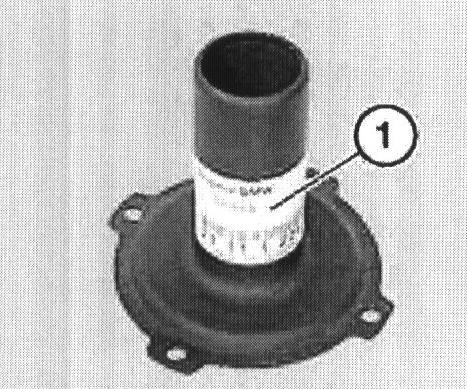

Note: Remove all traces of sticker (1) with a suitable solvent.
