Tires: Service and Repair

Replacing Sealant Bottle of M-Mobility System:

Note:

- This work step describes how the sealant bottle is replaced within the framework of inspection (M-Mobility system not used).

- If the M-Mobility system has been used, also replace the transparent tire inflation hose.

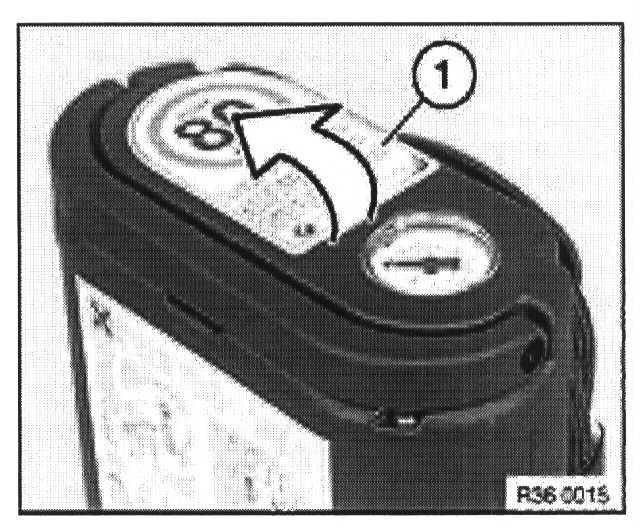

- Remove seal film (1). Not necessary if M-Mobility system has already been used.

Installation:
- Replace seal film.

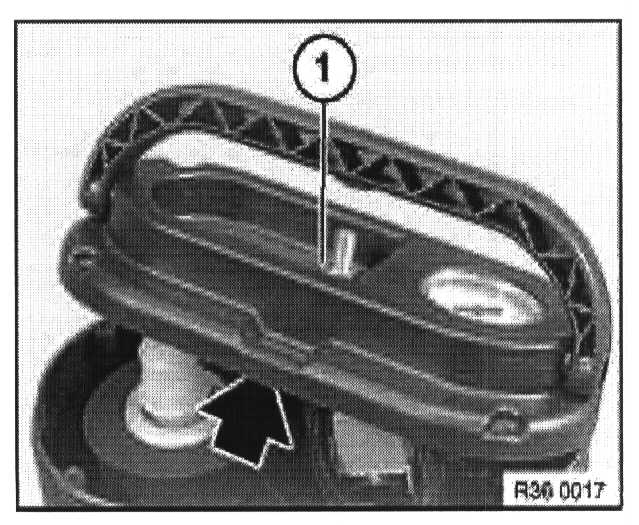

- Release Torx threaded bolts (1) and raise cover as far as possible.

Installation:

- Note Tightening Torque = 2 Nm.




- Release hexagon nut (1), grip nut firmly from underside

Installation:

- Note Tightening Torque = 2 Nm.

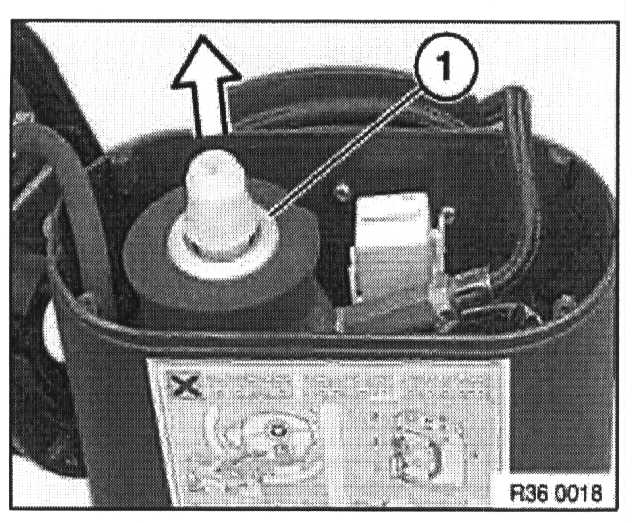

- Lift sealant bottle out.




- Ensure that hose is laid without any kinks.




Note:
- Note the expiration date when installing a new sealant bottle.
