Service Interval Display

Instrument cluster:




1 Fuel gauge with indicator lamp for reserve range
2 Indicator lamp for turn signals
3 Speedometer
4 Indicator and warning lamps for:
- Battery charge current
- High beams
- Engine oil pressure
5 Tachometer
6 Coolant temperature gauge
7 Indicator and warning lamps for:
- Brake pad wear
- Brake hydraulic system
- Parking brake
- Airbags
8 Indicator and warning lamps for:
- Service Engine Soon
- Automatic transmission
- Safety belts
- Engine oil level
- Antilock Brake System (ABS)
9 Indicator lamp for Automatic Stability Control plus Traction (ASC+T)/Dynamic Stability Control (DSC and ADB/DBC)
10 Trip odometer/Gear indicator for automatic transmission with Steptronic
11 Service Interval Display.
12 Odometer
13 Indicator and warning lamps for:
- Front fog lamps
- Engine electronics
14 Trip odometer reset button

Note: The illustration shows the instrument cluster in the US version. In the Canadian models, some of the indicator and warning lamps have a different appearance.

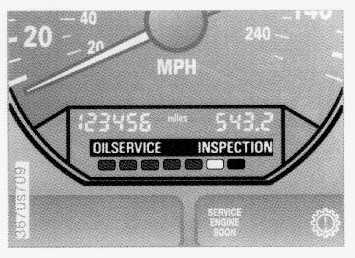

Service Interval Display:




Green lamps:
The number of illuminated lamps decreases as the time for your next maintenance visit approaches.

Yellow lamp:
This field appears together with OILSERVICE or INSPECTION. This alerts you that maintenance is due. Please arrange for an appointment with your BMW center.

Red lamp:
Maintenance is overdue.
