Home >> BMW >> 2002 >> M Coupe (E36/7) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Fuses 24, 25

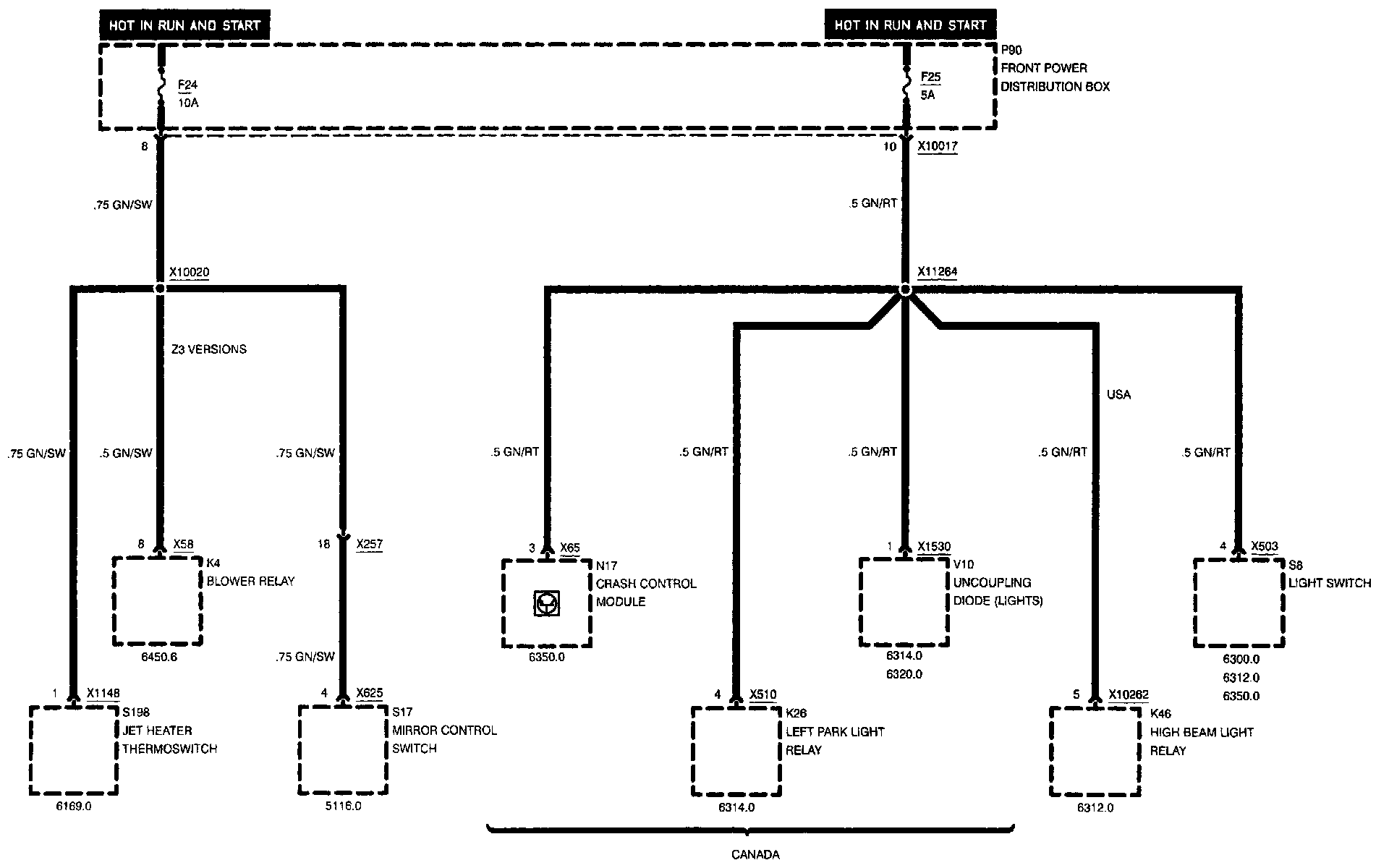

Fuses 24, 25

Fuse Details: Fuses 24, 25:
