Replacing Rubber Seal on Hard Top at Front

Replacing Rubber Seal On Hard Top At Front

Remove hard top.

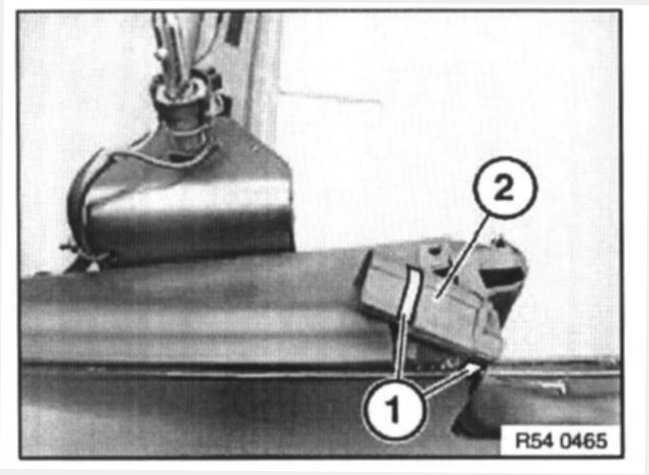

Detach rubber seal (2) at bonding points (1).

Installation:
Use profile rubber adhesive (sourcing reference: BMW Parts Service) for bonding.

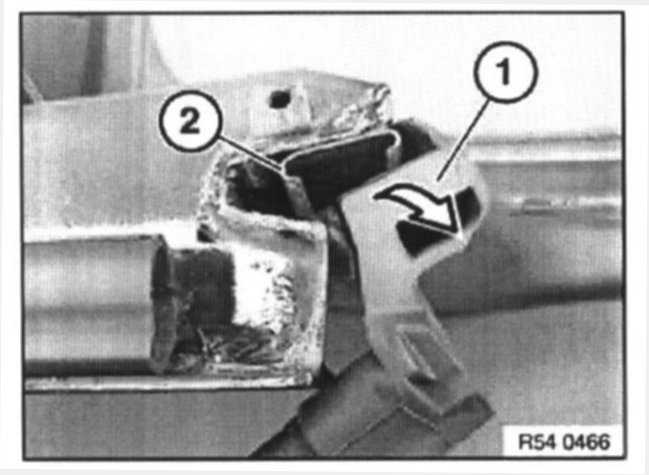

Carefully twist rubber seal (1) out of guide rail (2).







Installation:

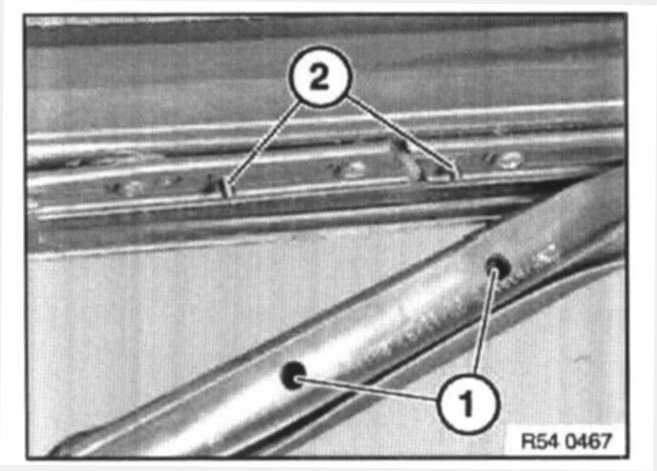

Holes (1) in rubber seal must line up with journals (2) on guide rail.
