Trailing Arm Bushing: Service and Repair

Replacing both rubber mounts for semi-trailing arm (compact, Z3)

Trailing arm removed.





Coat bulge on rubber mount with Circolight or equivalent.

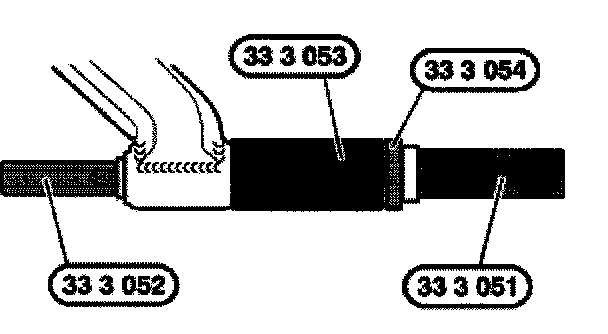

Pull out rubber mount with special tools 33 3 051/052/053/054.

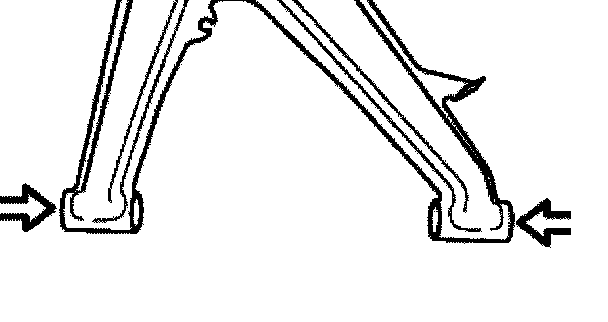

Note: Installed position of rubber mounts.

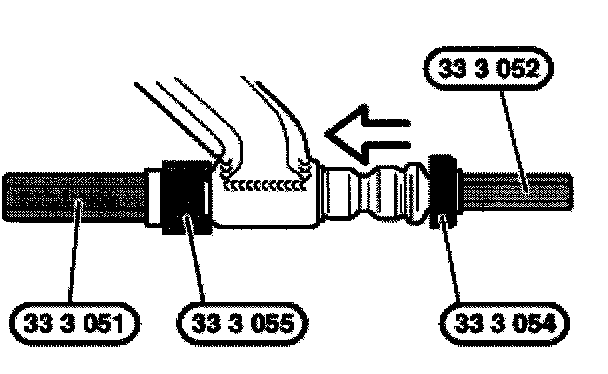

Coat new rubber mount with Circolight, or equivalent and pull in with special tools 33 3 051/052/054/055.
