Replacing Fuel Injectors

Replacing all fuel injectors


Switch off ignition.


Remove complete injection pipe.

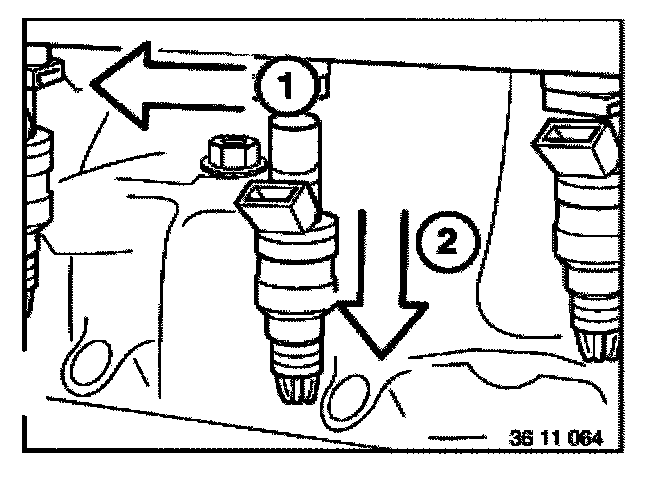

Unclip fuses (1).
Pull fuel injectors (2) out of injection pipe.
Replace fuel injectors.







Installation:
Coat O-rings with anti-friction rubber coating (e.g. petroleum jelly).
Check fuel injectors for leaks and clean.
