Replacing Front Auxiliary Turn Indicator Light




Removing and Installing/Replacing Front Left or Right Auxiliary Turn Indicator Light (Z3 Roadster, Z3 Coupe)

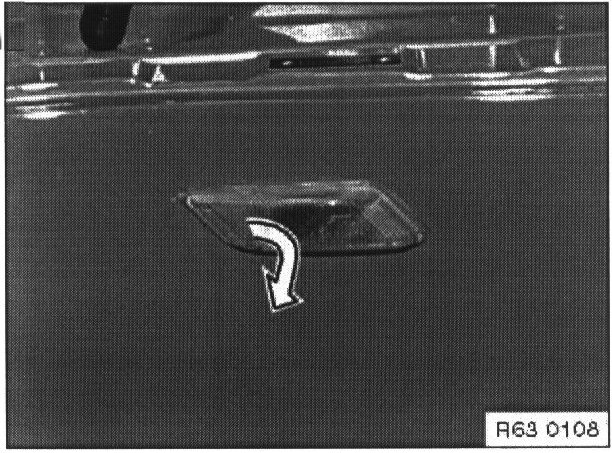

Press side lights backwards and press forwards to pry out.

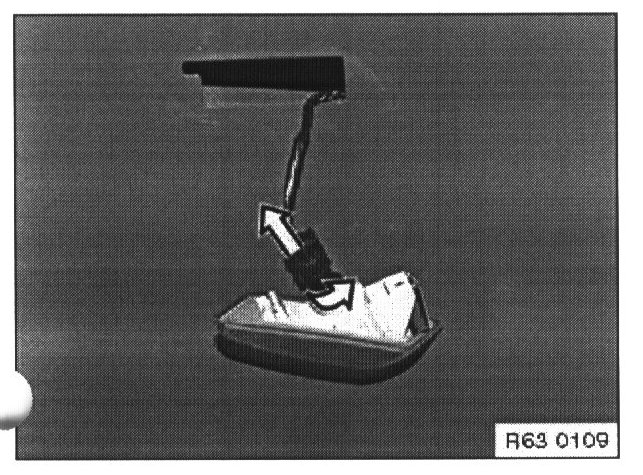

Twist lamp socket and lift out.
