Replacing Evaporator Temperature Sensor




Removing And Installing/Replacing Evaporator Temperature Sensor (Z3 Roadster, Z3 Coupe)

Remove regulator for evaporator.

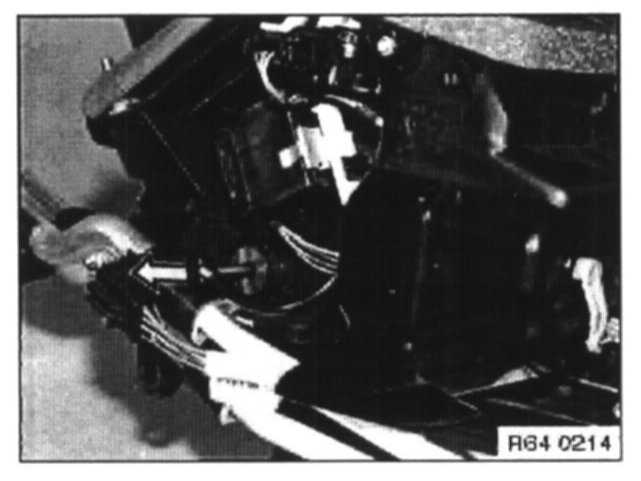

Unclip plug connection from bracket and disconnect.







Remove evaporator sensor.
