Replacing Heater Controls (Without IHKA)

Removing/Installing Heater Control

Remove Oddments tray.

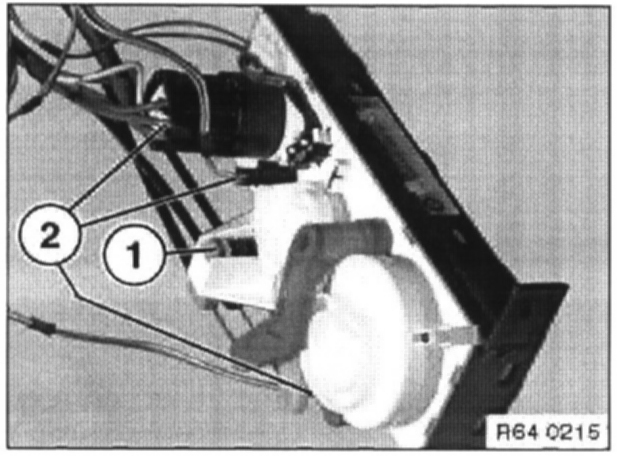

Unclip Bowden cables from bracket (1) and disconnect from the lever.
Disconnect connector (2).

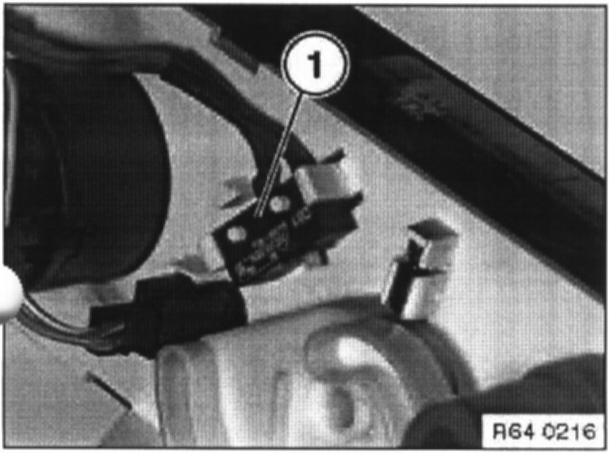

Unclip micro-switch (1).
