Replacing Rubber Seal on Hard Top at Front

54 21 010 Replacing Rubber Seal On Hard Top At Front

Remove hard top.

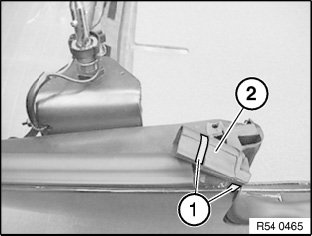

Detach rubber seal (2) at bonding points (1).

Installation:

Use profile rubber adhesive (sourcing reference: BMW Parts Service) for bonding.

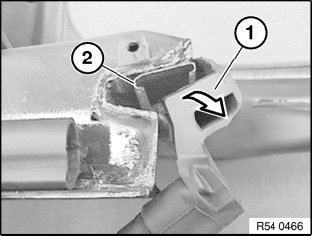

Carefully twist rubber seal (1) out of guide rail (2).







Installation:

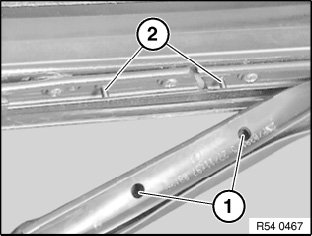

Holes (1) in rubber seal must line up with journals (2) on guide rail.
