Hard Top Latch: Service and Repair

54 21 060 Removing And Installing/Replacing Mounting Plate, Front Left Or Right

Remove hard top.

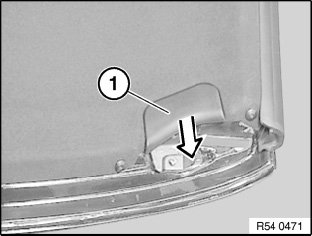

Detach cover (1) on mounting plate towards front.

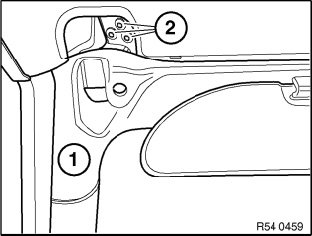

Release screws (2) and remove mounting plate.
1 Cowl panel
