Utility Storage Compartment: Service and Repair

51 16 240 Removing And Installing Rear Oddments Box (Z3 Roadster, M Roadster)

Loosen oddments tray (do not remove). Removing and Installing Oddments Tray Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)







Press up oddments tray (1) and unfasten screws (2).







Version (A):
Without rollover protection bar, without subwoofer, without "Harman-Kardon" Hifi system:

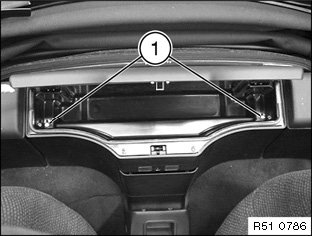

Open cover and unfasten screws (1).







Version (A):
Without rollover protection bar, without subwoofer, without "Harman-Kardon" Hifi system:

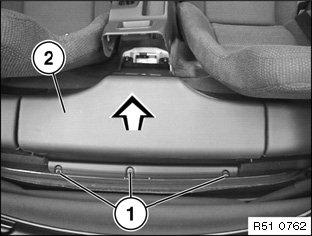

Unfasten screws (1) and remove oddments box (2).

NOTE: The procedures for "removing and installing rear oddments box" version (A) ends here.







Version (B):
With rollover protection bar:
Removing and installing rollover protection bar.

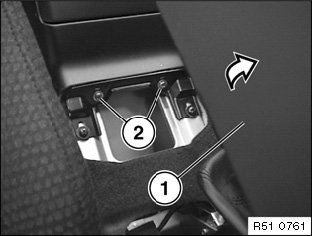

Pull off finisher (1) (lock) upward.







Version (B):
With rollover protection bar:

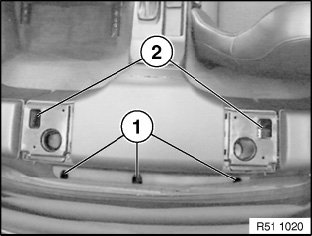

Lift out covers (1) and unfasten screws. Unfasten screws (2) and take off oddments box upward.

NOTE: The procedure for removing and installing the "rear oddments box" Version (B) ends here.







Version (C):
With rollover protection bar, with "Harman-Kardon" Hifi system:
Removing and installing loudspeaker box.

Unclip cover (1) upward.
Removing and installing left and right rollover protection bar.

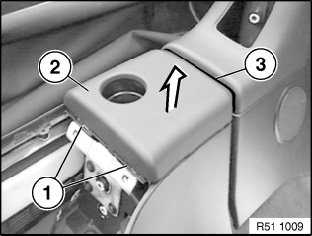

Lift out detent (1) and pull off finisher strip (2) (lock) upward.

Installation:
Glue on seal (3) if necessary.

Version (C):
With rollover protection bar, with "Harman-Kardon" Hifi system:







Lift out covers (1) and unfasten screws. Unfasten screws (2) and take off oddments box upward.
