Removing and Installing/Removing Rear Left or Right Upper Section of Side Trim Panel (Z3 Roadster, M Roadster)

51 43 010 Removing And Installing/Removing Rear Left Or Right Upper Section Of Side Trim Panel (Z3 Roadster, M Roadster)

Removing and installing rear oddments box. Service and Repair

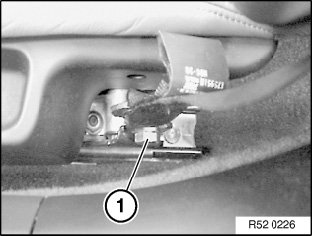

Unfasten seatbelt screw (1).

Installation:
72 11 1AZ Seat belt, Automatic reel, Lower strap, Anchor fitting,
Belt tensioner to body 31 Nm

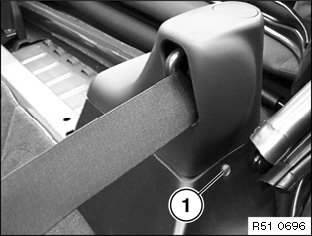

Unfasten cover cap (1) and screw.

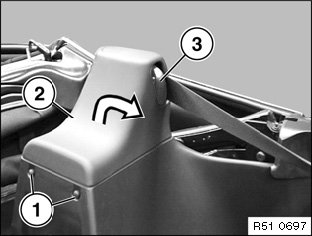

Remove caps (1) and screws. Pull out upper section of side trim panel (2) upward/forward over the seat belt roller (3).
