51 11 158 Replacing Baseplate For License Plate (Z3 Roadster, M Roadster, Z3 Coup�, M Coup�)
Unscrew and remove license plate.

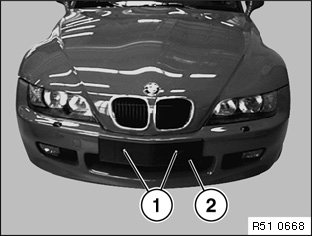

Lift out expanding wedges (1).
Remove baseplate for licence plate (2) from lower left/right sides.
