Removing and Installing/Replacing Vibration Damper (Z3 Roadster, M Roadster)



51 71 380 Removing And Installing/Replacing Vibration Damper (Z3 Roadster, M Roadster)

Remove rear bumper.

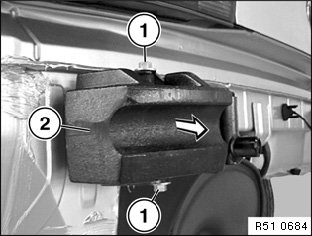

Loosen nut (1) and pull vibration damper (2) backwards to remove.
