Rear Bumper Shock Absorber: Service and Repair

Replacing A Shock Absorber For Bumper, Rear (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

(Bumper Removed)







Left shock absorber:

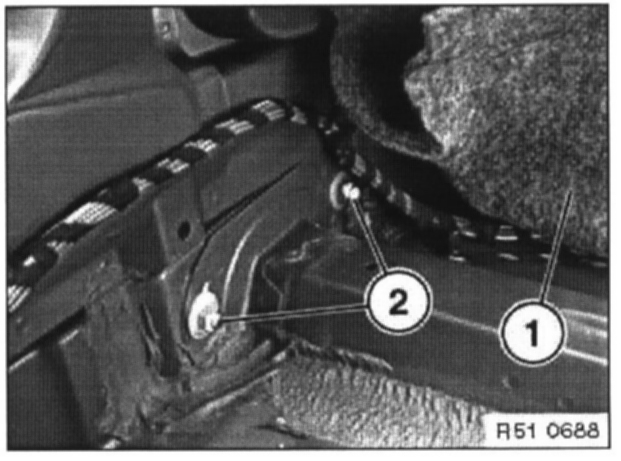

Press floor mat (1) to one side and unfasten nut (2).
Tightening Torque,

Front Bumper:

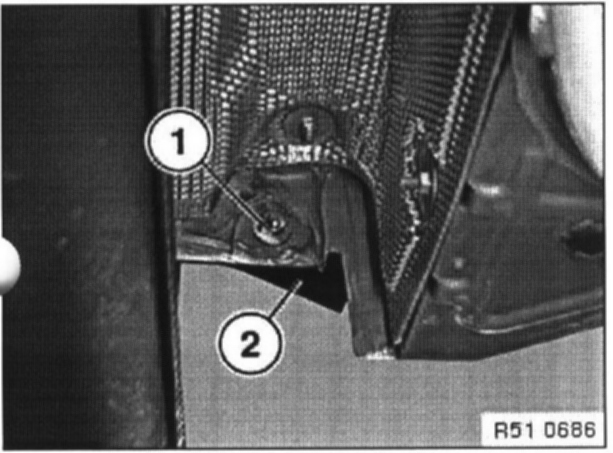

Unfasten nut (1) and remove shock absorber (2).
Tightening Torque,







Right shock absorber:

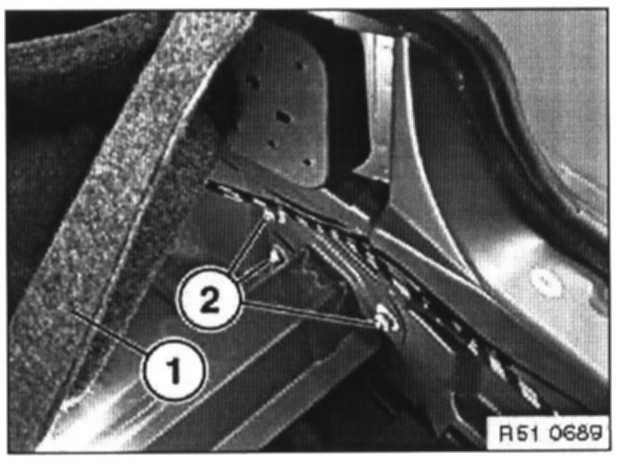

Press floor mat (1) to one side, unfasten nut (2) and pull out shock absorber.

Installation:
Tightening Torque,

Front Bumper:

Adjust rear bumper,
