Z3 Coupe 3.0i (E36/7) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

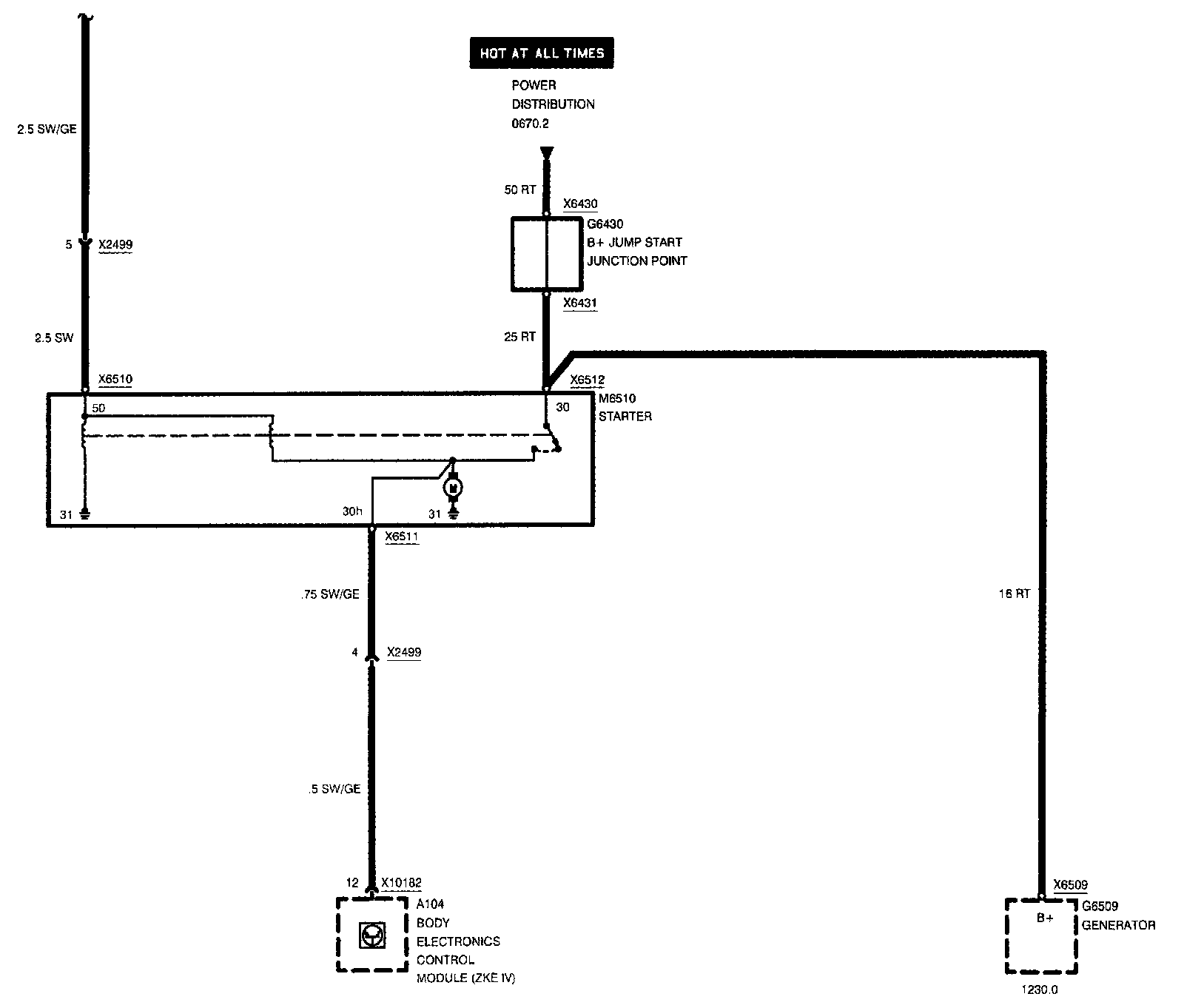

Starter Part 1:
Starter Part 2:
