Connectors, Replacing - Repairing
>>
Unlocking Tool For Tab Connector Housing
Unlocking Tool For Tab Connector Housing

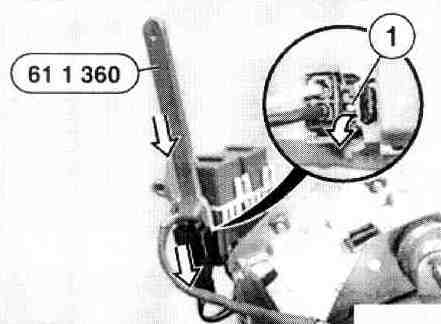

Release hook (1) with special tool 61 1 360 and push connector housing downward out of socket.
