A5S 560Z




A5S 560Z

Valve Body Component Identification

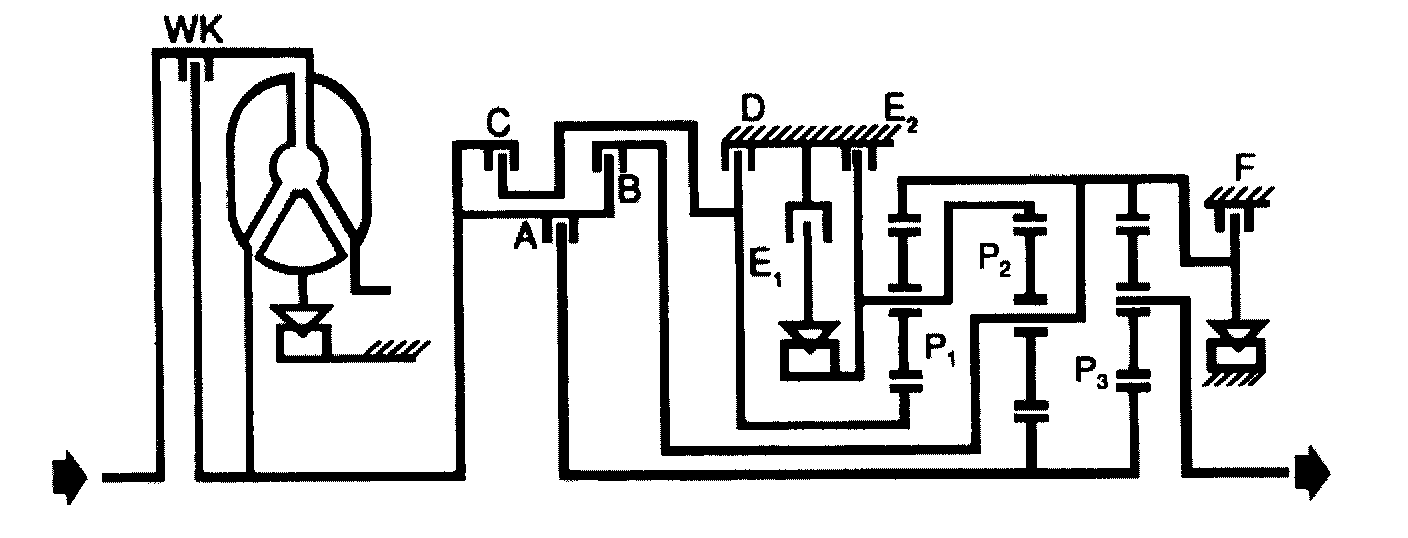

A5S 560Z - Power Flow Schematic







Gear Application Chart

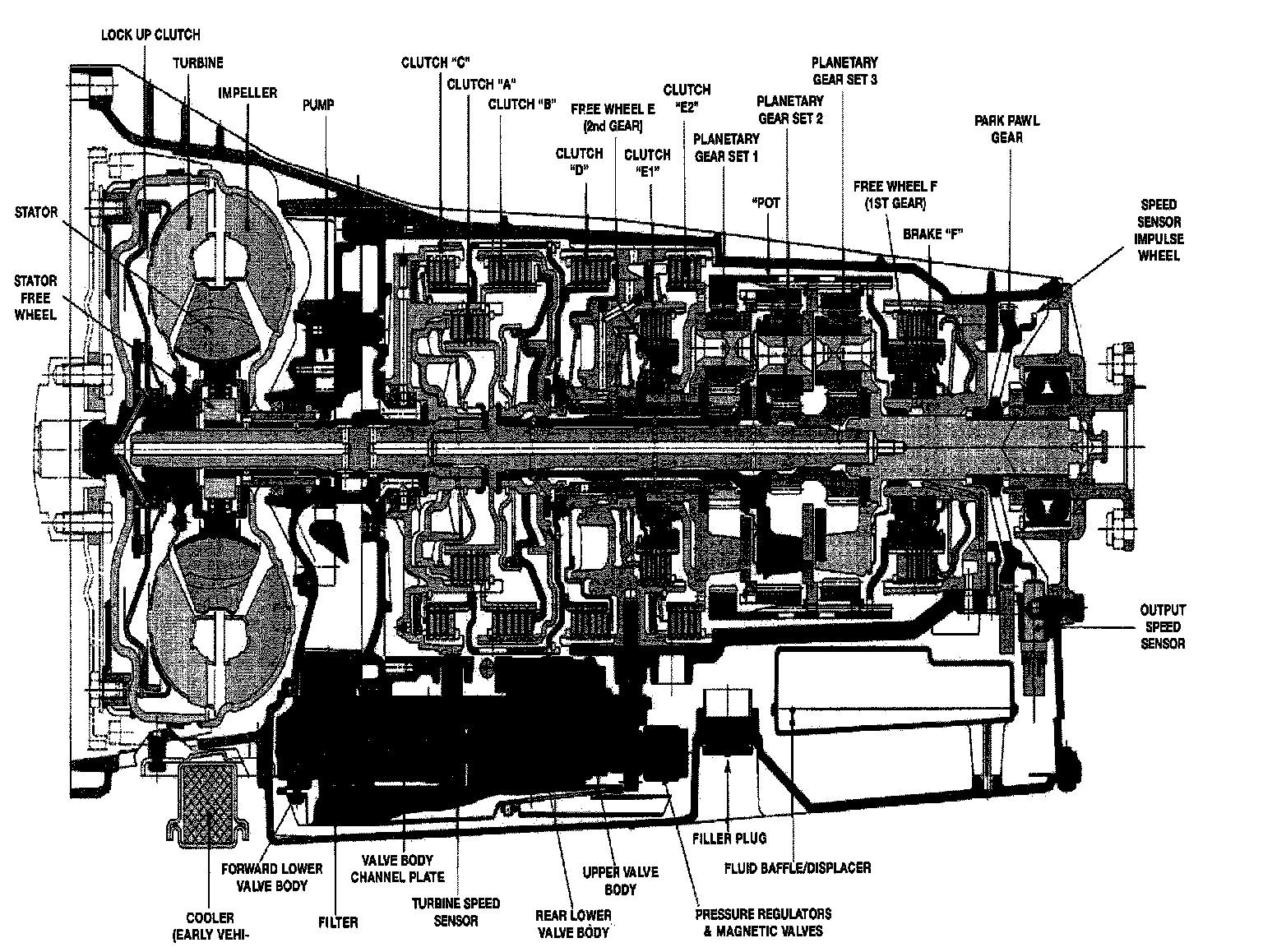

Component Locations
