Home >> BMW >> 2001 >> Z3 Coupe 3.0i (E36/7) L6-3.0L (M54) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Electrical Diagrams >> Canada

Canada

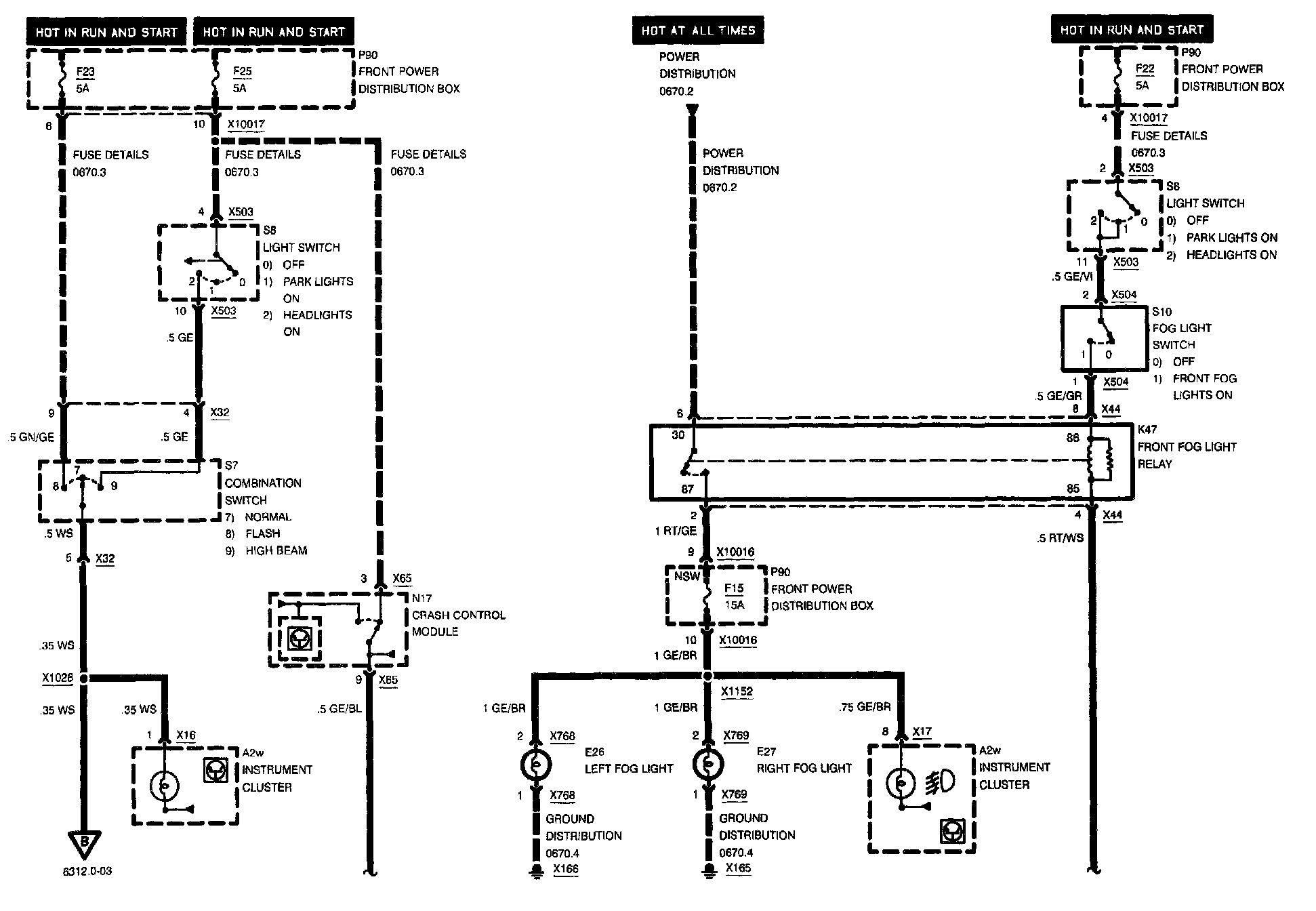

Headlights/Fog Lights - Canada (Part 1):

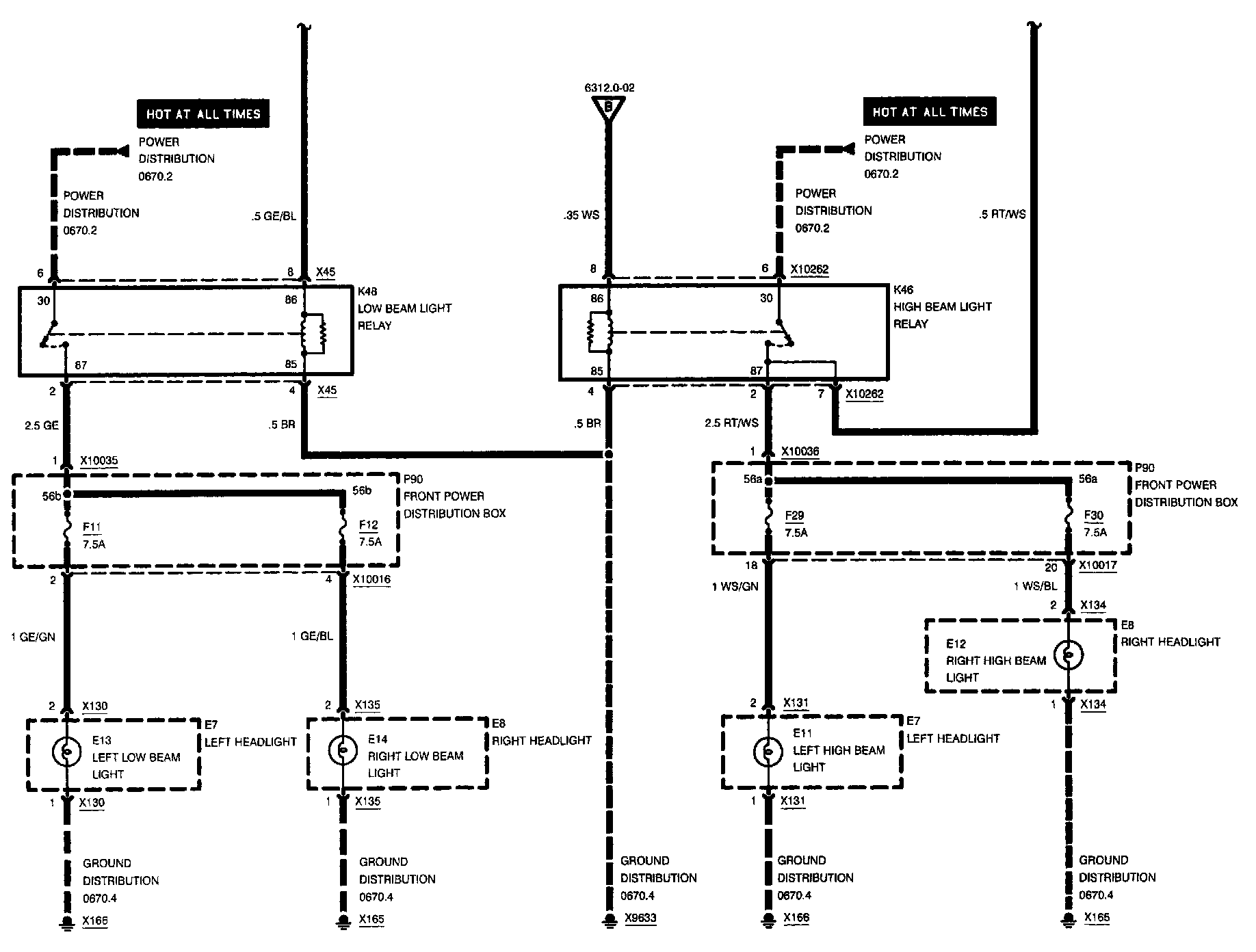

Headlights/Fog Lights - Canada (Part 2):
