D: Compressor Clutch Does Not Engage

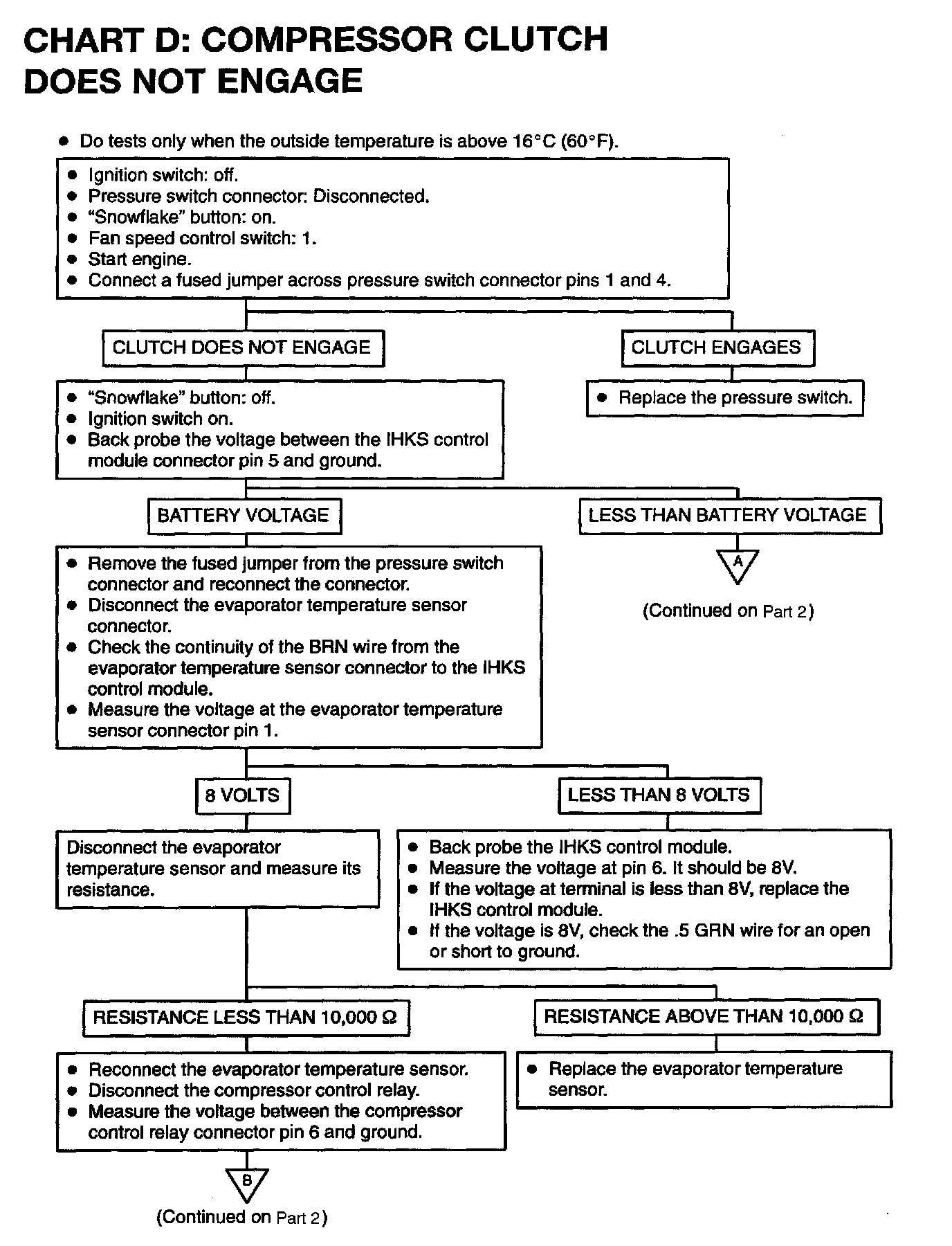

CHART D: COMPRESSOR CLUTCH DOES NOT ENGAGE


Part 1:






Part 2:
