Front Panel, Removal

Replace Front Plate (For Actuation of Heating System)







Sedan, coupe, convertible

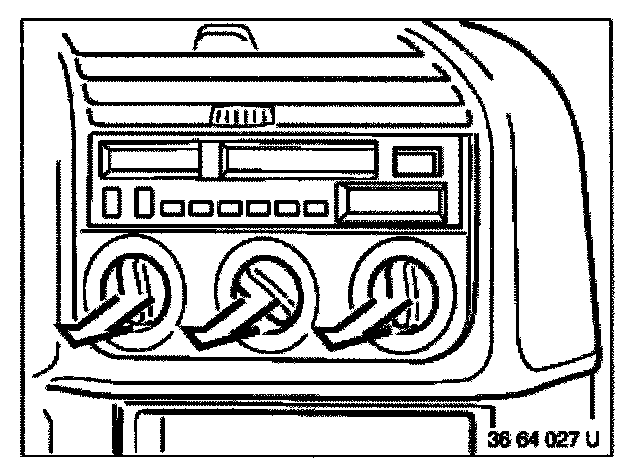

Pull off control knobs.

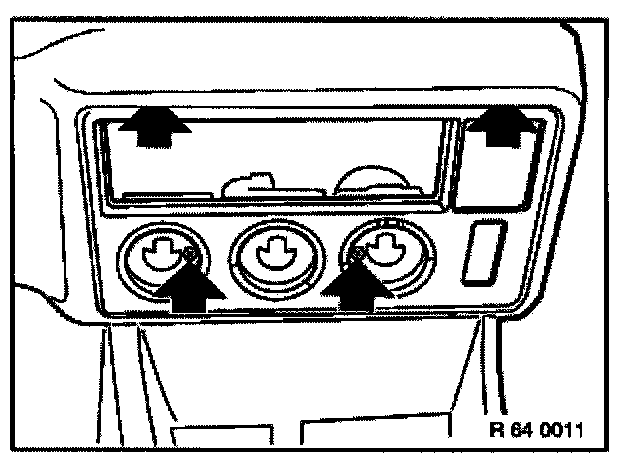

Remove screws and pry off front panel.







Compact
Remove clock.
Press out switch for heated rear window. Pull off control knobs.







Unscrew bolts.







Pry off front plate.
