Replacing Final Muffler

Replacing Final Muffler

Special Tools Required:
00 2 210 Cutting Tool

Warning! Scalding hazard!

These tasks should only be carried out on an exhaust system that has cooled down!

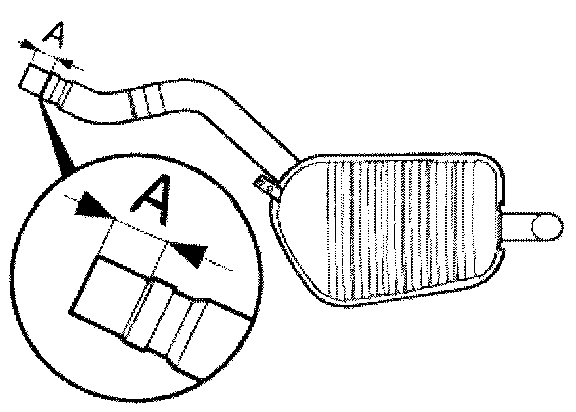

Determining Cutting Point:





Carry over length of new rear muffler to installed rear muffler.
Mark out cutting points.





Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.





Detach rubber mounts (1) from bracket and remove rear muffler.
Remove vibration damper (2) and install on new rear muffler.
Install rubber mounts for suspension from body on new rear muffler.





Installation:
Connect new rear muffler and center muffler by means of clamping sleeve.
Cutting point is in middle of clamping sleeve.
Align exhaust system and clamping sleeve in such a way that there is sufficient spacing to adjoining components.
