Z3 Coupe 3.0i (E36/7) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Auxiliary Fan
Auxiliary Fan

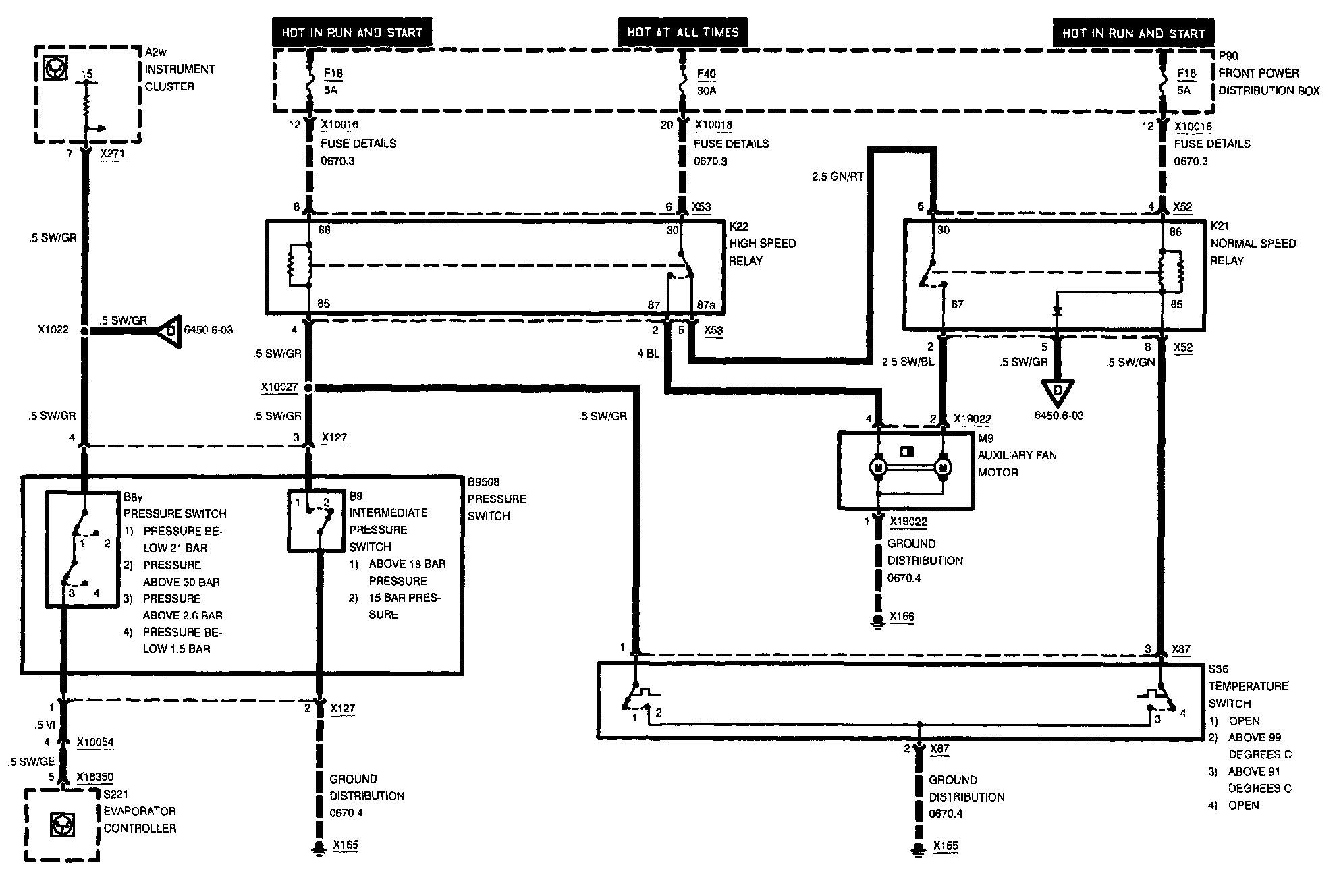

Integrated Heating - And Climate Control: Auxiliary Fan (M Versions):
IHKA : Auxiliary Fan:

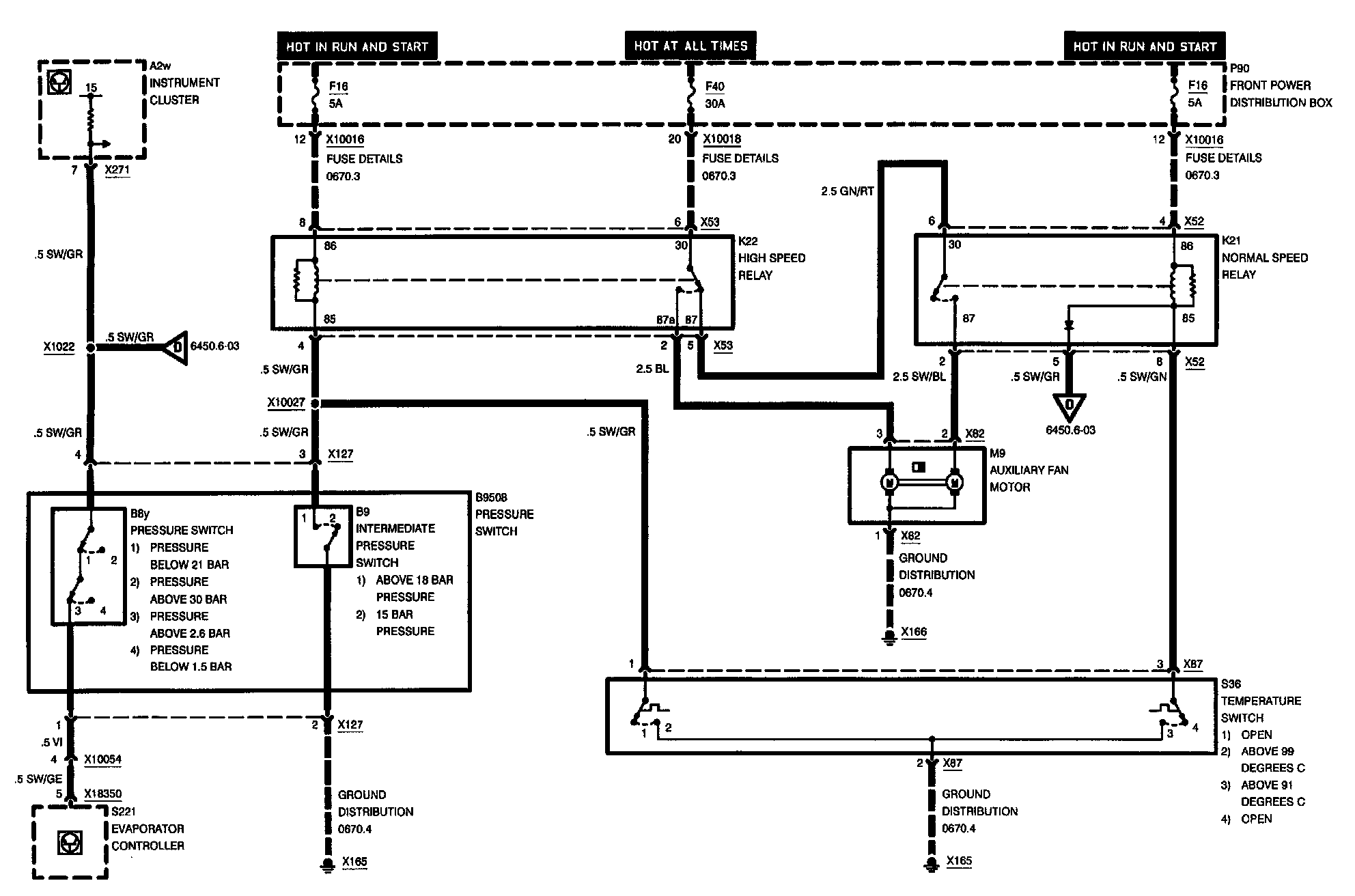

Integrated Heating - And Climate Control: Auxiliary Fan (Z3 Versions):
