Removing and Installing/Replacing Entrance Cover Strip (Interior), Front Left or Right



51 47 000 Removing And Installing/Replacing Entrance Cover Strip (Interior), Front Left Or Right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

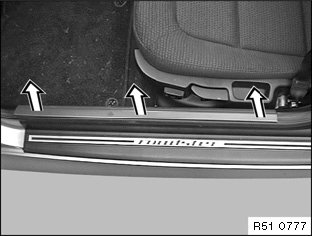

Pull rocker panel strip upwards to unclip.

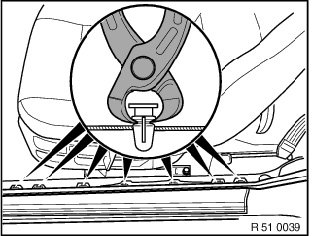

If necessary, squeeze clips together with pliers and lift out (head of pliers ground smooth).

Installation:
Soak clips in water for a short time.

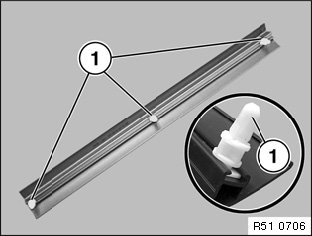

Slide on clips (1) and align.
If necessary, replace damaged clips.
