Replacing Oddments Tray (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

51 16 201 Replacing Oddments Tray (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

Removing center console.

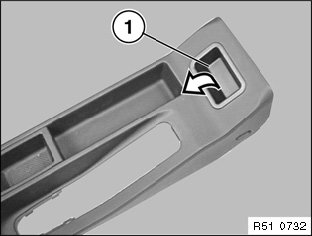

Unclip tray (1).







Installation:

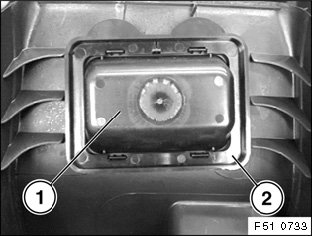

Clip tray (1) correctly into frame (2).







Unclip tray (1).

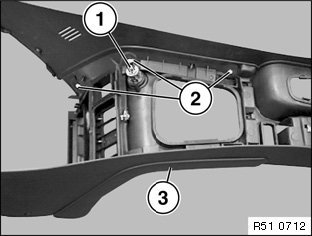

Remove cigar lighter (1).
Unfasten left / right screws (2) and remove left / right finisher strips (3).

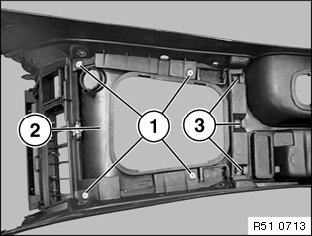

Unfasten screws (1) and remove selector lever finisher strip (2).

Installation:
Insert correctly in supports (3).

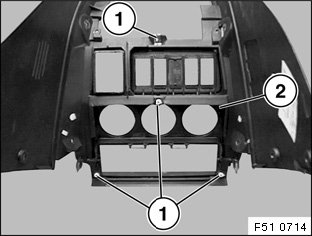

Unfasten screws (1) and remove radio finisher strip (2).







Remove speed nuts (1).
