Rear Bumper Bracket: Service and Repair

51 12 801 Replacing Bracket For Bumper, Rear Left Or Right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

(Bumper removed)
(If necessary, remove rear bumper)

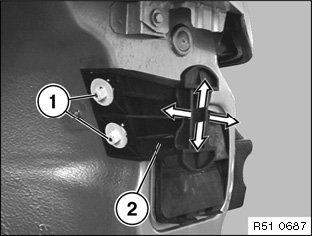

Unfasten screws (1) and remove bracket (2).

Installation:
5AZ Bracket to side panel 3 Nm
Adjust rear bumper.
