Removing and Installing/Replacing CD Changer

Removing And Installing/Replacing CD Changer (Z3 Roadster)

Necessary preliminary tasks:
- Partially remove panel for luggage compartment partition.







Release screws (1) and lower holder (2) complete with amplifier and CD changer.







Disconnect plug connections (1) and (2) on amplifier.







Disconnect plug connection (1) and remove holder (2) complete with amplifier and CD changer.

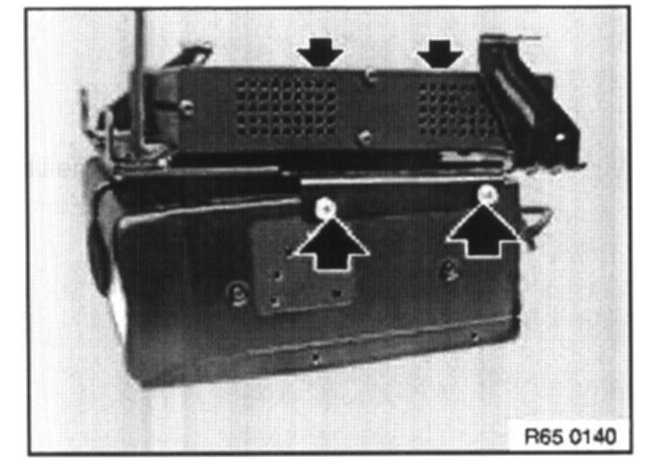

Release screws on both sides and remove CD changer from holder.







Replacement:
Unscrew transportation locks (1) from CD changer (2).
