Replacing Both Windshield Wiper Arms

Removing And Installing/Replacing Both Windshield Wiper Arms

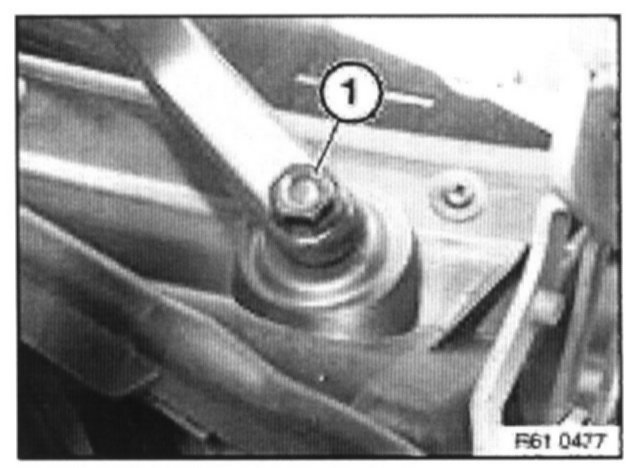

Remove cover (1).

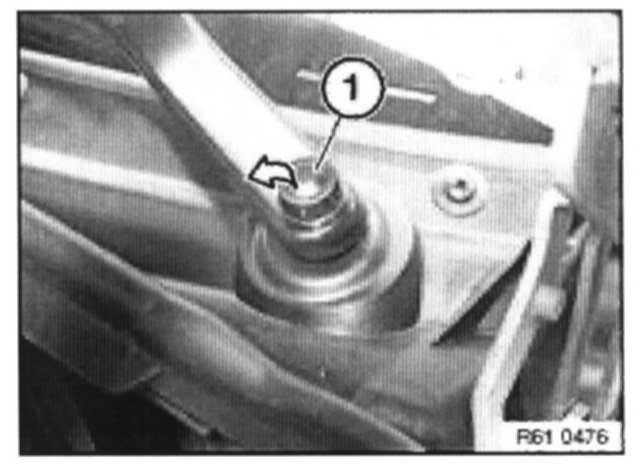

Unscrew nut (1).

Installation Note:

After waiting 15 minutes, retighten nut to appropriate torque.


CAUTION: Do not bend wiper arm during removal (risk of breakage).

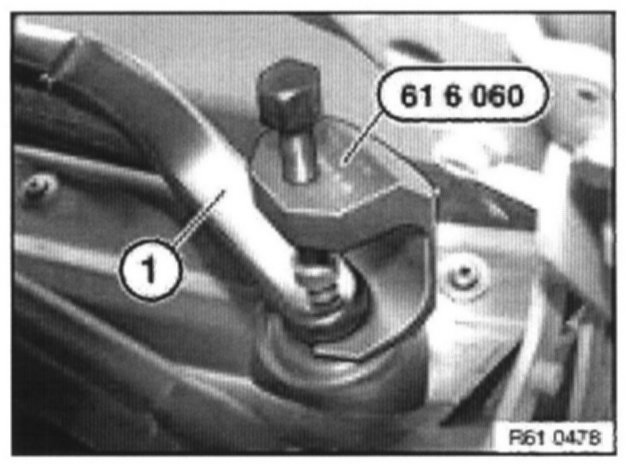

Detach windshield wiper arm with special tool 61 6 060.

Replacement:
Remove wiper blade.







Installation Note:

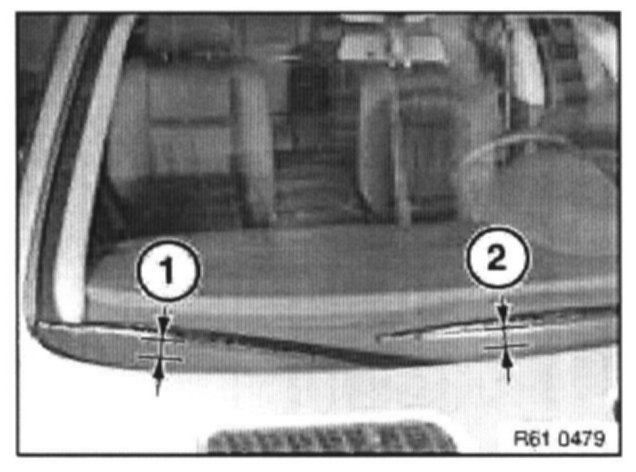

Adjust position of wiper arm in question in rest position (measured between wiper lip and top edge of cowl panel cover).
Then tighten down wiper arm and check position of relevant wiper arm again.
1. 54 ± 3 mm
2. 55 ± 3 mm
