Replacing radial seal for drive shaft (S5D 280Z)

Note: After completion of work, check transmission oil level.

Caution: Use only the approved gear oil in this transmission.

Failure to comply with this requirement will result in serious damage to the transmission.

Remove transmission. Remove guide tube.

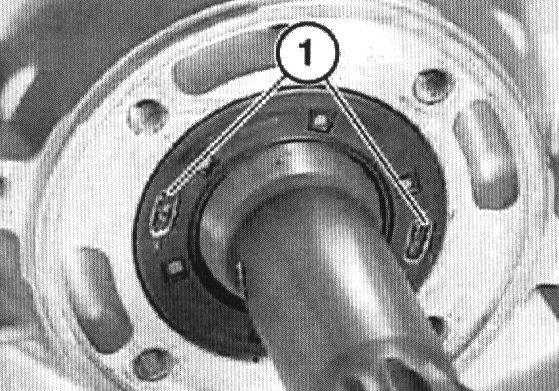

Note: Two covered removal holes (1) are located on front end of radial sealing ring.

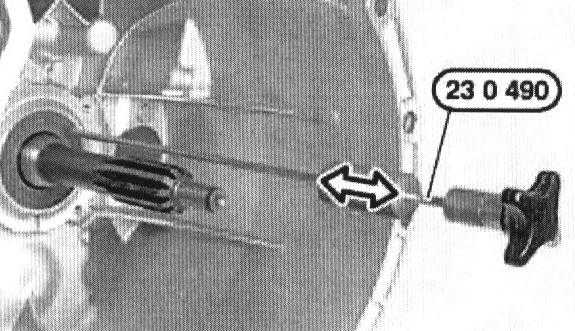

Screw special tool 23 0 490 into one of two removal holes.

Pull radial sealing ring out of transmission housing with impact weight.





Slide special tool 23 2 380 onto input shaft.

Coat sealing lips of radial seal with transmission oil.

Push radial seal (1) onto drive shaft up to housing.

Remove special tool from drive shaft.

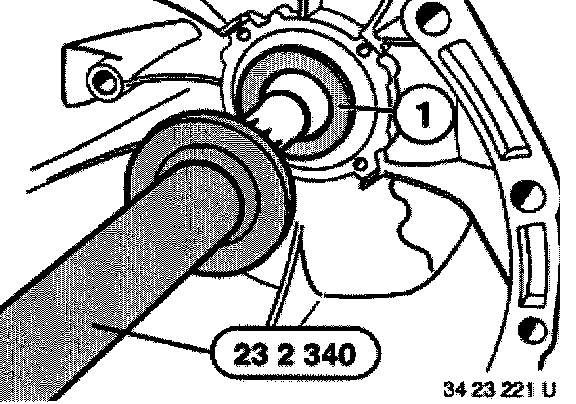

Drive radial seal (1) firmly home with special tool 23 2 340.

Note: To drive in: use plastic hammer.
