Replacing Front Left or Right Safety Belt (Complete Unit)

Removing And Installing Or Replacing Front Left Or Right Safety Belt (Complete Unit)

Removing inertia reel unit:
Remove panel for door pillar (top).







Move front seat upwards.

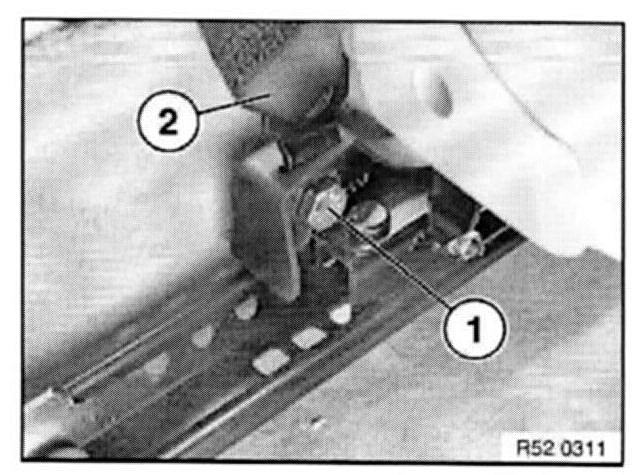

Release seatbelt screw (1) on front seat and feed out seatbelt strap (2).

Installation Note: Tightening torque, Seat belt to seat 45 Nm.







Release screws (1).
Remove belt guide (2).

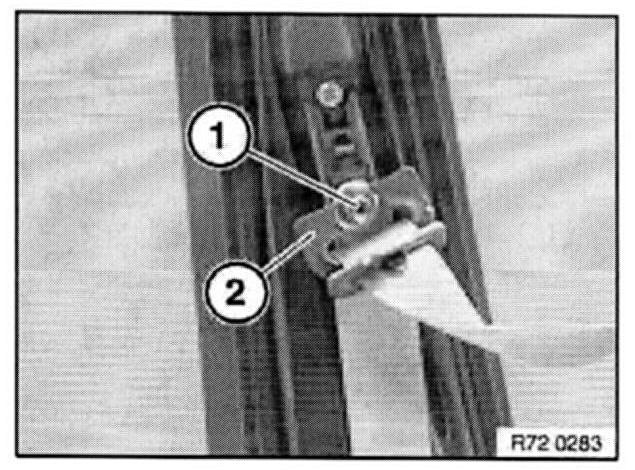

Slacken nut (1).
Remove reversing clip (2) on seatbelt height adjuster.

Installation Note: Tightening torque, Seat belt at belt height adjustment (reversing clip) 31 Nm.







Removal of seatbelt height adjuster only:

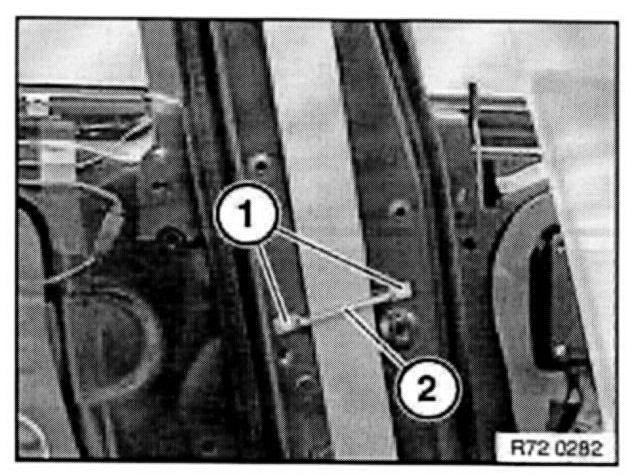

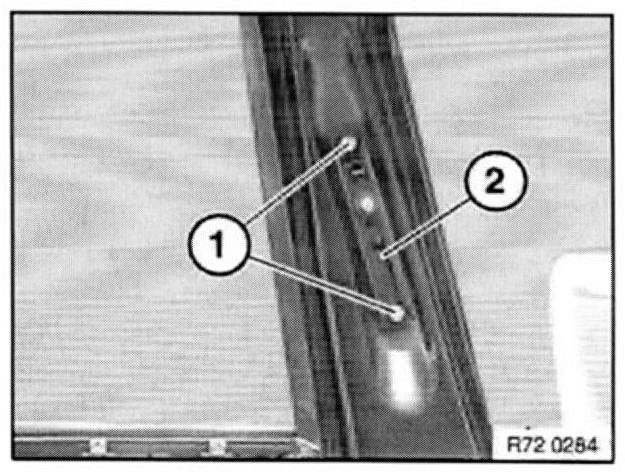

Release screws (1) simultaneously so that seatbelt height adjuster (2) does not tilt.
Remove seatbelt height adjuster (2).

Installation Note: Tightening torque, Screw of seatbelt height adjuster to counter-support plate 31 Nm.

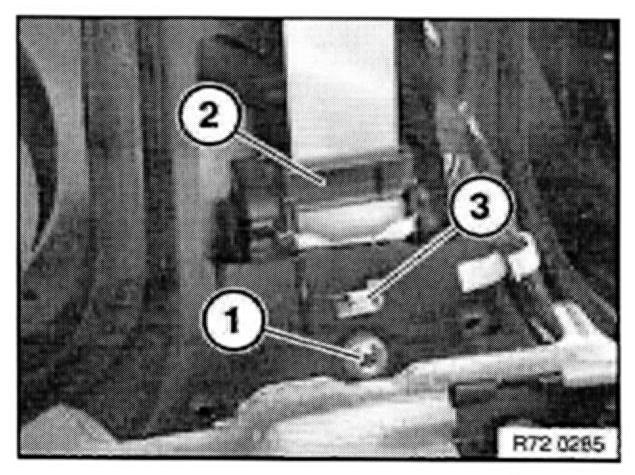

Release screw (1).
Unlock inertia reel unit (2) and remove from B-pillar.

Installation Note:
Ensure coding (3) is correctly seated.
Tightening torque, Inertial reel unit to body/B-pillar 31 Nm.

Removing belt tensioner:


WARNING:
Observe safety precautions for handling airbag modules and pyrotechnical seat belt tensioners.
Inexpert handling can trigger off the airbag or the belt tensioner and thus cause injury.







Remove front seat.
Disconnect receptacle housing on seat holder.

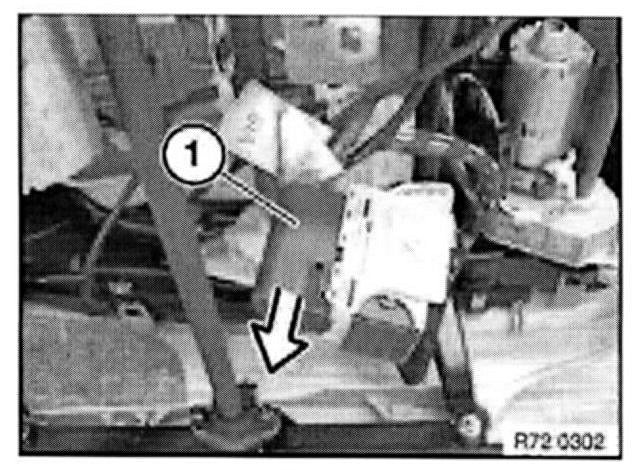

Unlock cap (1) and detach.

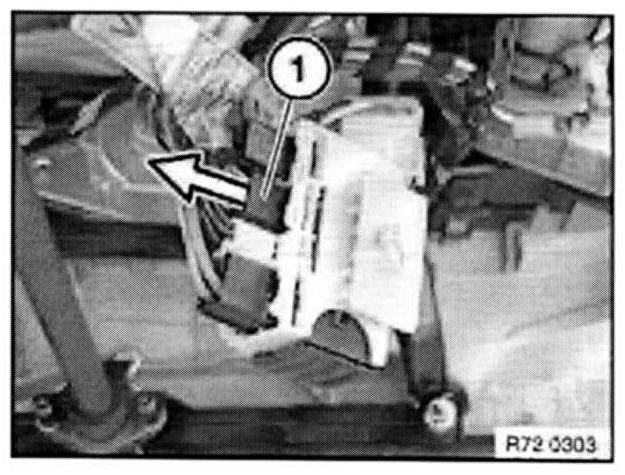

Disconnect individual plug connection (1).

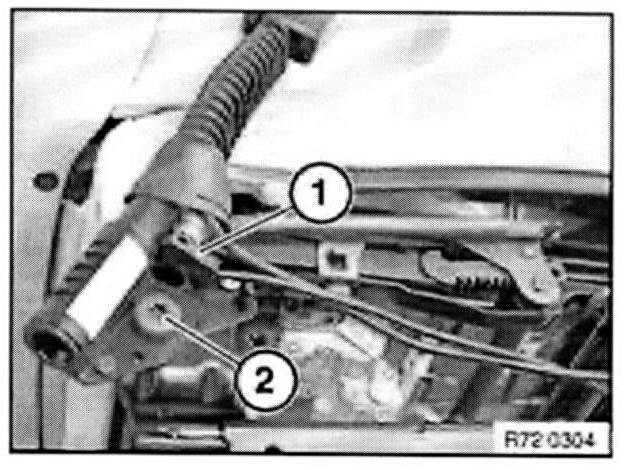

Disconnect plug connection (1) on belt tensioner.
Unclip cable holder on front seat.
Release screw (2).

Installation Note: Tightening torque, Belt buckle tensioner to seat 45 Nm.

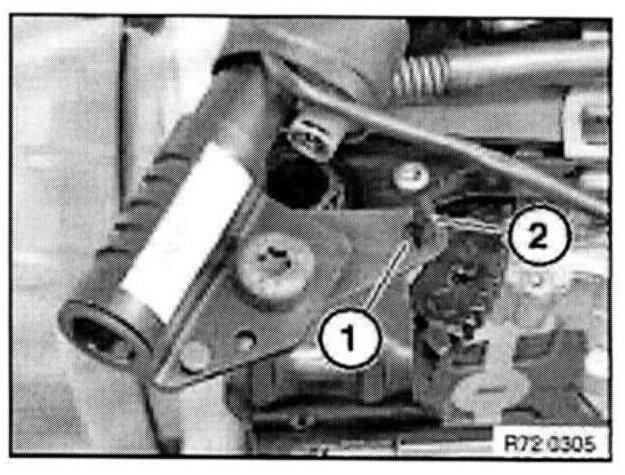

Installation Note: Position bore (1) over journal (2).
