Home >> BMW >> 2001 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management MS43 (DME Digital Motor Electronics MS43 (M54 Engine)) >> Engine Management, Signals/Auxiliary Signals (Without Automatic Transmission Up to 09/01)

Engine Management, Signals/Auxiliary Signals (Without Automatic Transmission Up to 09/01)

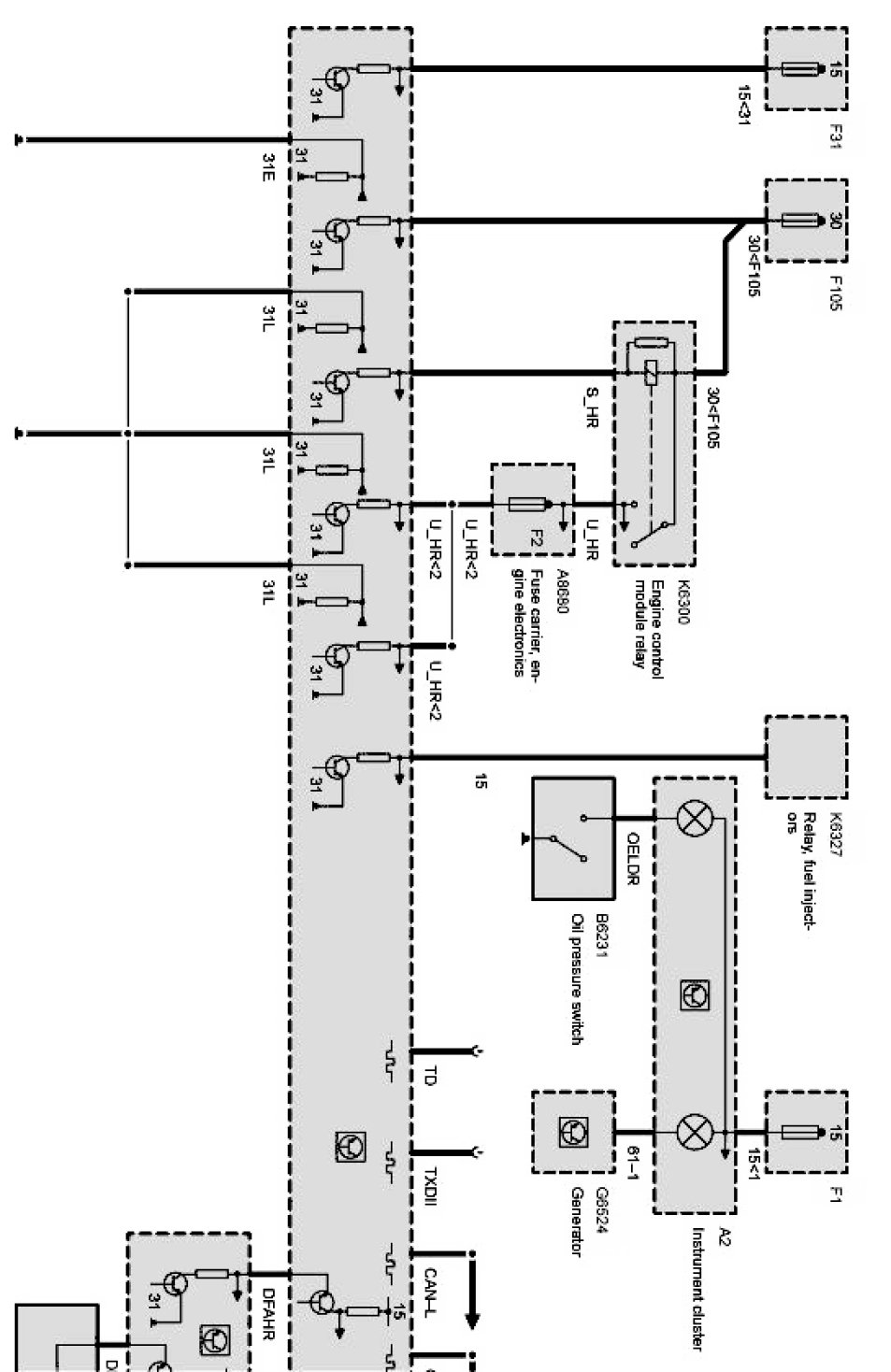

E53 Engine management, signals/auxiliary signals Part 1 Of 3:

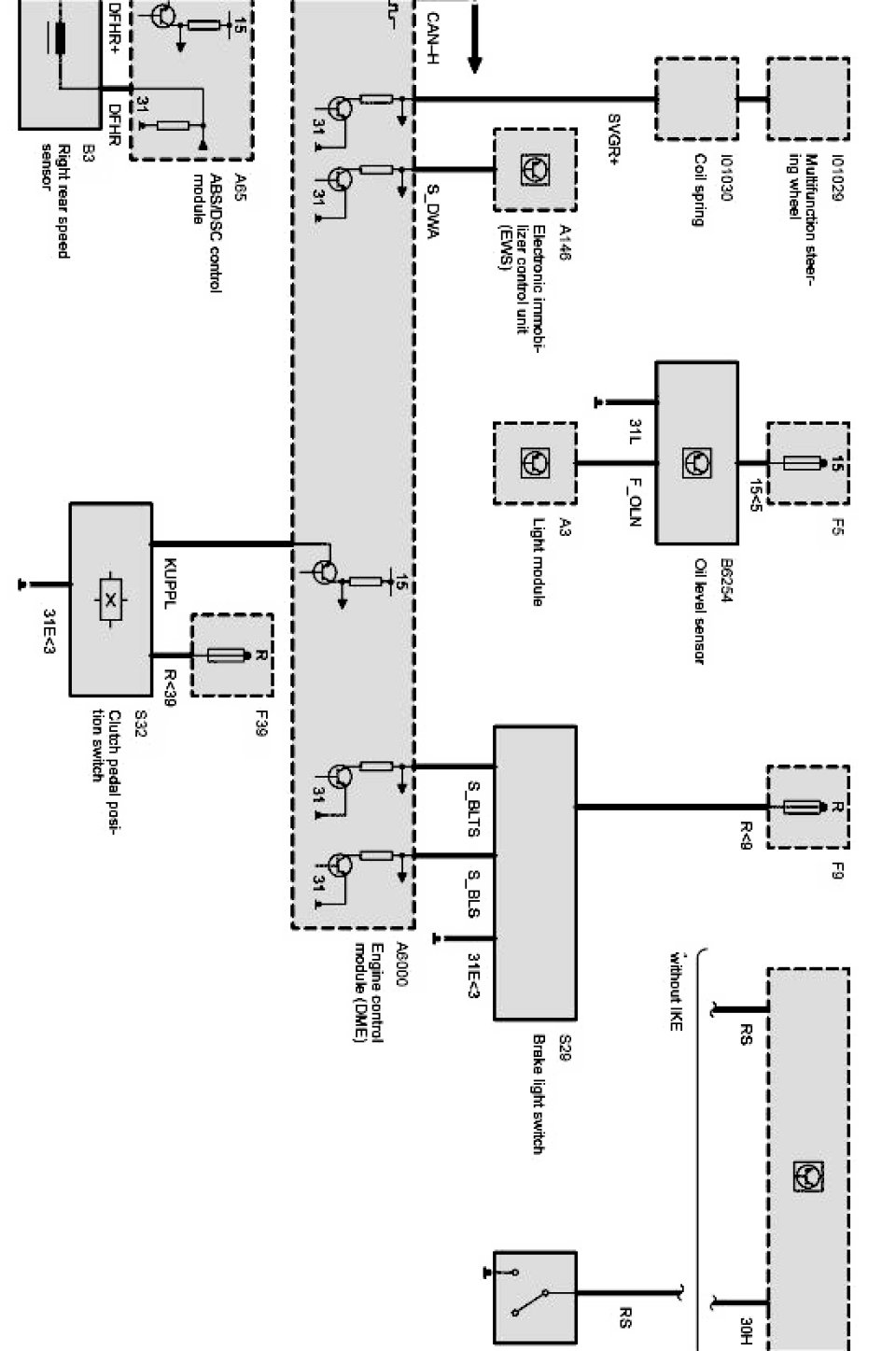

E53 Engine management, signals/auxiliary signals Part 2 Of 3:

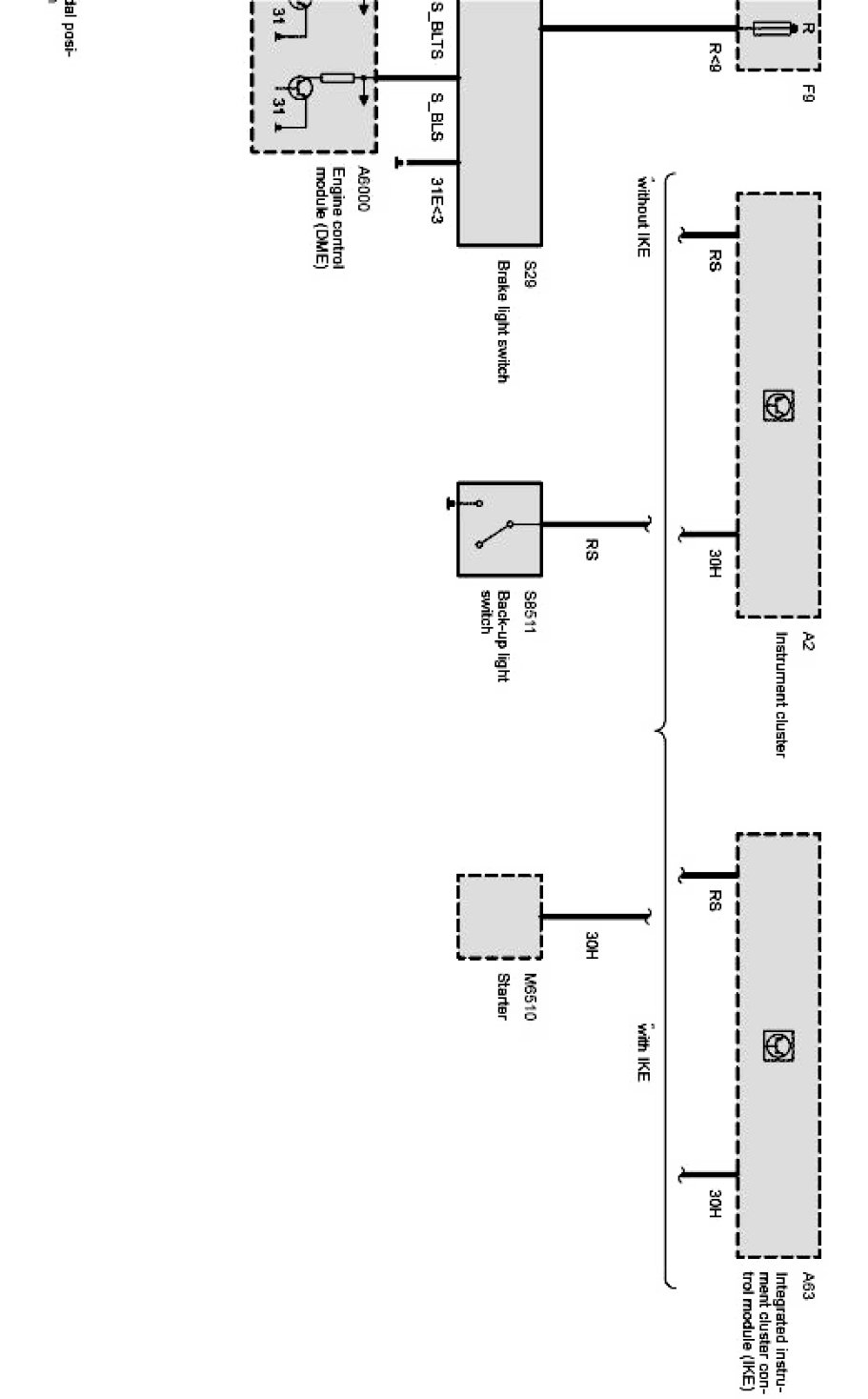

E53 Engine management, signals/auxiliary signals Part 3 Of 3:
