Home >> BMW >> 2001 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management MS43 (DME Digital Motor Electronics MS43 (M54 Engine)) >> CAN Bus >> CAN Interface (KOMBI Instrument Cluster Up to 03/01)

CAN Interface (KOMBI Instrument Cluster Up to 03/01)

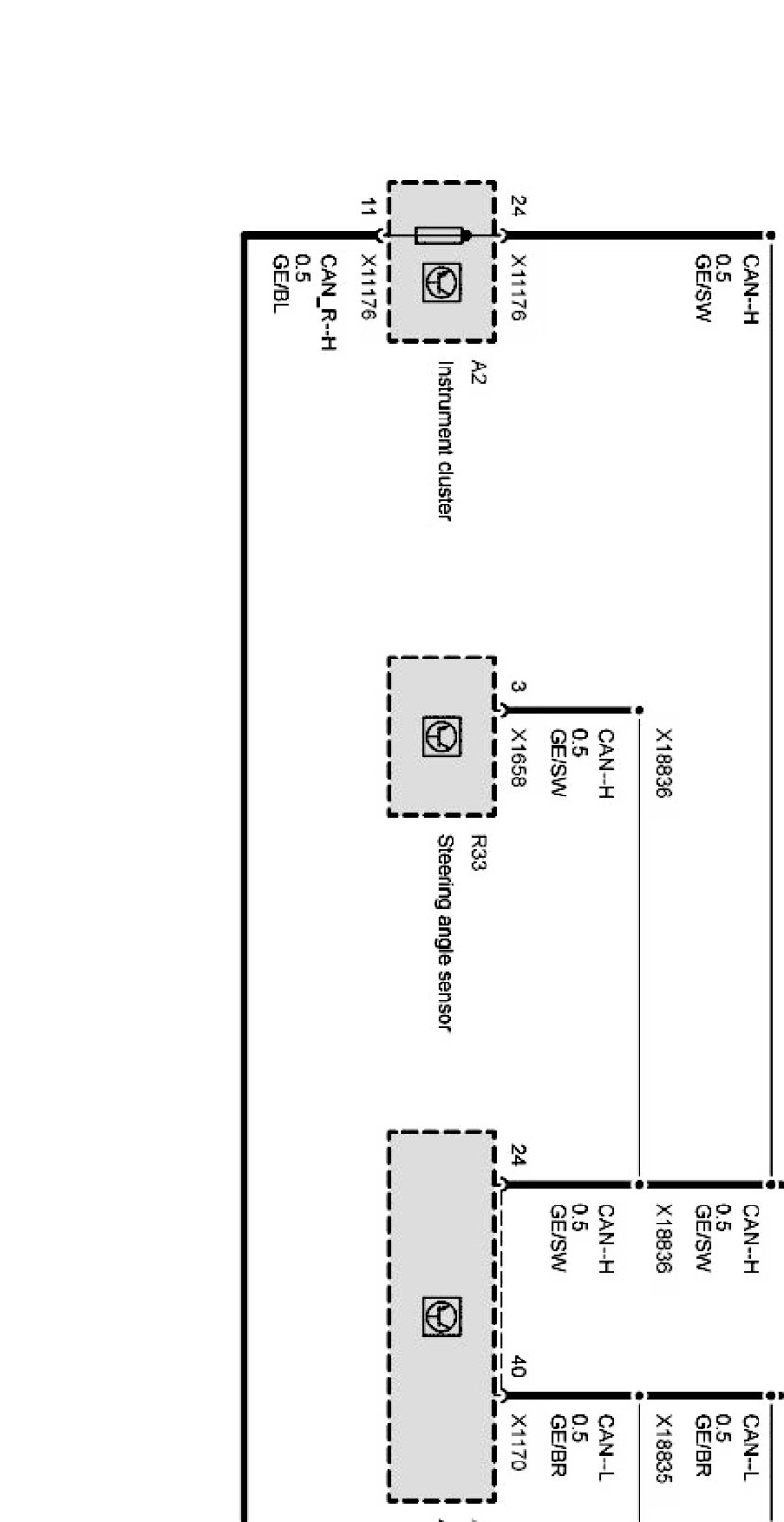

E53 CAN interface Part 1 Of 4:

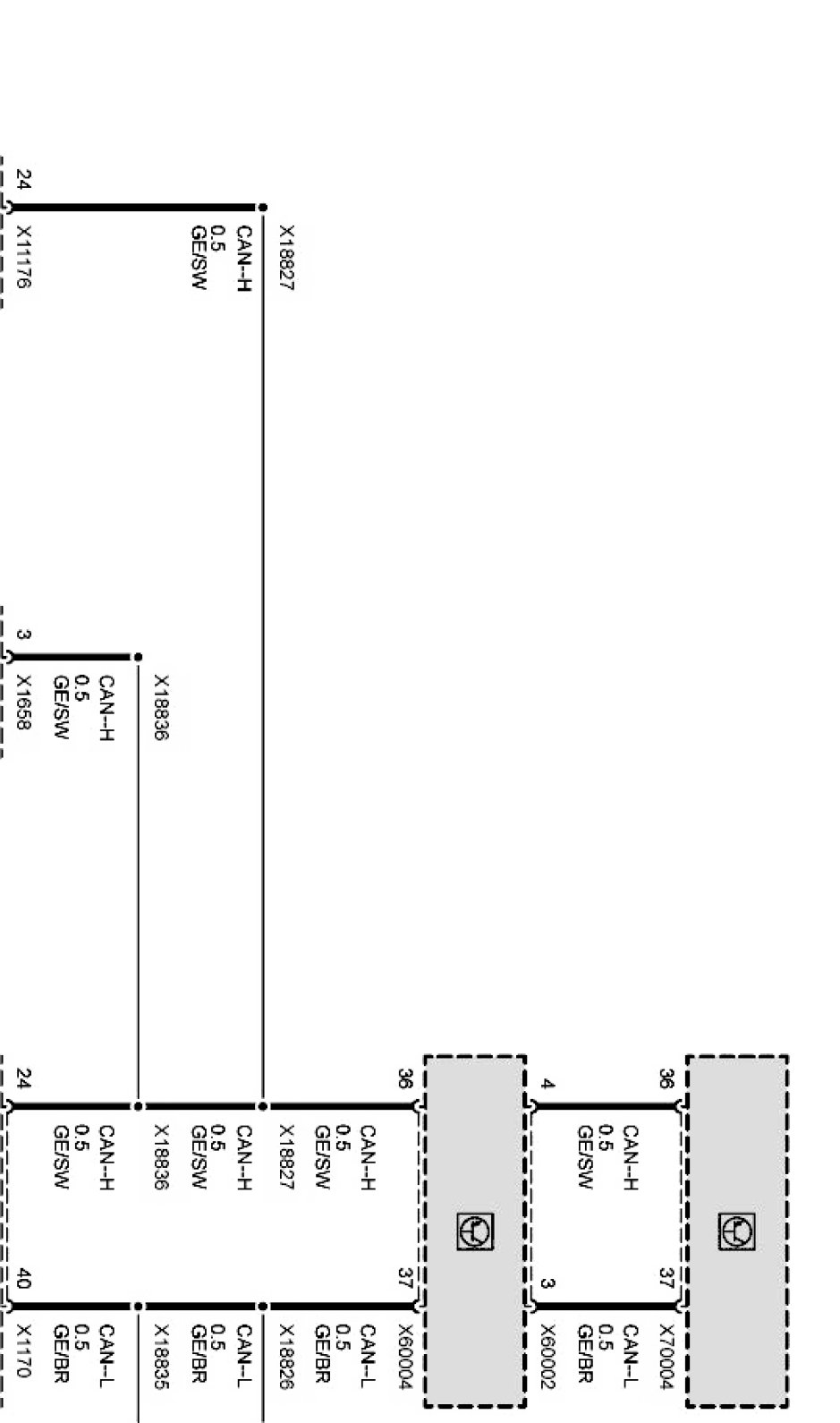

E53 CAN interface Part 2 Of 4:

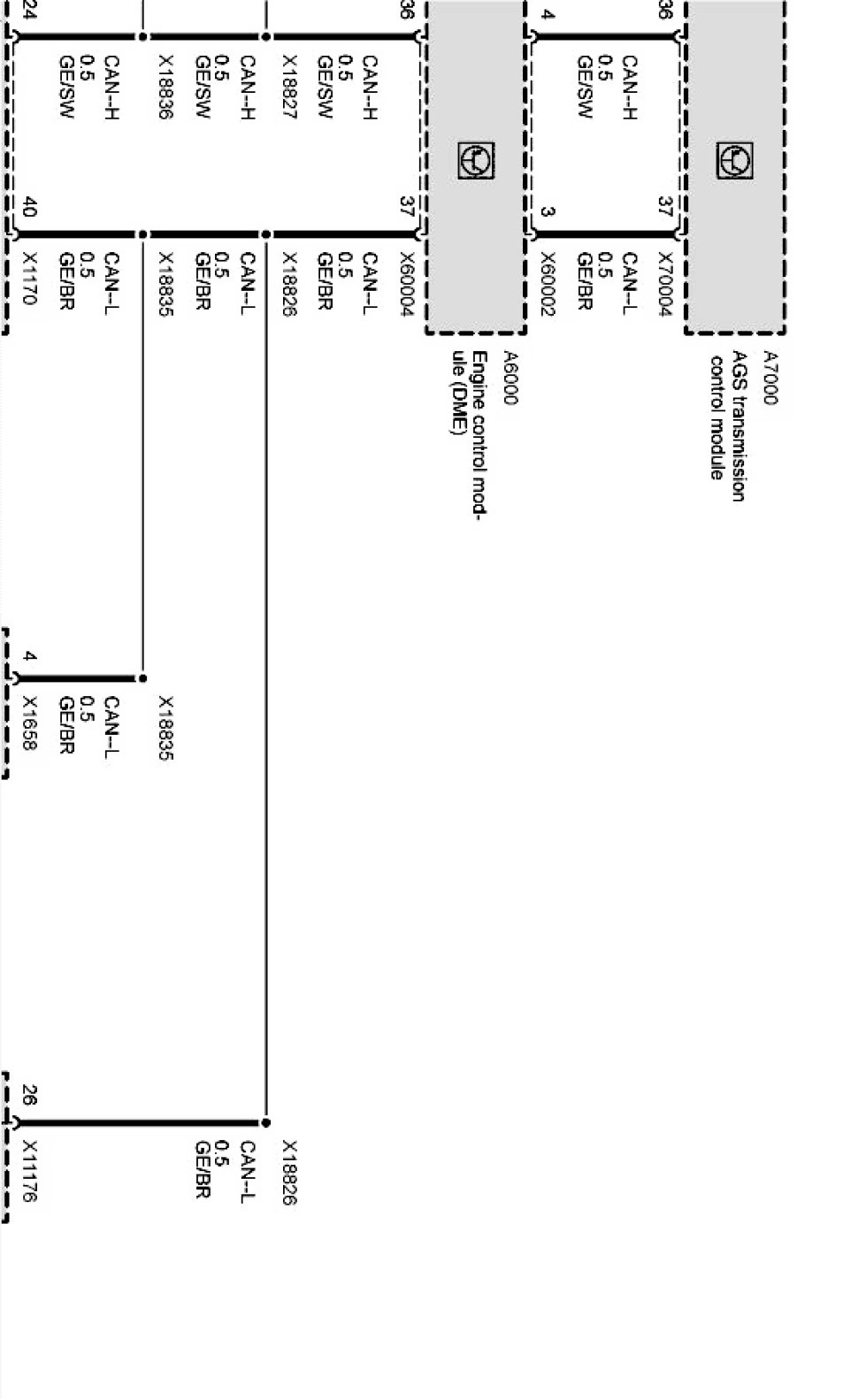

E53 CAN interface Part 3 Of 4:

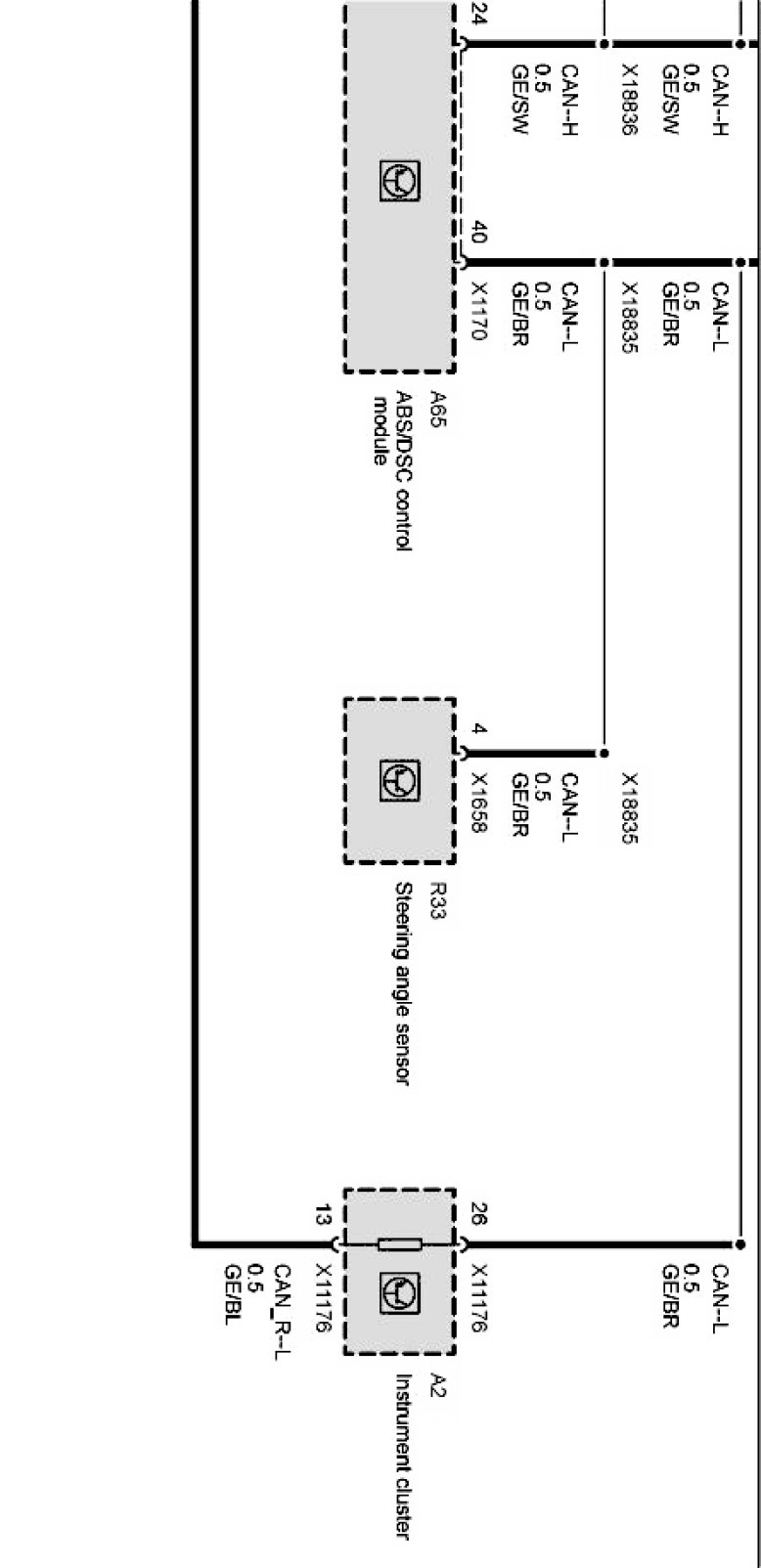

E53 CAN interface Part 4 Of 4:
