Home >> BMW >> 2001 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Chassis >> Wheels and Tires >> Supply (As of 09/99 Up to 09/00)

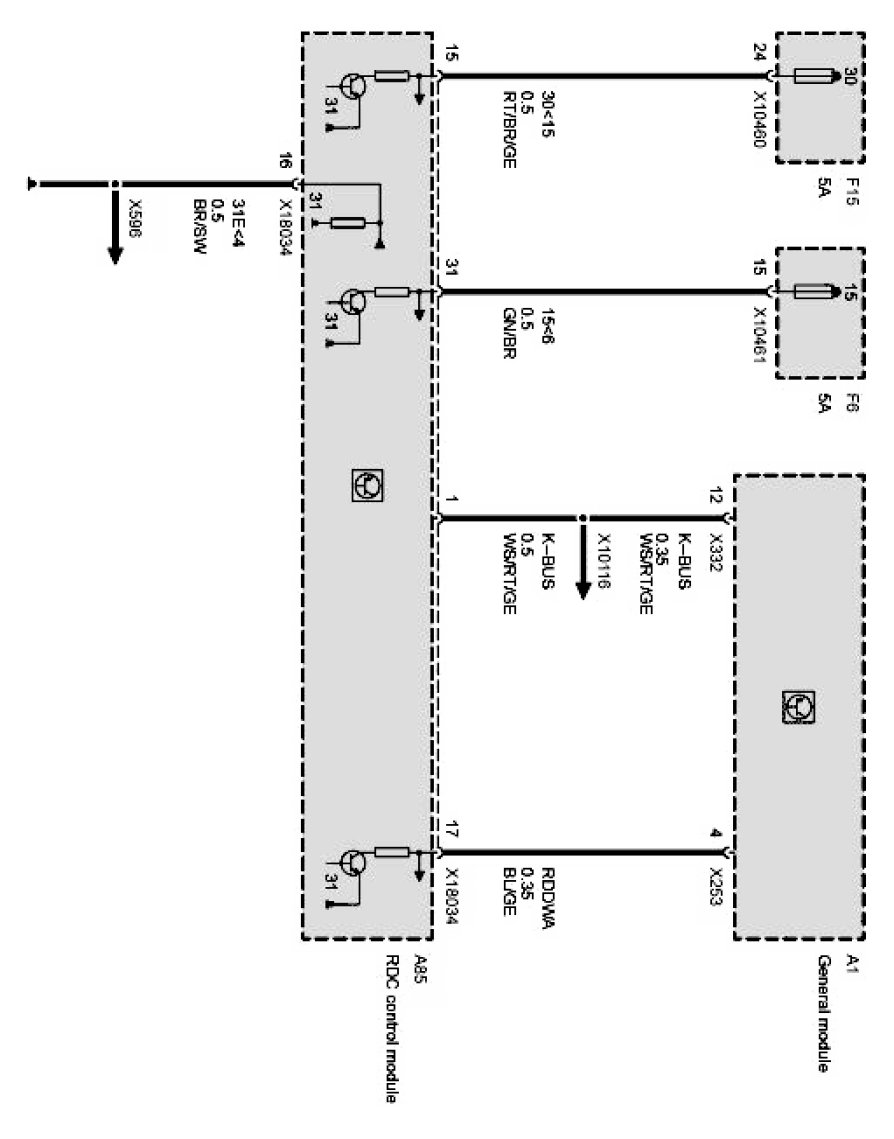

Supply (As of 09/99 Up to 09/00)

E53 Power Supply Part 1 Of 1:
