A169 Switching Center (Up to 09/00)
A169 Switching Center (Up to 09/00)

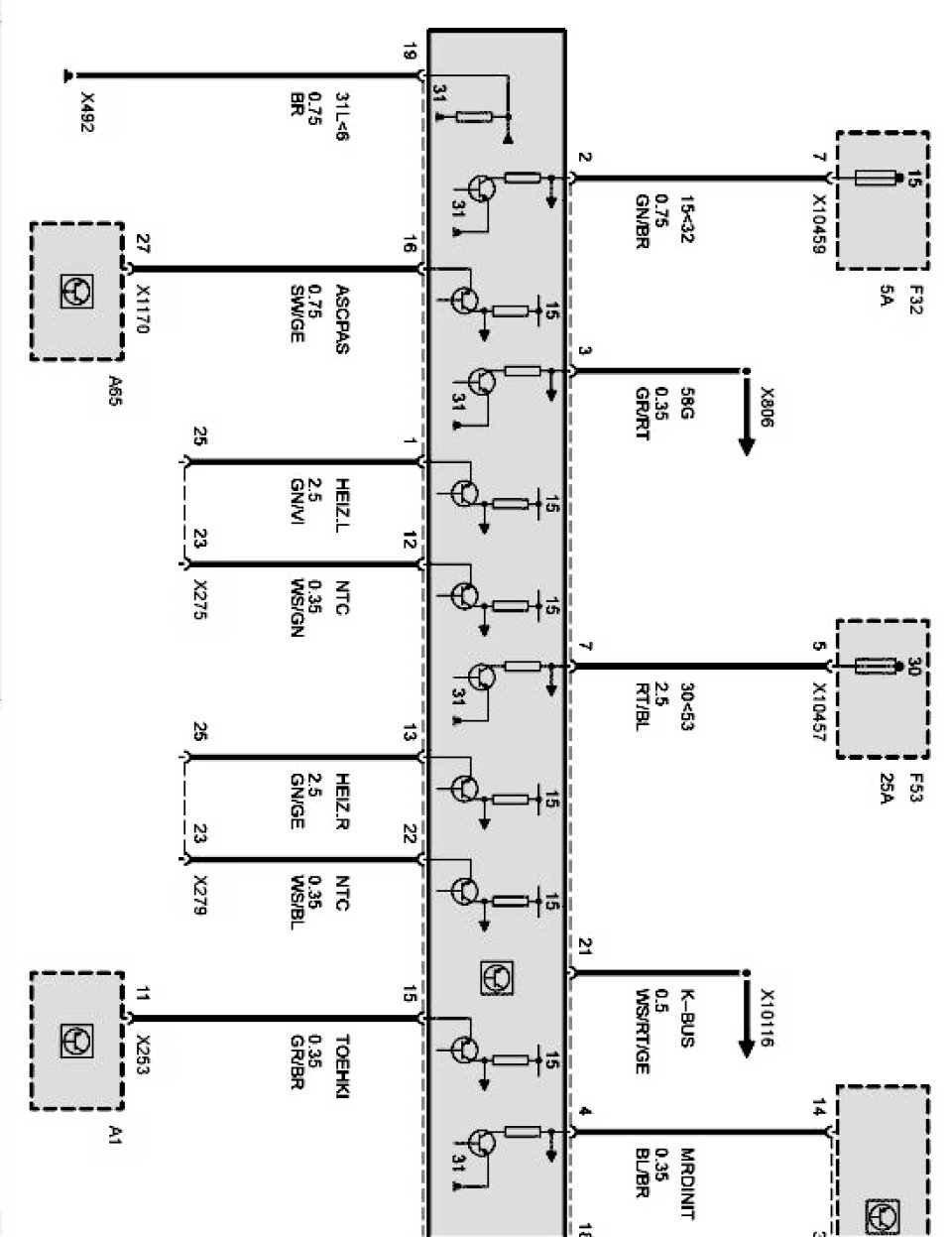

E53 A169 Switching center Part 1 Of 2:

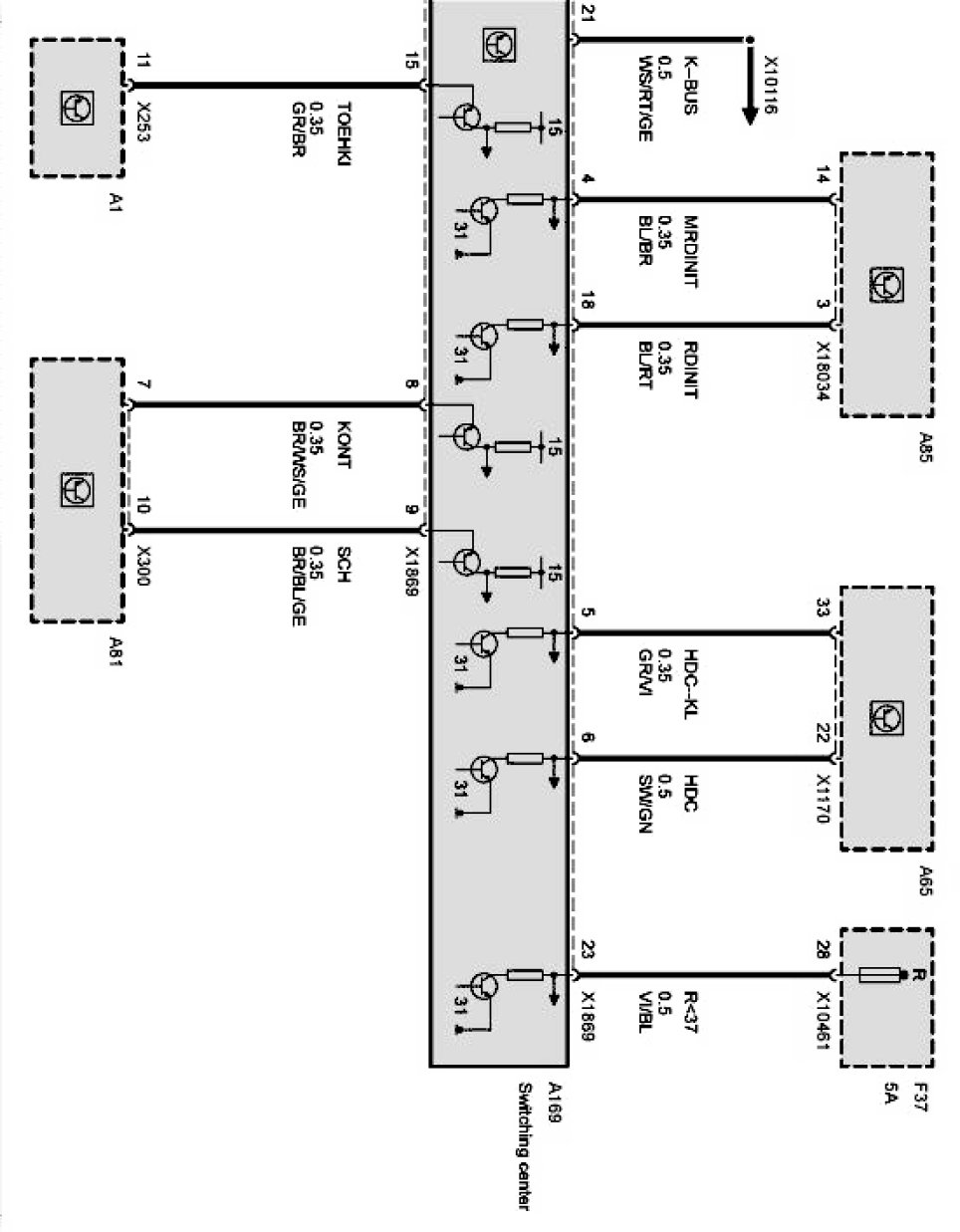

E53 A169 Switching center Part 2 Of 2:
