Luggage Compartment Lights

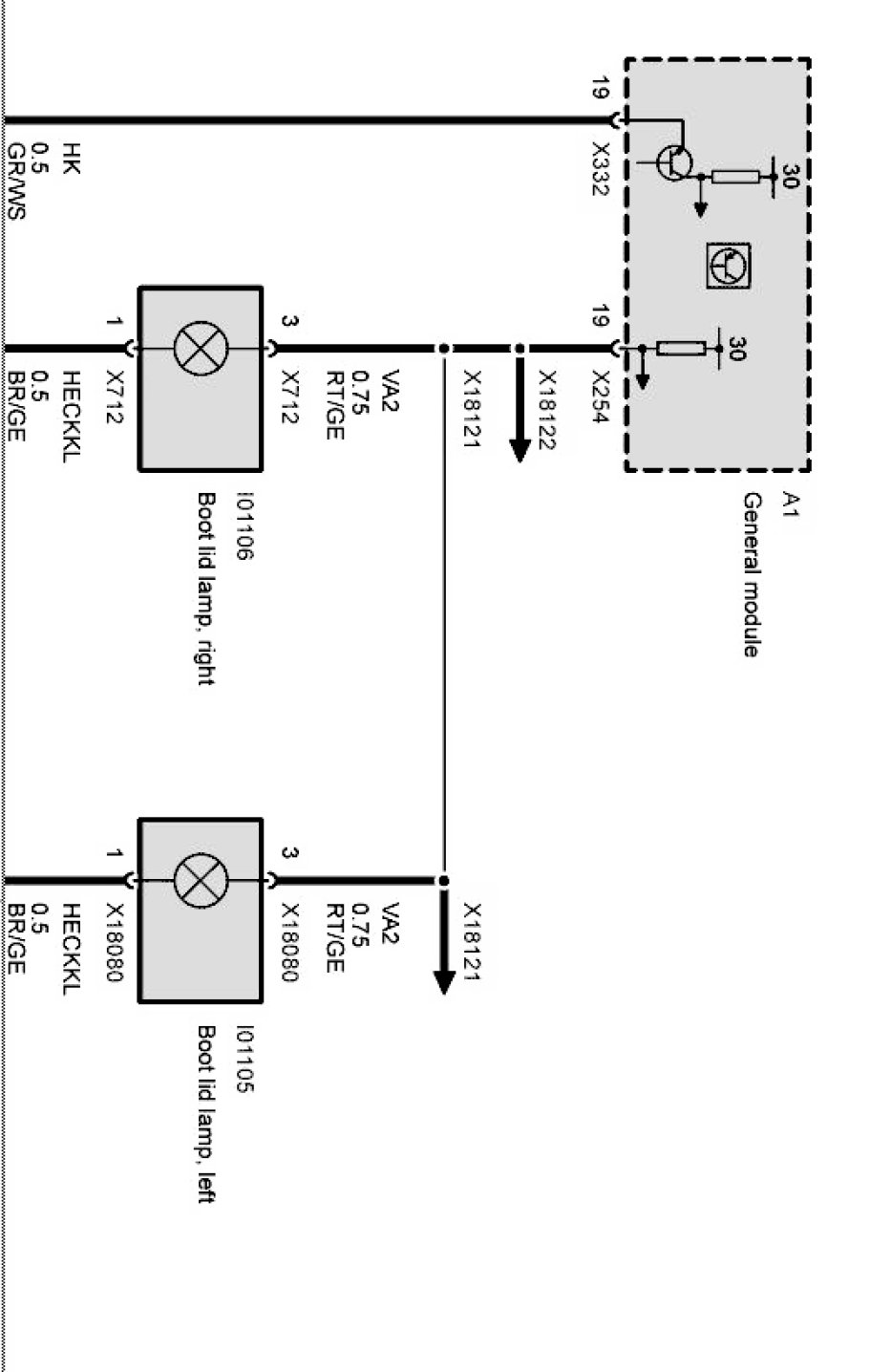

E53 Luggage-compartment lighting Part 1 Of 2:



E53 Luggage-compartment lighting Part 2 Of 2:
