Telephone (As of 03/00 Up to 03/02 W/ SES Language-Input System W/ Motorola (V Series))

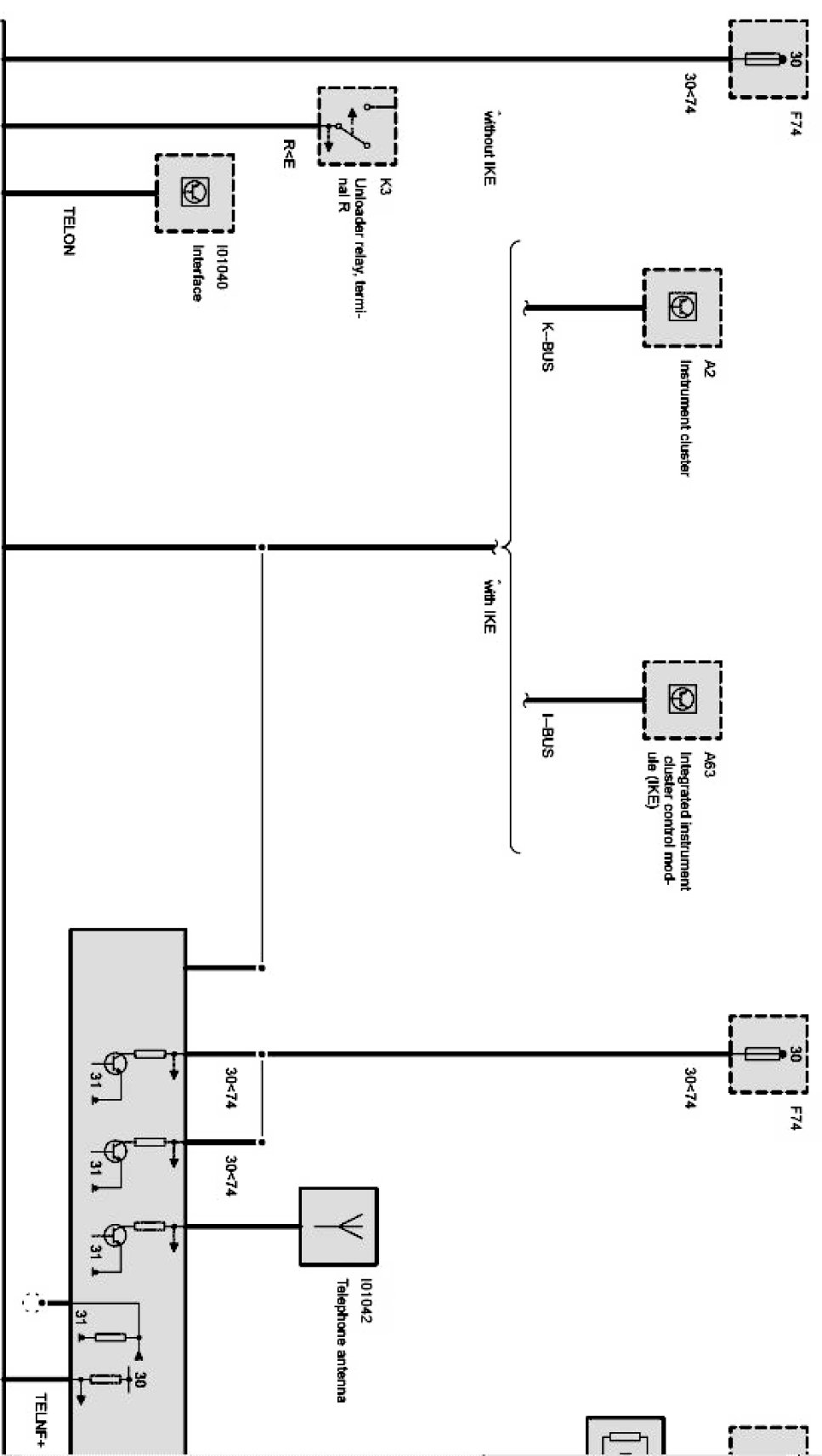

E53 Telephone Part 1 Of 6:

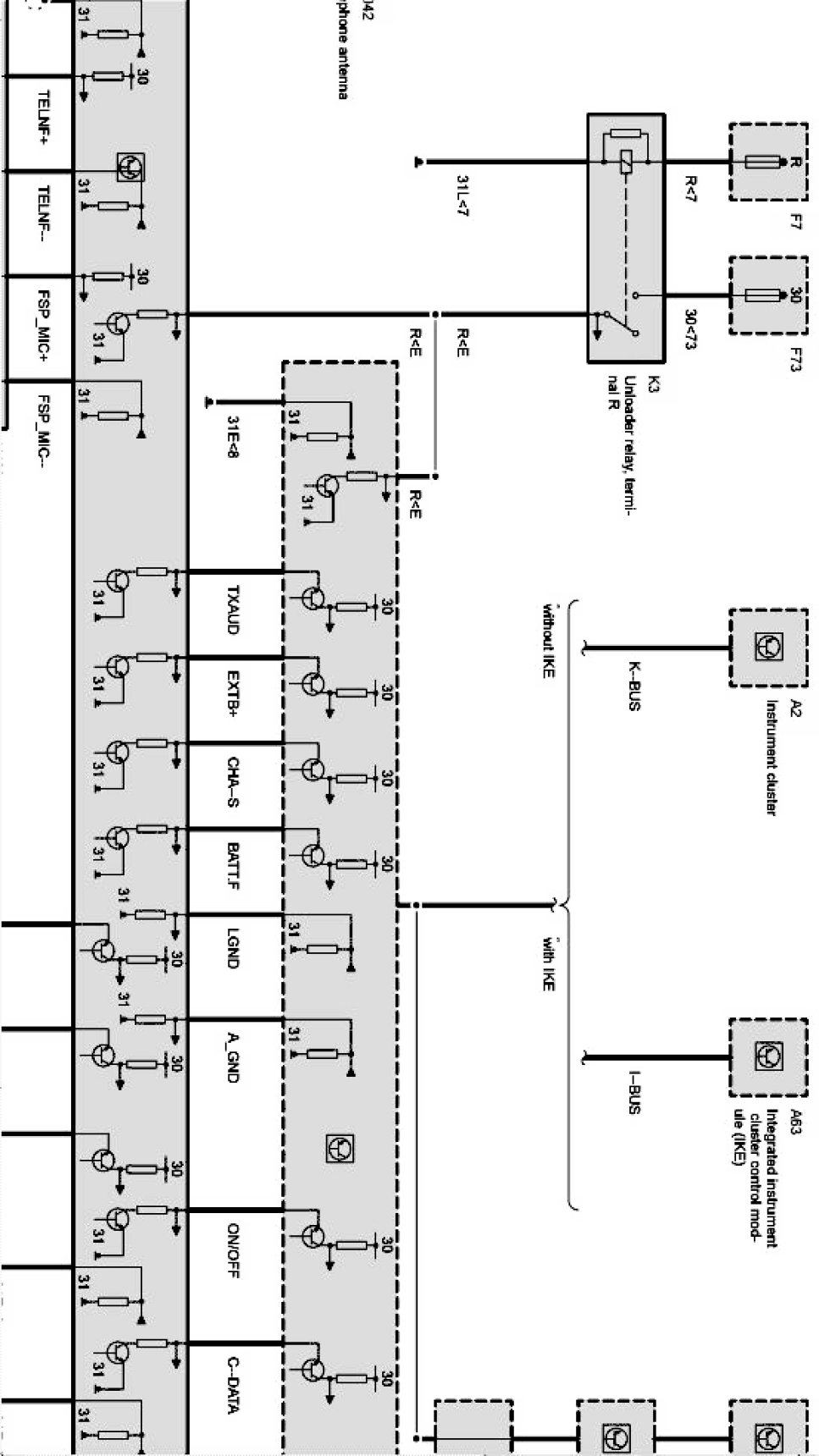

E53 Telephone Part 2 Of 6:

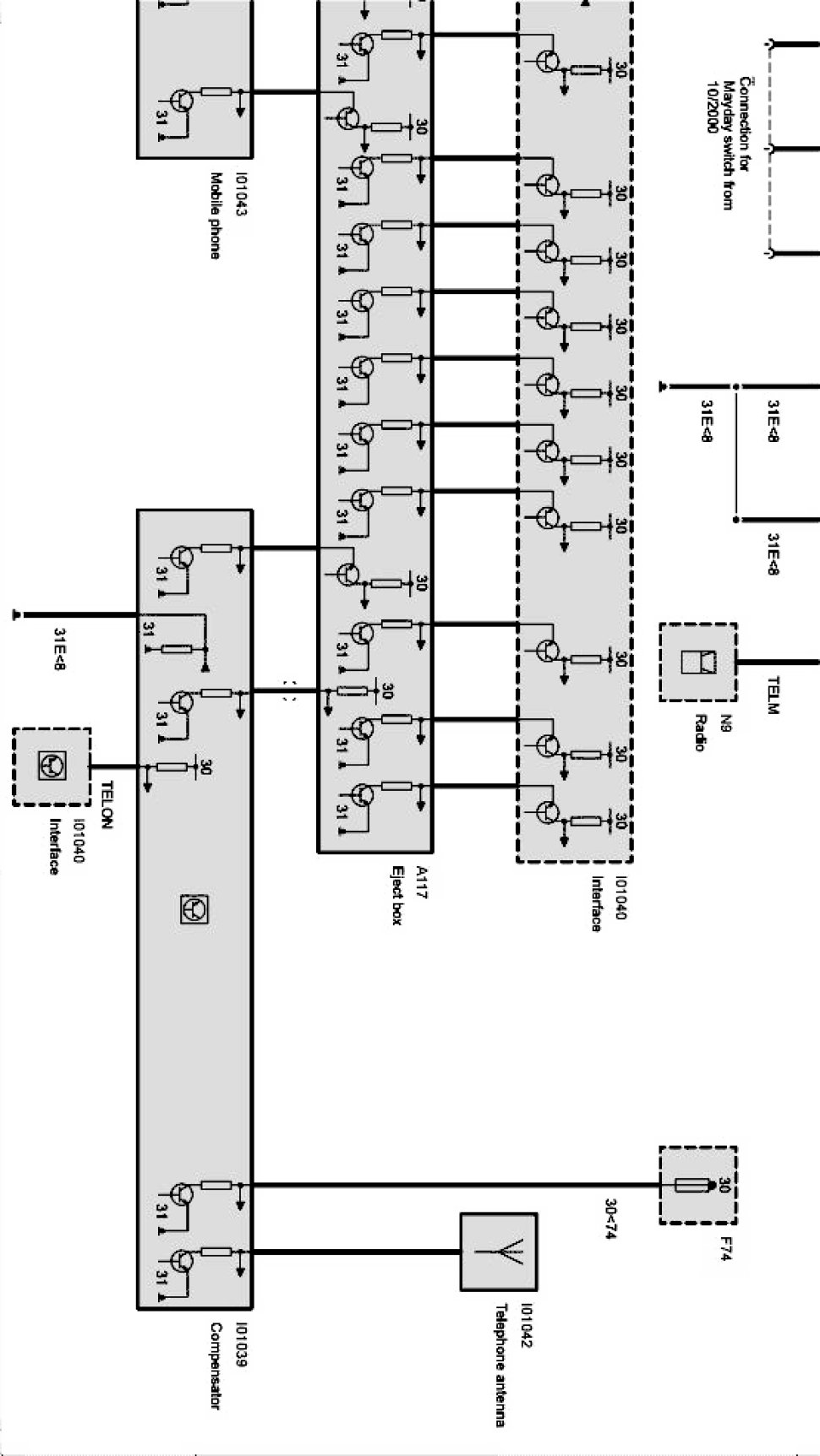

E53 Telephone Part 3 Of 6:

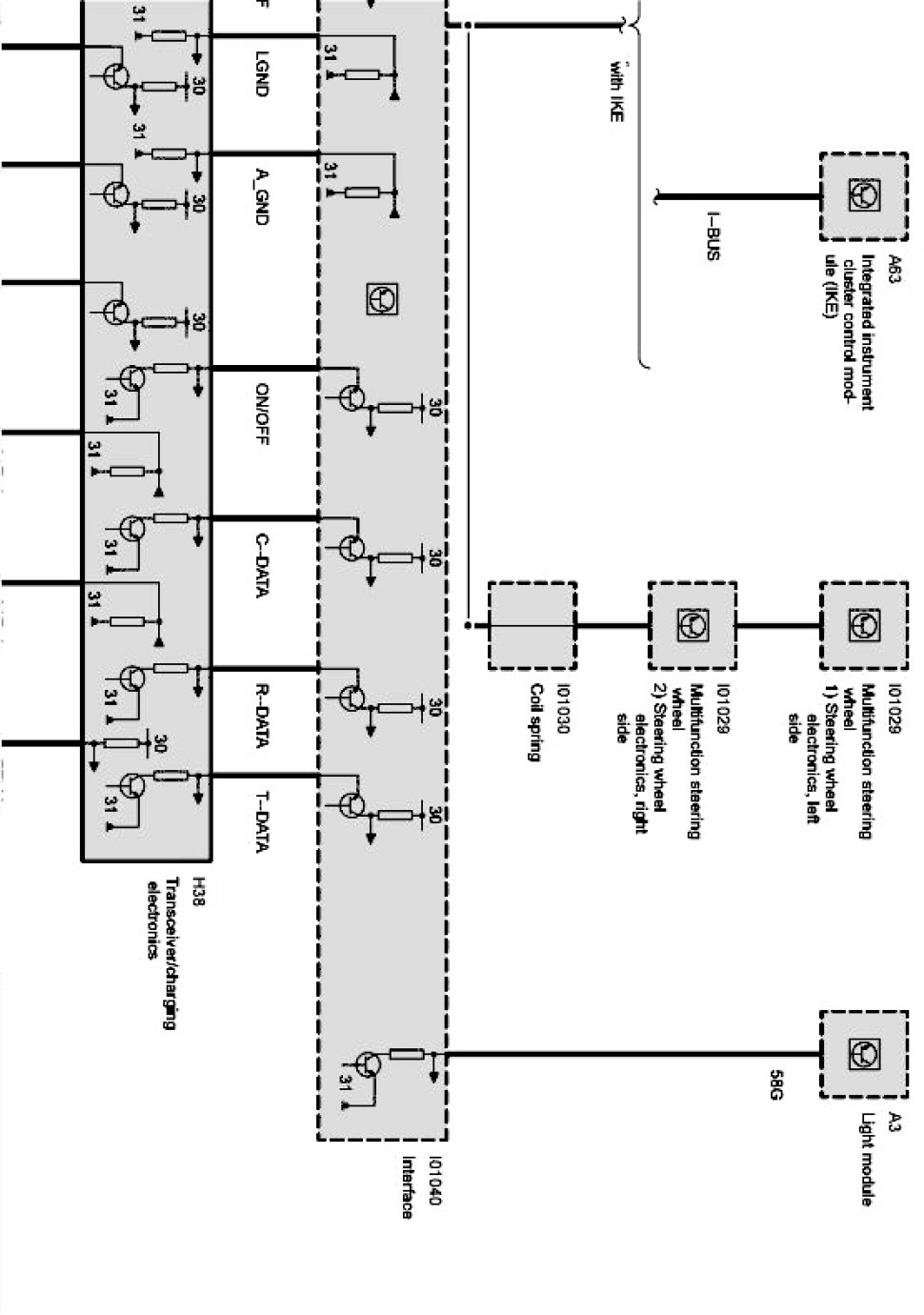

E53 Telephone Part 4 Of 6:

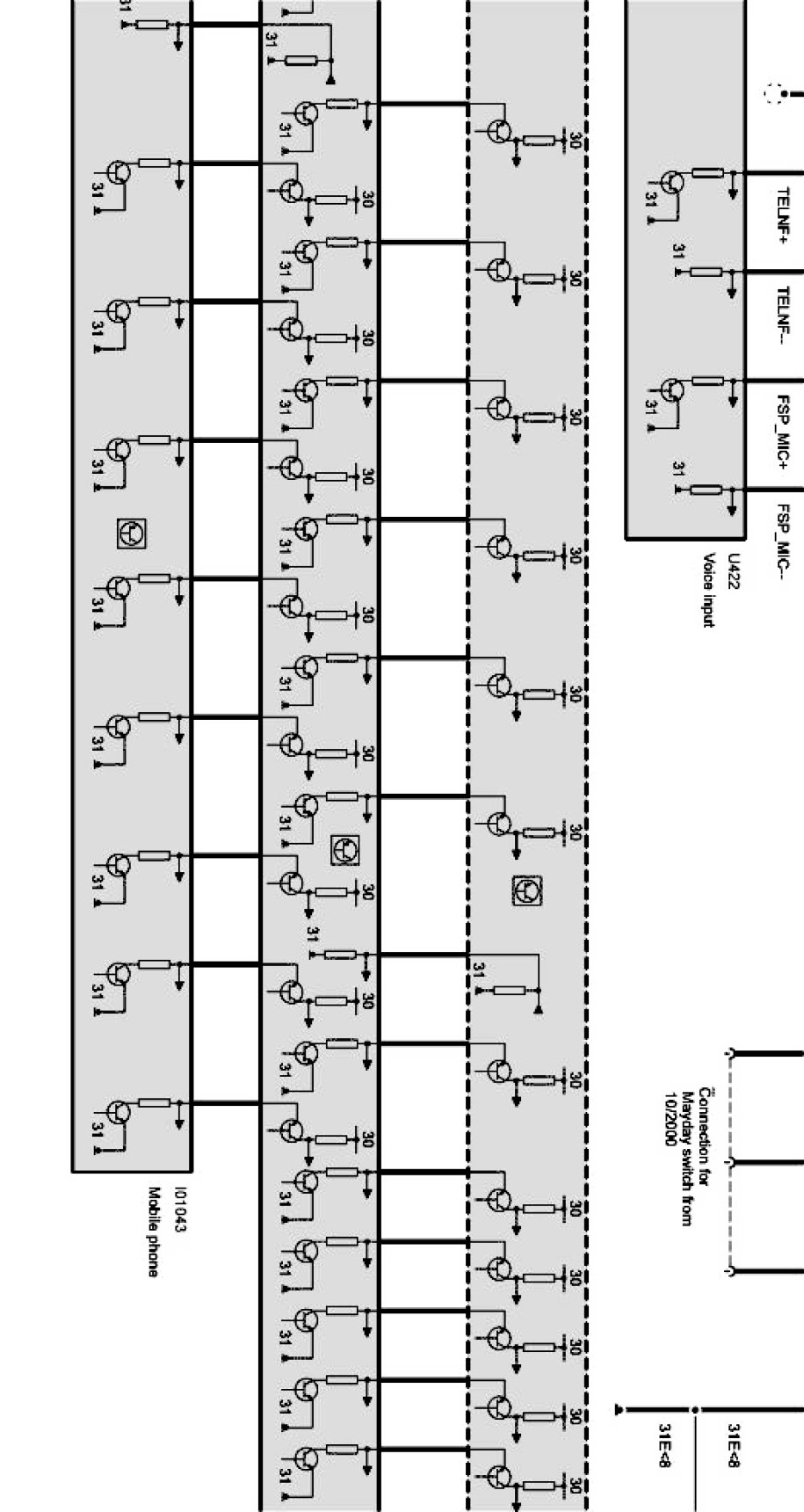

E53 Telephone Part 5 Of 6:

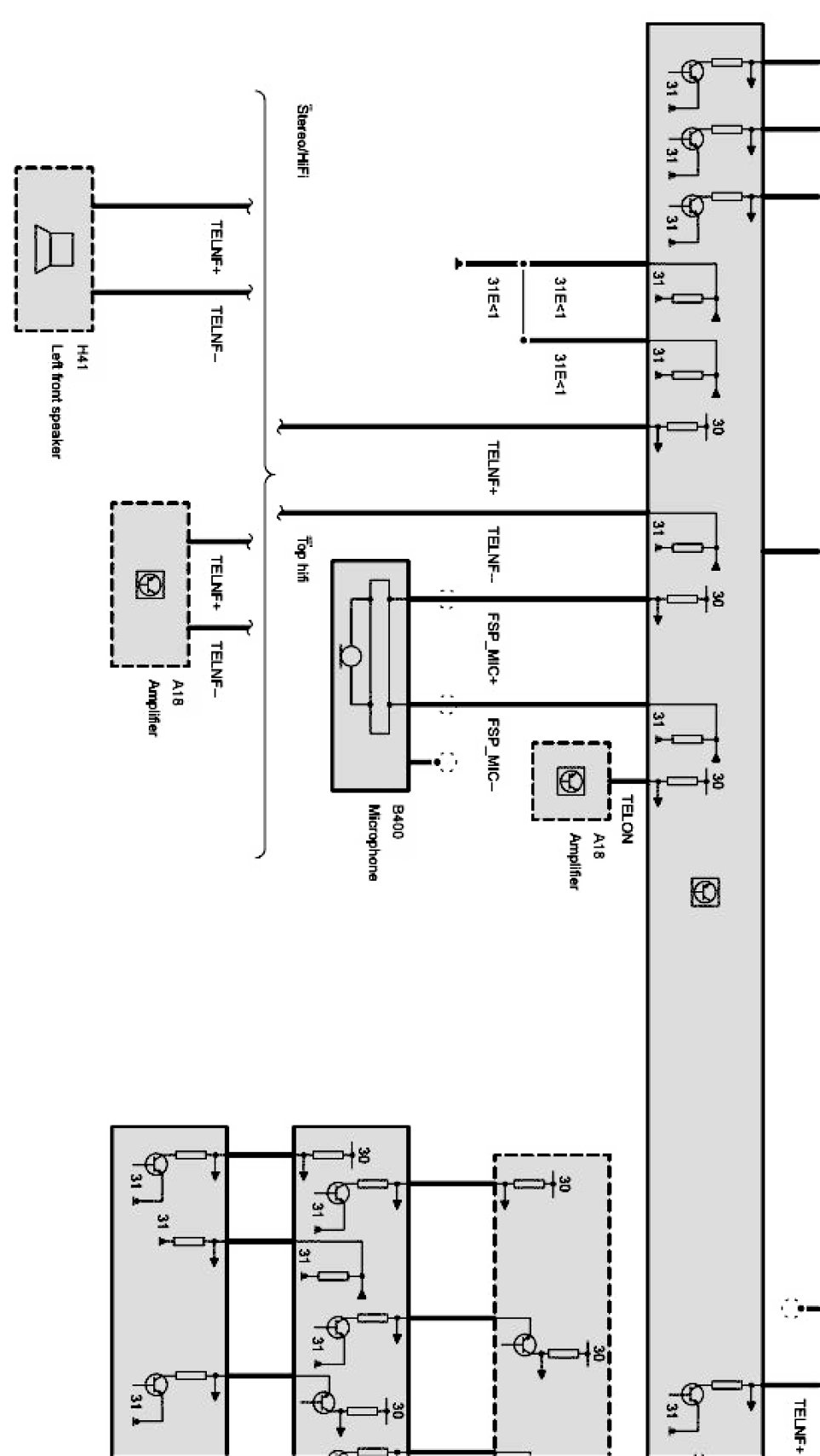

E53 Telephone Part 6 Of 6:
