X5 3.0i (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
Top HiFi System (Harman&Kardon)
>>
Speaker, Woofer, Front Left
>>
Left Front Speaker W/ Telephone (SES Language-Input System Up to 09/00)
Left Front Speaker W/ Telephone (SES Language-Input System Up to 09/00)

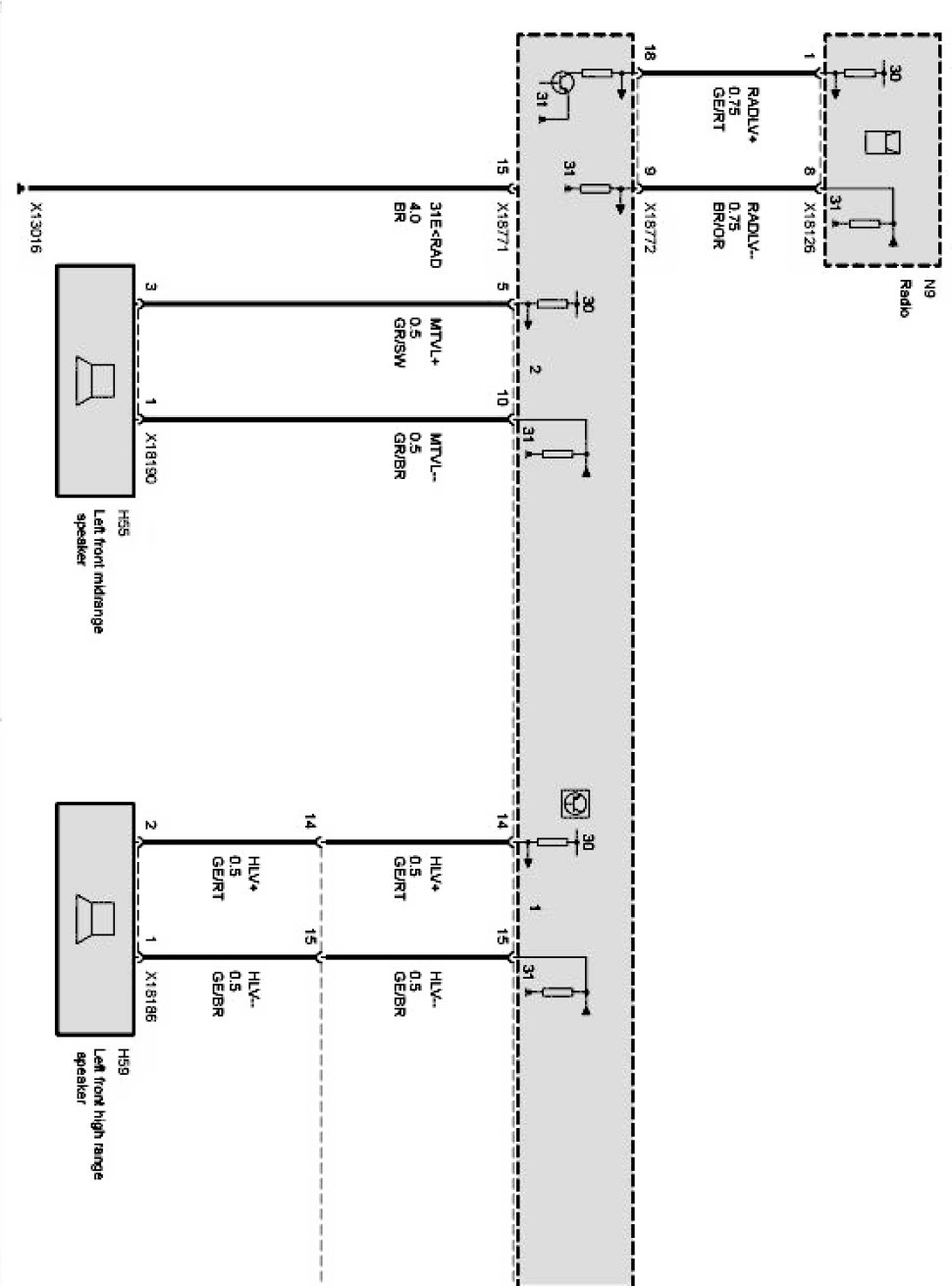

E53 Left front speaker with telephone Part 1 Of 2:

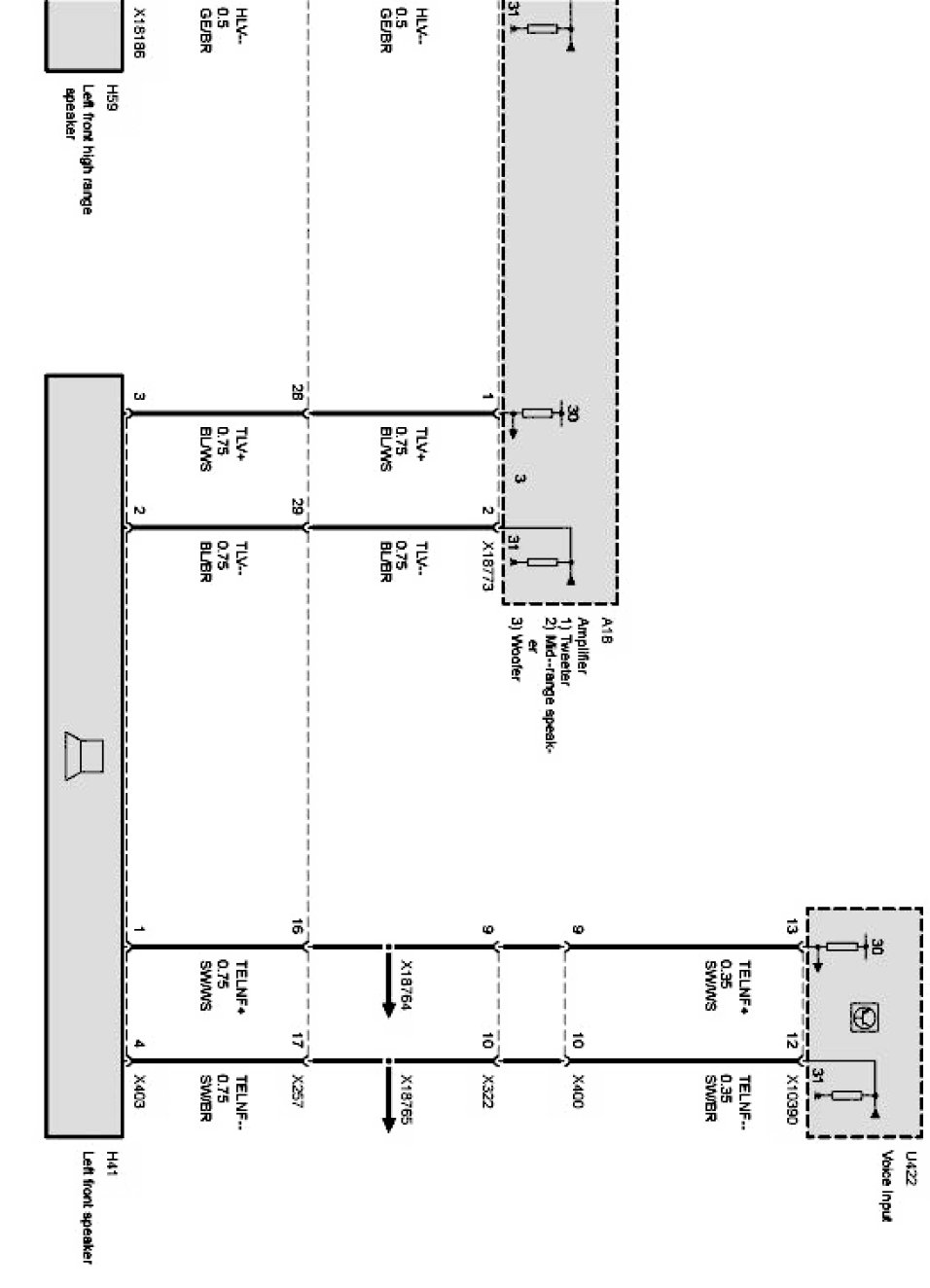

E53 Left front speaker with telephone Part 2 Of 2:
