Fnt Loudspkr W/O Telphn (W/O TEL Telphn Interface W/O BIT Basis Interface Telphn W/O BM on-Board Monitor 09/00 Up to 09/01)

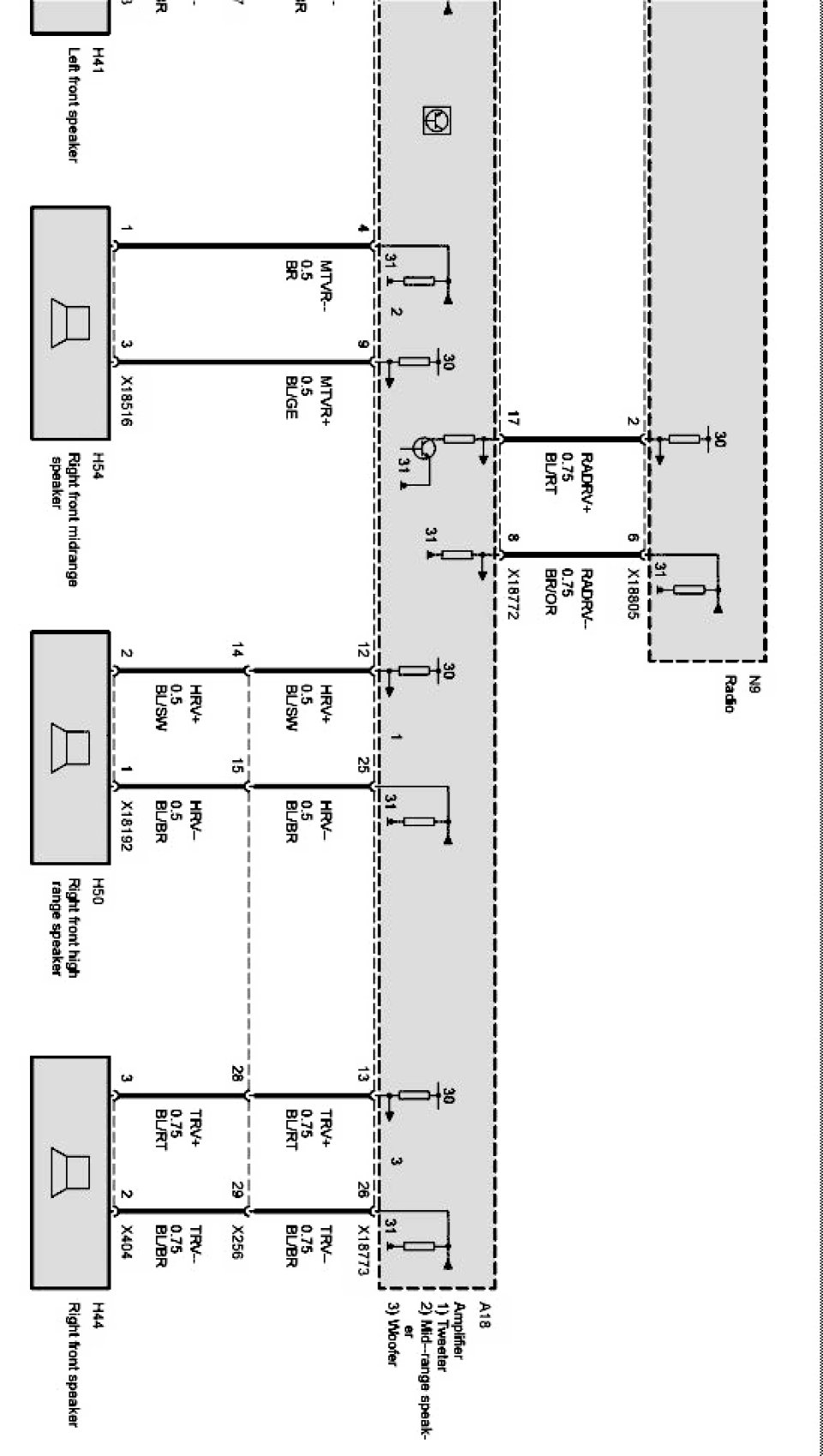

E53 Front loudspeaker without telephone Part 1 Of 2:

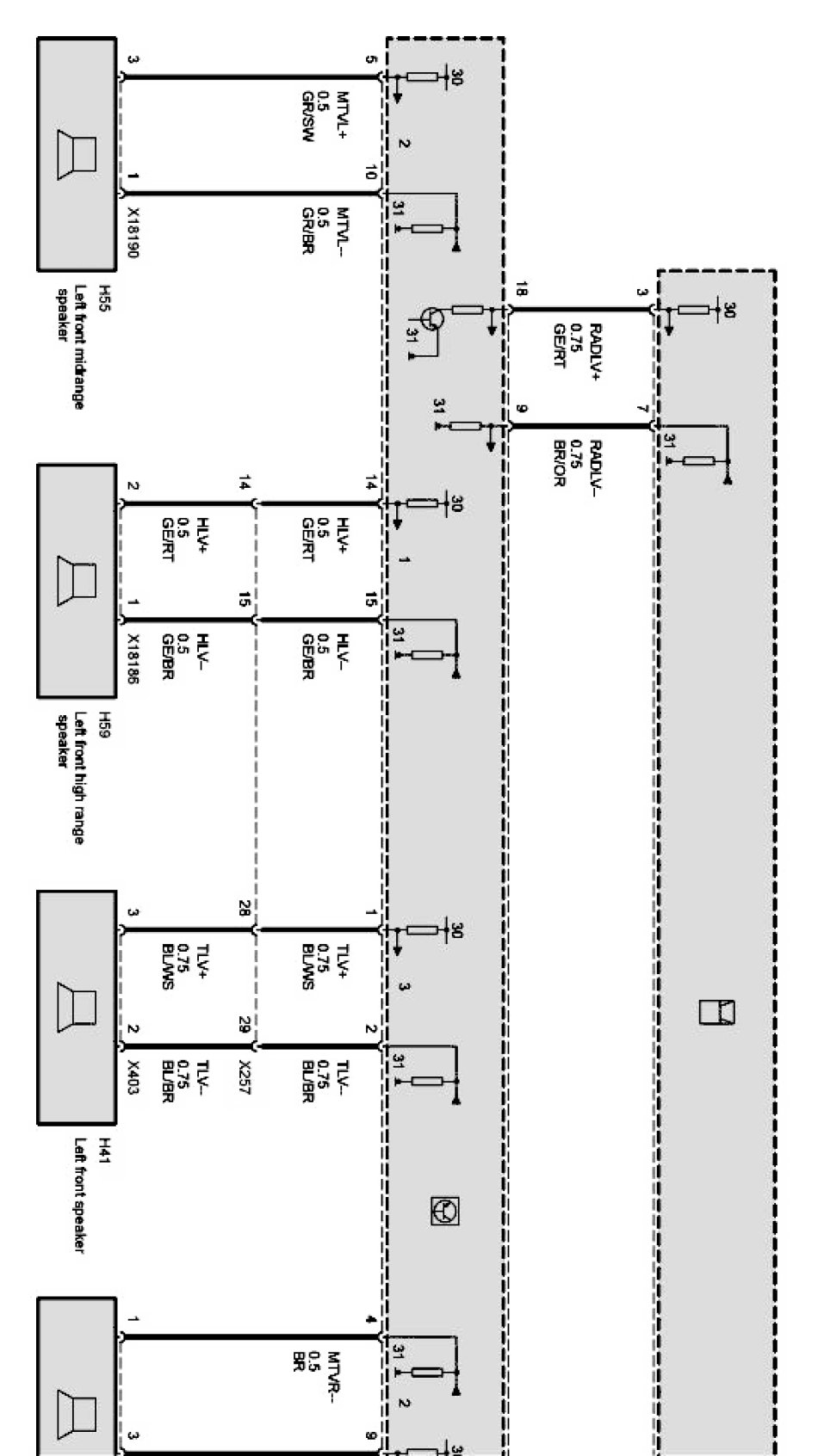

E53 Front loudspeaker without telephone Part 2 Of 2:
