Home >> BMW >> 2001 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> Top HiFi System (Harman&Kardon) >> Speaker Mid-Range Speaker, Front Left >> Lft Frnt Spkr W/ Telephone ((Cell Phone, Siemens (S10) or Nokia (3110)) W/O SES Language-Input Sys Up to 09/00)

Lft Frnt Spkr W/ Telephone ((Cell Phone, Siemens (S10) or Nokia (3110)) W/O SES Language-Input Sys Up to 09/00)

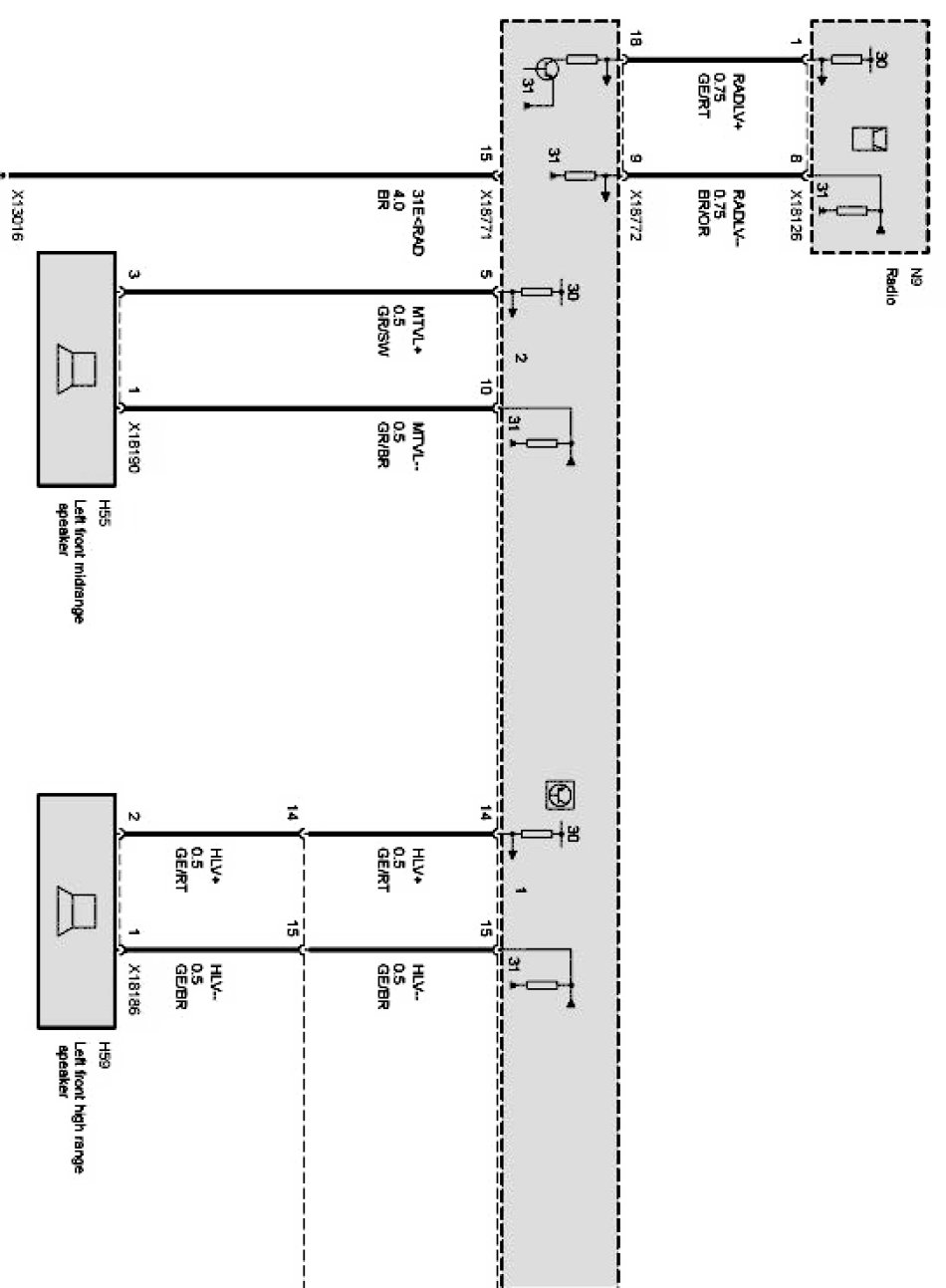

E53 Left front speaker with telephone Part 1 Of 1:

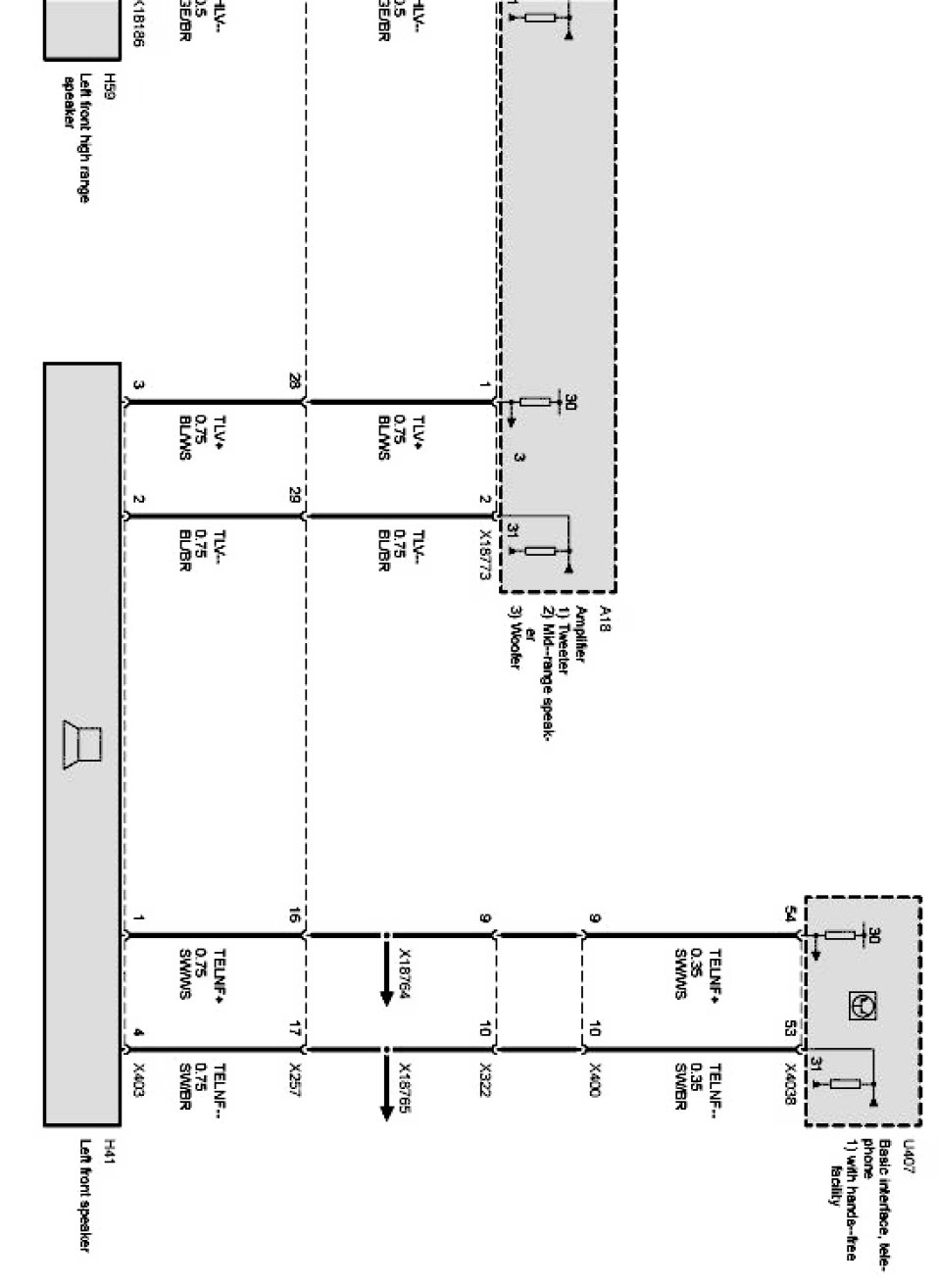

E53 Left front speaker with telephone Part 2 Of 2:
